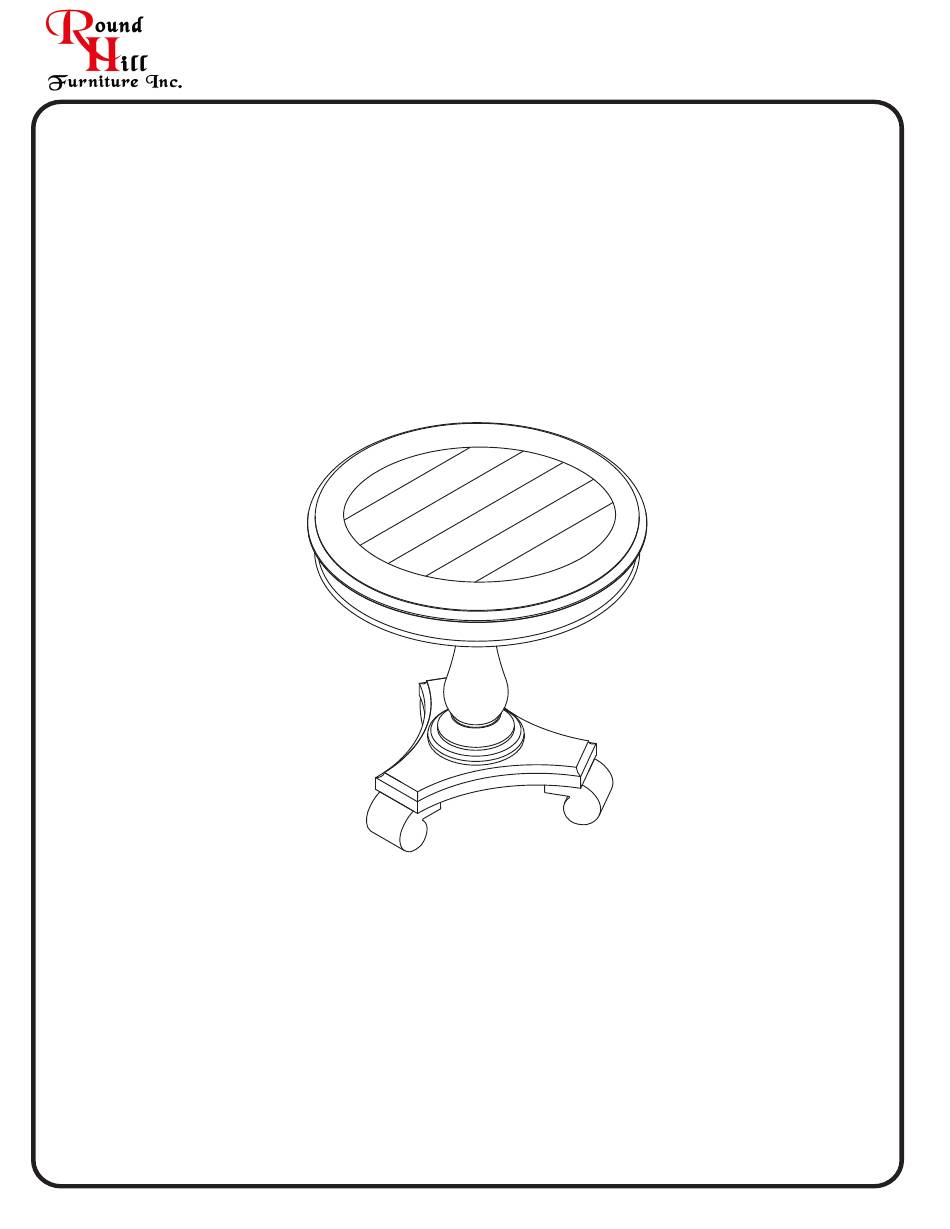

- Page 1 OE0024 ASSEMBLY INSTRUCTIONS www.roundhillfurniture.com 1 OF 6...
- Page 2 (1) Top Panel (1 PC) (2) Connection Panel (1 PC) (3) Post (1 PC) (4) Base Panel (1 PC) (5) Foot Pad (3 PCS) 2 OF 6 www.roundhillfurniture.com...
- Page 3 ound urniture HARDWARE LIST DESCRIPTION SIZE SKETCH ∅ 5/16"*35mm BOLT 10PCS 13PCS ∅ 5/16"*35mm FLAT WASHER 13PCS ∅ LOCK WASHER 5/16"*35mm ALLEN KEY 3PCS ∅ 5/16"*45mm BOLT 3 OF 6 www.roundhillfurniture.com...
- Page 4 STEP 1: Attach Connection Panel (2) to Post (3) using three Flat Washers (B), three Spring Washers (C) and three Bolts (A). TIGHTEN ALL BOLTS USING WRENCH (D). STEP 2: Attach Connection Panel (2) to Top Panel (1) using four Flat Washers (B), four Spring Washers (C) and four Bolts (A). TIGHTEN ALL BOLTS USING WRENCH (D).
- Page 5 ound nc . urni t ure www.roundhillfurniture.com 5 OF 6...
- Page 6 STEP 5: Adjust levelers to level table. 6 OF 6 www.roundhillfurniture.com...
