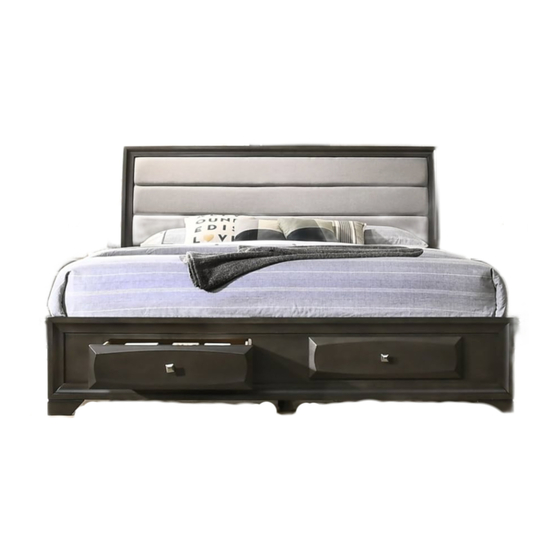

Summary of Contents for Round Hill Furniture B138NQ
Page 1

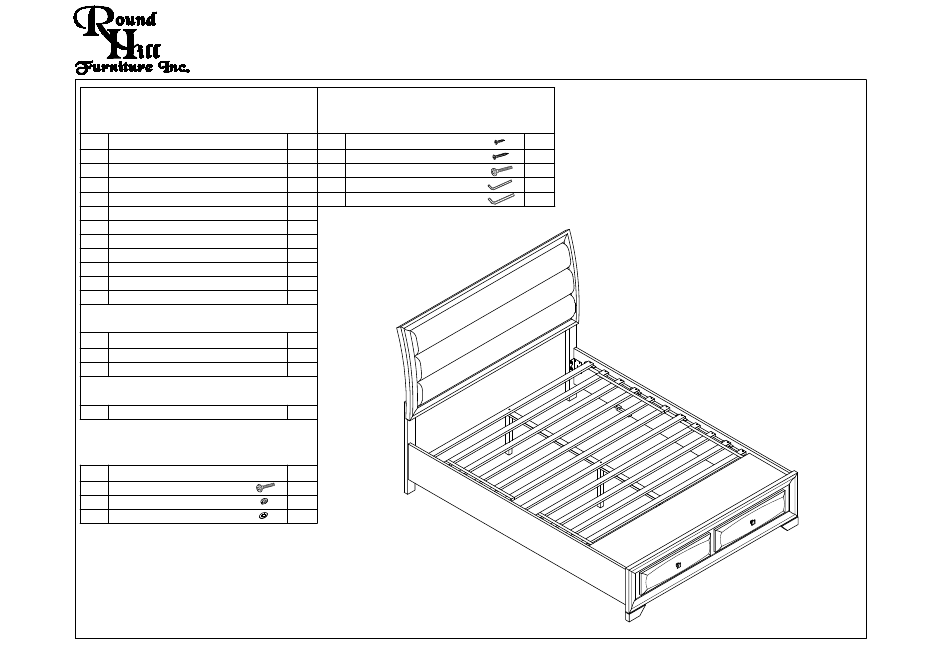

ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED Part List Pack In Headboard & Hardware List Pack In Headboard Footboard &Footboard Descriptions Qty. CSK M4 x 16mm CSK M4 x 32mm Headboard Panel JCBC Screw M6 x 50mm Headboard Leg Left (L)
Page 2
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 1.1: Align and fasten Headboard Leg (B) & (C) to Headboard Panel (A) using JCBC M6 x 30mm (1), Spring Washer Ø "(2) and Flat Washer Ø " x 13mm (3) and tighten with L Key M4 (7).
Page 3
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 2 : Attach the Side Rail (L) to Headboard Leg. Tighten SCREW on Headboard Leg by using L KEY M5 (8) & repeat the same step on Footboard (D). STEP 2 www.roundhillfurniture.com...
Page 4
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 3 : Attach the Drawer Slat (F) each to a Drawer Slat Support (G) and fix with Drawer Slat Support Stopper (H). STEP 4 : Fix the Drawer Slat (F) to Side Rail (L) with CSK M4 x 32mm (5).
Page 5
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 6 : Insert Drawer (N) to Footboard (D) until completely closed. STEP 7 : Tighten 'T' Runner at Footboard (D) to Drawer Slat (F) with CSK M4 x 16mm (4). STEP 8 : If Drawer (N) does not close properly,adjust the adjuster at the bottom of Drawer Slat Support (G) up or down until the Drawer (N) closes tightly.
Page 6
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 9 : Attach the Center Slat With 3 Holes (M), Bed Slat 3 Holes (I) to Bed Slat Support (K).Tighten with JCBC M6 x 50mm (6) by using L KEY M4 (7).
Page 7
ASSEMBLY INSTRUCTION ITEM NO. B138NQ-QUEEN SIZE BED STEP 12 : Attach the Slat Cover (E) to top Bed Slat (I & J) . STEP 13 : Close the distance Slat Cover (E) to Footboard (D).Tighten Slat Cover (E) to Wood at Footboard (4) with CSK M4 x 16mm (4).
