- 1 STEP 2: Attach the Side Rail (L) to Headboard Leg
- 2 STEP 4: Fix the Drawer Slat (F) to Side Rail (L)
- 3 STEP 5: Move 'T' Runner at Footboard (D) to Drawer Slat (F)
- 4 STEP 7: Tighten 'T' Runner at Footboard (D) to Drawer Slat (F)
- 5 STEP 11: Attach Bed Slat 3 Holes (I) & Bed Slat 2 Holes (J)
- 6 STEP 12: Attach the Slat Cover (E) to Top Bed Slat (I & J)
- 7 STEP 13: Close the Distance Slat Cover (E) to Footboard (D)
- Download this manual
Part List Pack In Headboard &
Footboard
NO.
Descriptions
A
Headboard Panel
B
Headboard Leg Left (L)
C
Headboard Leg Right (R)
D
Footboard
E
Slat Cover
Drawer Slat
F
Drawer Slat Support
G
Drawer Slat Stopper
H
Bed Slat 3 Holes
I
Bed Slat 2 Holes
J
Bed Slat Support
K
Part List Pack In Side Rail
NO.
Descriptions
Side Rail
L
Center Slat With Slat 3 Holes
M
Part List Pack In Side Rail
Drawer
N
Hardware List Pack In Headboard
&Footboard
NO.
Descriptions
1
JCBC Screw M6 x 30mm
2
Spring Washer Ø 1/4"
3
Flat Washer Ø 1/4" x 13mm
ASSEMBLY INSTRUCTION
ITEM NO. B138K-KING SIZE BED
Hardware List Pack In Headboard
&Footboard
Qty.
CSK M4 x 16mm
4
5
CSK M4 x 32mm
1
JCBC Screw M6 x 50mm
1
6
1
L Key M4
7
L Key M5
1
8
1
1
1
1
3
10
3
Qty.
2
1
2
Qty.
6
6
6
Page 1 of 7
7
30
3
1
1
www.roundhillfurniture.com
Advertisement
Table of Contents
Related Manuals for Round Hill Furniture B138K
Summary of Contents for Round Hill Furniture B138K

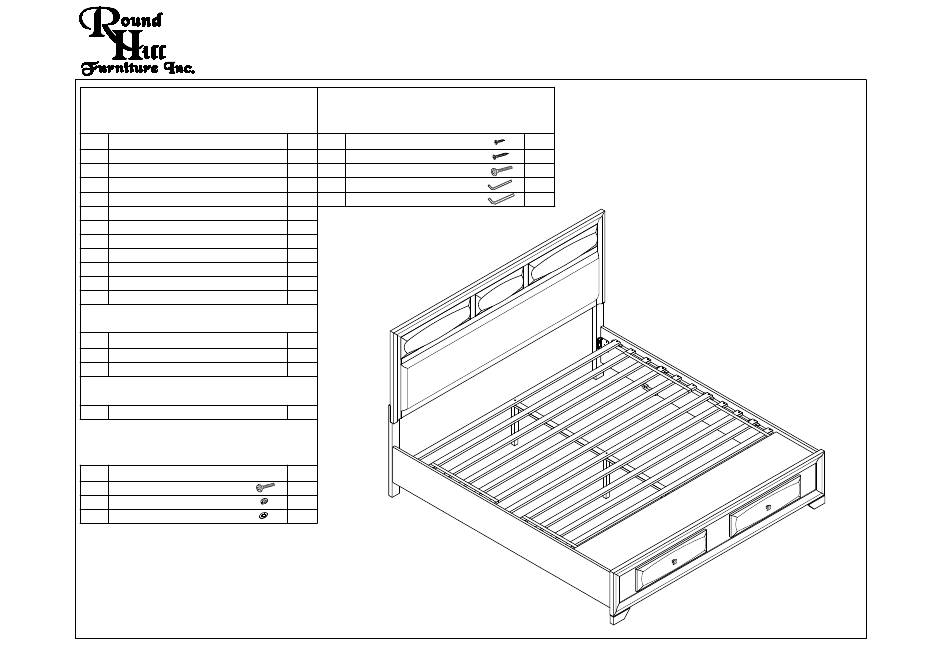

- Page 1 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED Part List Pack In Headboard & Hardware List Pack In Headboard Footboard &Footboard Descriptions Qty. CSK M4 x 16mm CSK M4 x 32mm Headboard Panel JCBC Screw M6 x 50mm Headboard Leg Left (L)
- Page 2 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 1.1: Align and fasten Headboard Leg (B) & (C) to Headboard Panel (A) using JCBC M6 x 30mm (1), Spring Washer Ø "(2) and Flat Washer Ø " x 13mm (3) and tighten with L Key M4 (7).
- Page 3 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 2 : Attach the Side Rail (L) to Headboard Leg. Tighten SCREW on Headboard Leg by using L KEY M5 (8) & repeat the same step on Footboard (D). STEP 2 www.roundhillfurniture.com...
- Page 4 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 3 : Attach the Drawer Slat (F) each to a Drawer Slat Support (G) and fix with Drawer Slat Support Stopper (H). STEP 4 : Fix the Drawer Slat (F) to Side Rail (L) with CSK M4 x 32mm (5).
- Page 5 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 6 : Insert Drawer (N) to Footboard (D) until completely closed. STEP 7 : Tighten 'T' Runner at Footboard (D) to Drawer Slat (F) with CSK M4 x 16mm (4). STEP 8 : If Drawer (N) does not close properly,adjust the adjuster at the bottom of Drawer Slat Support (G) up or down until the Drawer (N) closes tightly.
- Page 6 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 9 : Attach the Center Slat With 3 Holes (M), Bed Slat 3 Holes (I) to Bed Slat Support (K).Tighten with JCBC M6 x 50mm (6) by using L KEY M4 (7).
- Page 7 ASSEMBLY INSTRUCTION ITEM NO. B138K-KING SIZE BED STEP 12 : Attach the Slat Cover (E) to top Bed Slat (I & J) . STEP 13 : Close the distance Slat Cover (E) to Footboard (D).Tighten Slat Cover (E) to Wood at Footboard (4) with CSK M4 x 16mm (4).
