Replacing elbow on models 704 and 707

Swivel

Elbow

We recommend removing the old swivel before ordering any parts in case there is

internal corrosion. Spray internally with a penetrating oil to break down any corrosion.

TOOLS REQUIRED:

ALLEN WRENCH OR HEX SCREWDRIVER

PLIERS

Locate the opening in the hose reel spool revealing

the Hex Screw.

Use an Allen Wrench or Hex Screwdriver to remove the HEX SCREW.

Use Pliers to unscrew the swivel from the elbow connector inside of the

drum. DO NOT HOLD THE SQUARE SWIVEL HEAD as it is designed to

turn. Hold the swivel shaft stationary and turn the reel with your right hand

to unthread the swivel.

Note: If your original swivel is aluminum, please

continue with instructions below to Step 4.

If your hose reel has a brass swivel, remove the elbow

from the opening of the drum. Install new elbow and attach swivel.

Remove crank handle bolt and remove crank arm.

Questions? Please contact us at customerservice@libertygardenproducts.com

Crank handle

Need help?

Do you have a question about the 704 and is the answer not in the manual?

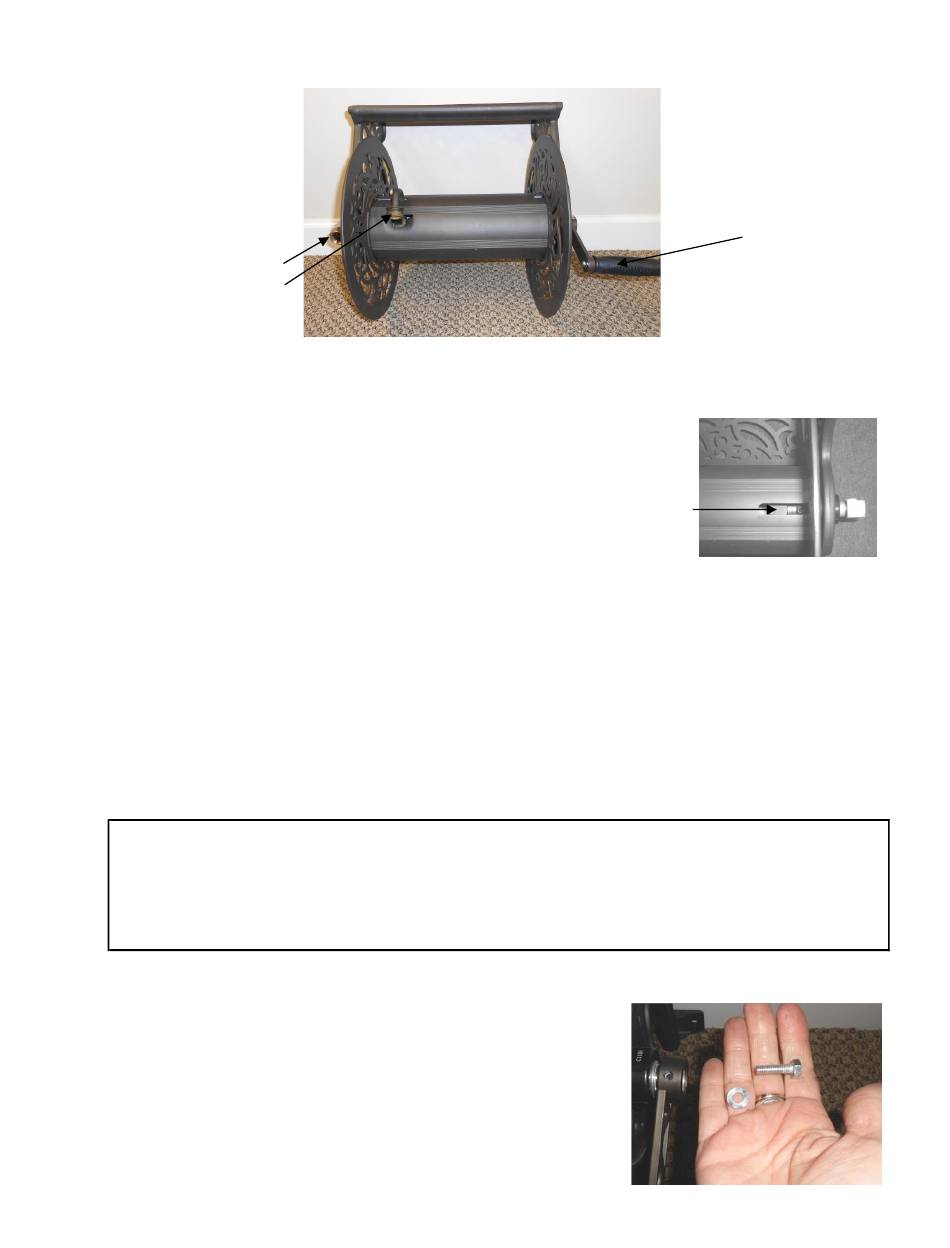

Page 1 Replacing elbow on models 704 and 707 Crank handle Swivel Elbow We recommend removing the old swivel before ordering any parts in case there is internal corrosion. Spray internally with a penetrating oil to break down any corrosion. TOOLS REQUIRED:...
Page 2 Replacing elbow on models 704 and 707 Loosen the internal hex screw on crank handle side. **DO NOT REMOVE THIS HEX SCREW** Loosen black plastic bushing and remove the crank handle shaft. The reel should now be easily removed from the frame.
