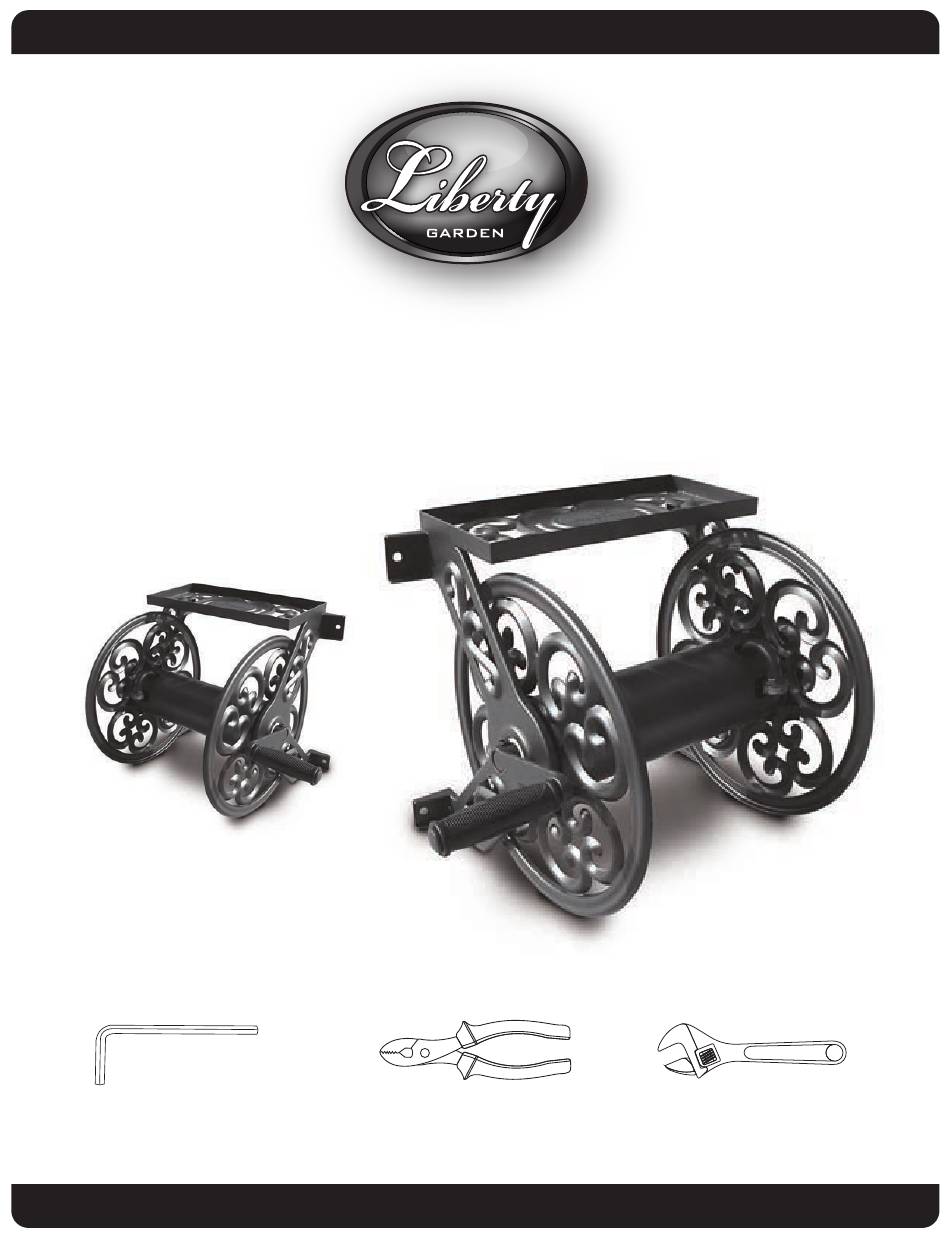

- Page 1 ™ Handle Reversal on the Model 708 Decorative Hose Reel TOOLS REQUIRED: Allen wrench Pliers Adjustable wrench Estimated Assembly Time : 5 Minutes...
- Page 2 Reversing the Hose Spool Step 1: Remove Handle Use the Allen wrench to loosen and remove the Allen screw and handle. Step 2: Remove Swivel Use a pair of pliers or adjustable wrench to loosen and remove the swivel and plastic spacers. NOTE: Thicker portion of the spacers always goes to the outside of the hose reel.
- Page 3 Reversing the Hose Spool Step 3: Removing Hose Spool Using pressure from your fingers push in on the spool end and pry the hose reel frame slightly apart until spool is removed. (CAUTION: Do not pry use a prybar or large screwdriver to separate. This will damage and possible bend the hose reel frame.) Step 4: Reversing the Hose Spool Reverse the plastic spacers on the opposite ends of the hose reel.
- Page 4 Reversing the Hose Spool Step 6: Replacing handle Slide the plastic spacer on spool shaft then attach handle. Align the holes on the spool end with the handle and insert Allen screw. Tighten down handle with Allen wrench. NOTE: Garden hose will have to roll up in the opposite direction.
