Summary of Contents for Liberty Garden NAVIGATOR 714

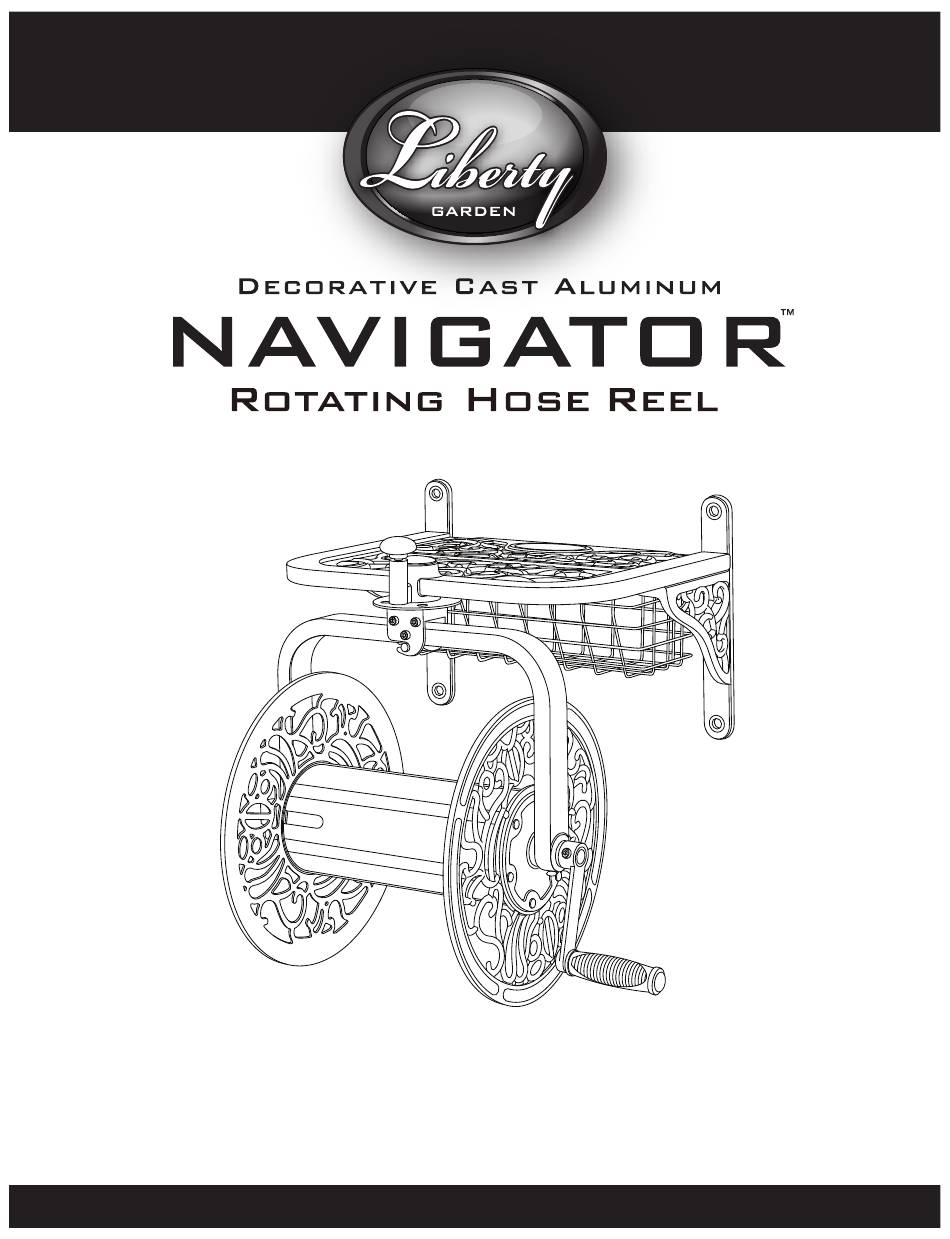

- Page 1 Owner’s Manual VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM OR CALL US TOLL FREE AT 1-866-820-5805, MONDAY - FRIDAY 9 A.M. - 5 P.M. EST LIBERTY GARDEN PRODUCTS, INC. 1161 SOUTH PARK DRIVE, KERNERSVILLE NC 27284 IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING...
-
Page 2: Pre-Assembly
F. Hose Coupling Adapter IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805 OR CUSTOMERSERVICE@LIBERTYGARDENPRODUCTS.COM. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM, FOR MORE... -
Page 3: Installation
INSTALLATION This hose reel must be mounted to a solid masonry wall or to wall studs TIP: Remember to use the correct size and quantity of hardware to properly support the 1. BRICK OR MASONRY ANCHOR SLEEVES total weight of the unit. A standard 100' length of garden hose weighs approximately 15 lbs. Filled with water, the additional weight can exceed 20 lbs. - Page 4 ASSEMBLY Flip base shelf (C) over and align basket (E) for assembly. FIGURE 1 Insert four allen screws (DD) in basket (E) and base shelf (C) as shown. Using supplied allen wrench (AA), tighten the allen screws. CAUTION: DO NOT OVER TIGHTEN ALLEN SCREWS FIGURE 2 Flip the base and basket assembly...
- Page 5 ASSEMBLY Attach the hose reel (D) to the base shelf Line up the holes in the hose reel (D) with (C) by hanging the reel on the small slot the base shelf (C) and insert long Allen located at the front of the base. bolts (BB).
- Page 6 ASSEMBLY Align the holes in the crank handle (A) with the crank handle shaft on the hose reel (D). Insert the short Allen screw (DD) into the crank handle and tighten with supplied Allen wrench (AA). FIGURE 7 Attach leader hose (B) to swivel connector on the hose reel (D).
- Page 7 OPERATING INSTRUCTIONS FIGURE 1 Pull up on handle knob located on the base shelf (C) then rotate hose reel (D) to one of the eight locking positions. Pull up on the handle knob located on the base shelf (C) and turn the locking pin to the up position. The 714 rotating hose reel will now turn a full 360 degrees.
- Page 8 OPERATING INSTRUCTIONS Lift the hinged lid on the 714 cast aluminum hose reel located on the base shelf. (C) Use the basket to store garden tools and accessories. FIGURE 5 NOTE Lubricate pull up pin seasonally with spray or lubricating oil. NOTE It is recommended that the hose reel (D) be taken off and stored indoors or sealed...
-
Page 9: Care Instructions
1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel. 2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new hose washer or obtain one at any hardware store. - Page 10 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
- Page 11 Guilford County, North Carolina, and both parties expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such actions. ™ “Liberty” is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2020 Updated 9/1/2020 Updated 9/17/2013...
