5 in 1 Gauge
• The gauge's 5 measuring gauges include drill point gauge, chisel angle gauge, router bit gauge, depth
gauge, height gauge, and an alternate method to accurately measure heights.

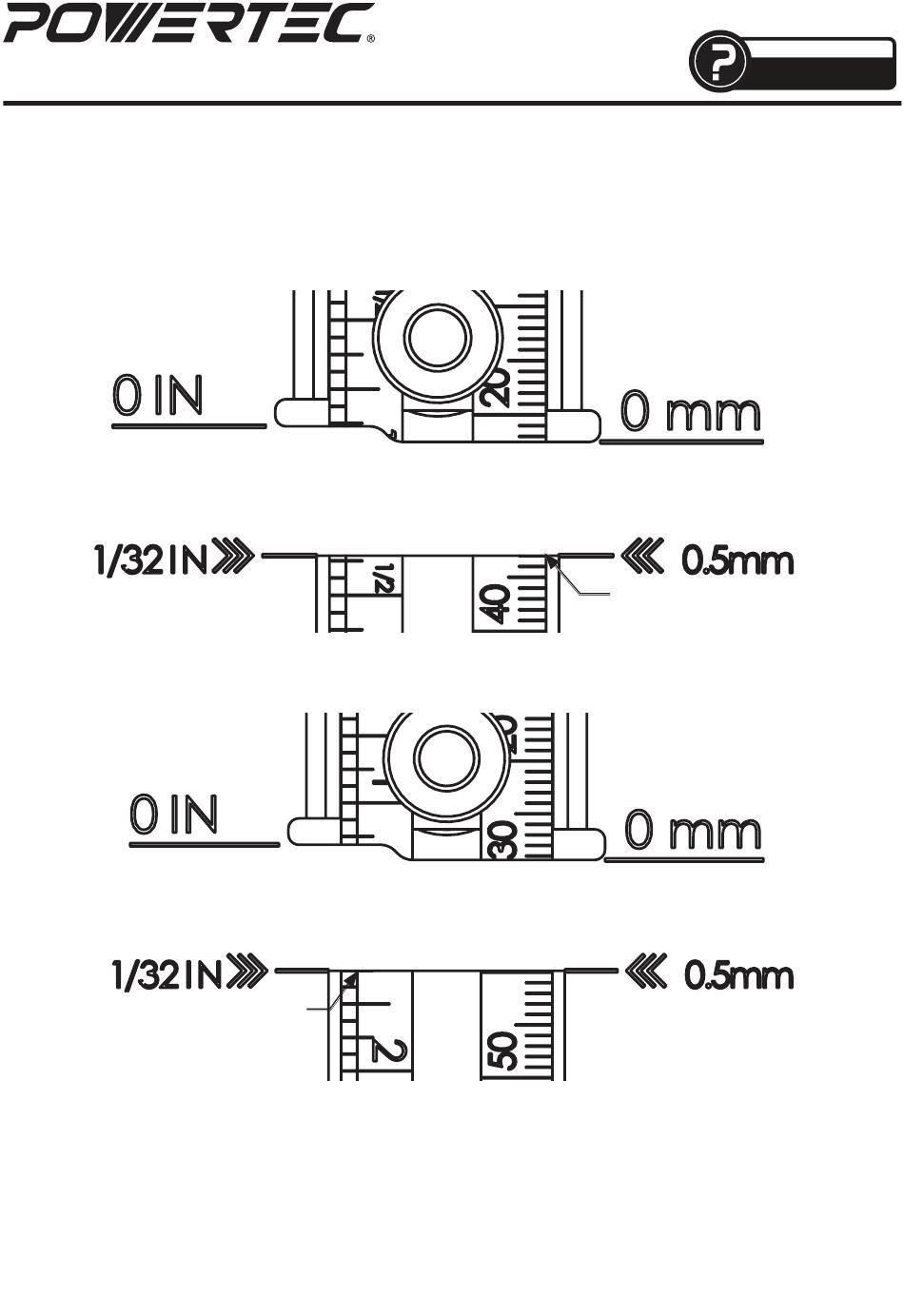

• Use the Vernier caliper concept to get an accurate reading within 0.5 mm on the metric scale or 1/32" on
the Imperial scale.
In the following metric example, if the upper ruler line is greater than 22 mm and the lower 0.5 mm scale line
aligns with a ruler line, the measurement will be 0.5 mm greater. In this example the reading is 22.5 mm.
In the following Imperial example, if the upper ruler line is greater than 1-1/8" and the lower 1/32" scale line
aligns with a ruler line, the measurement will be 1/32" greater. In this example the reading is 1-5/32" (1-
1/8"+1/32" = 1-5/32").
1-5/32"
Model No. 80023
QUESTION...
1•847•780•6120
22.5 mm
Advertisement
Related Manuals for PowerTec 80023
Summary of Contents for PowerTec 80023
- Page 1 Model No. 80023 QUESTION... 5 in 1 Gauge 1•847•780•6120 • The gauge's 5 measuring gauges include drill point gauge, chisel angle gauge, router bit gauge, depth gauge, height gauge, and an alternate method to accurately measure heights. • Use the Vernier caliper concept to get an accurate reading within 0.5 mm on the metric scale or 1/32" on the Imperial scale.
- Page 2 USAGE Use the depth gauge to check the depth of grooves or holes Use the drill point gauges (82, 98, 118 and 136°) to properly sharpen bits Accurately set the depth of router bits, use the router bit guage Use the chisel angle gauges to check chisel angles (25, 30, 40 and 60°)
