Ronco EZ-Store ST5250RDGEN Quick Setup Manual

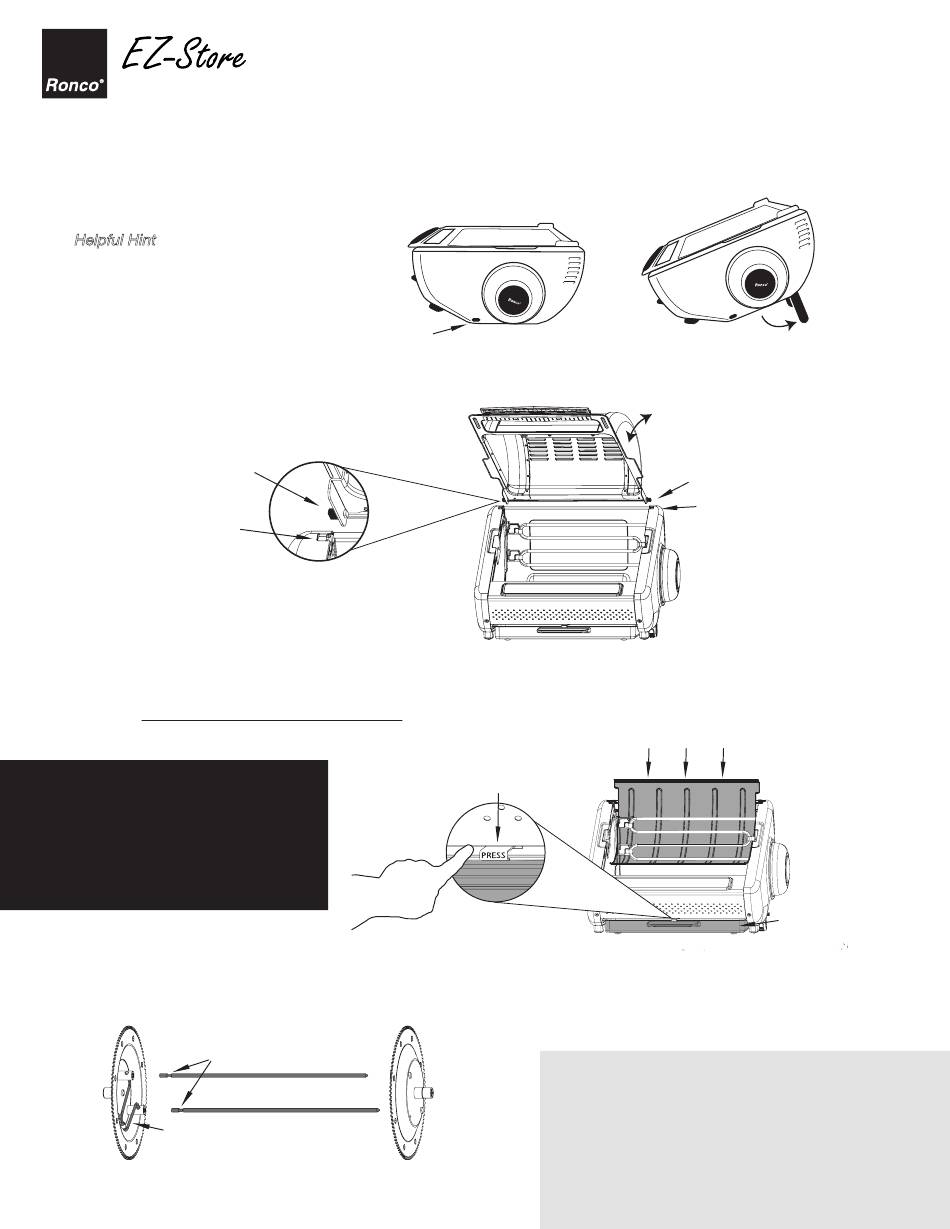

QUICK SET-UP GUIDE
1. REMOVE PACKING TAPE: After you've unpacked your Rotisserie make sure you've removed all of the packing tape
used to secure the Rotisserie during shipment.
2. DEPLOY REAR LEGS: The legs can be extended by pushing the small RELEASE BUTTON located on the right side of
the Rotisserie. You will need to tilt the Rotisserie towards you so the legs can fully extend.
Helpful Hint -For your safety,
the Rotisserie will only power on
if the legs are in the UP-RIGHT
position AND the DRIP TRAY
is properly inserted.
3. INSTALL GLASS LID/TOP: The lid comes packed and nested for storage. To assemble, turn lid right-side-up and insert
the LID PINS into the PIVOT HOLES in the Rotisserie base as shown. You can now close the lid.
Lid Pins
Pivot Holes
4. PROPER DRIP TRAY & HEAT SHIELD INSTALLATION: The DRIP TRAY must be properly inserted and in place before
the Rotisserie will power on. After each use, PRESS the DRIP TRAY LATCH down to remove tray and empty grease.
Never operate without the HEAT SHIELD in place behind the heating element. To access the HEAT SHIELD for
cleaning, you must first remove the GLASS LID. Then slide the HEAT SHIELD out from the top of the Rotisserie.
IMPORTANT:
For your safety, the Rotisserie will
only power ON if the legs are in
the UP-RIGHT position AND the
DRIP TRAY is properly inserted.
5. SPIT ROD ASSEMBLY: One end of the spit rod is held in place by a WIRE CLIP installed on Gear Wheel A. Insert the
notched end of the SPIT ROD into Gear Wheel A while squeezing the WIRE CLIP together. The SPIT ROD is secure
when the WIRE CLIP snaps into the notch. Repeat with second SPIT ROD. Insert pointed ends of SPIT RODS into
Gear Wheel B. Place SPIT ROD ASSEMBLY inside the Rotisserie base.
Notched End of Spit Rod
A
Wire Clip
6. START COOKING: See instruction manual for detailed instructions
and reference page 17 for cook times.
Rotisserie
TM
Release Button
STORAGE POSITION
Drip Tray Latch
B
Customer Care
Should you ever require assistance from our Customer
Care Department, we suggest that you call us (any time
M-F 8:30 - 5:30 CST) 1-855-85-RONCO (76626), email
product concerns to support@ronco.com, or visit our
support site on line at http://support.ronco.com.
Copyright ©2013 by Ronco Holdings, Inc. All Rights Reserved. 0313 5250 Series
UP-RIGHT POSITION
Lid Pins
Pivot Holes
Install Heat Shield
Removable Drip Tray
