Section -2 Setting Up
The RP-3 provides you with a Cabinet Emulator for running direct to a mixing board.
A set-up such as this, will give you the ability to run directly to the mixing/recording board. To help ensure great recording tones, use the
Speaker Cabinet emulator that is located in the RP-3. The first thing you will want to do when using this set-up is, first run into the Input of the
RP-3. Then run out of both of the Outputs into 2 inputs on the mixing board and pan each channel hard left and hard right. Now to use the
Cabinet emulator, simply press the <Edit> button and then use the Parameter select buttons to move you through the Effects matrix until you
reach the Cabinet emulator effect. The Parameter select buttons and the Value buttons will help you fine-tune the Cabinet emulator.
6
Right Output
Input
Left Output
4 6 4 6 4 6 4 6 4 6 4 6 4 6 4 6
2 8 2 8 2 8 2 8 2 8 2 8 2 8 2 8
0 Aux 1 10 0 Aux 1 10 0 Aux 1 10 0 Aux 1 10 0 Aux 1 10 0 Aux 1 10 0 Aux 1 10 0 Aux 1 10
4 6 4 6 4 6 4 6 4 6 4 6 4 6 4 6
2 8 2 8 2 8 2 8 2 8 2 8 2 8 2 8
0 Aux 2 10 0 Aux 2 10 0 Aux 2 10 0 Aux 2 10 0 Aux 2 10 0 Aux 2 10 0 Aux 2 10 0 Aux 2 10
0 0 0 0 0 0 0 0
-1 +1 -1 +1 -1 +1 -1 +1 -1 +1 -1 +1 -1 +1 -1 +1
-2 +2 -2 +2 -2 +2 -2 +2 -2 +2 -2 +2 -2 +2 -2 +2
-3 +3 -3 +3 -3 +3 -3 +3 -3 +3 -3 +3 -3 +3 -3 +3
-4 +4 -4 +4 -4 +4 -4 +4 -4 +4 -4 +4 -4 +4 -4 +4
-5 Pan +5 -5 Pan +5 -5 Pan +5 -5 Pan +5 -5 Pan +5 -5 Pan +5 -5 Pan +5 -5 Pan +5
Mute Mute Mute Mute Mute Mute Mute Mute
L / R L / R L / R L / R L / R L / R L / R L / R
+10 +10 +10 +10 +10 +10 +10 +10
+5 +5 +5 +5 +5 +5 +5 +5
0 0 0 0 0 0 0 0
-5 -5 -5 -5 -5 -5 -5 -5
-10 -10 -10 -10 -10 -10 -10 -10
-20 -20 -20 -20 -20 -20 -20 -20
-30 -30 -30 -30 -30 -30 -30 -30
- - - - - - - -
1 2 3 4 5 6 7 8

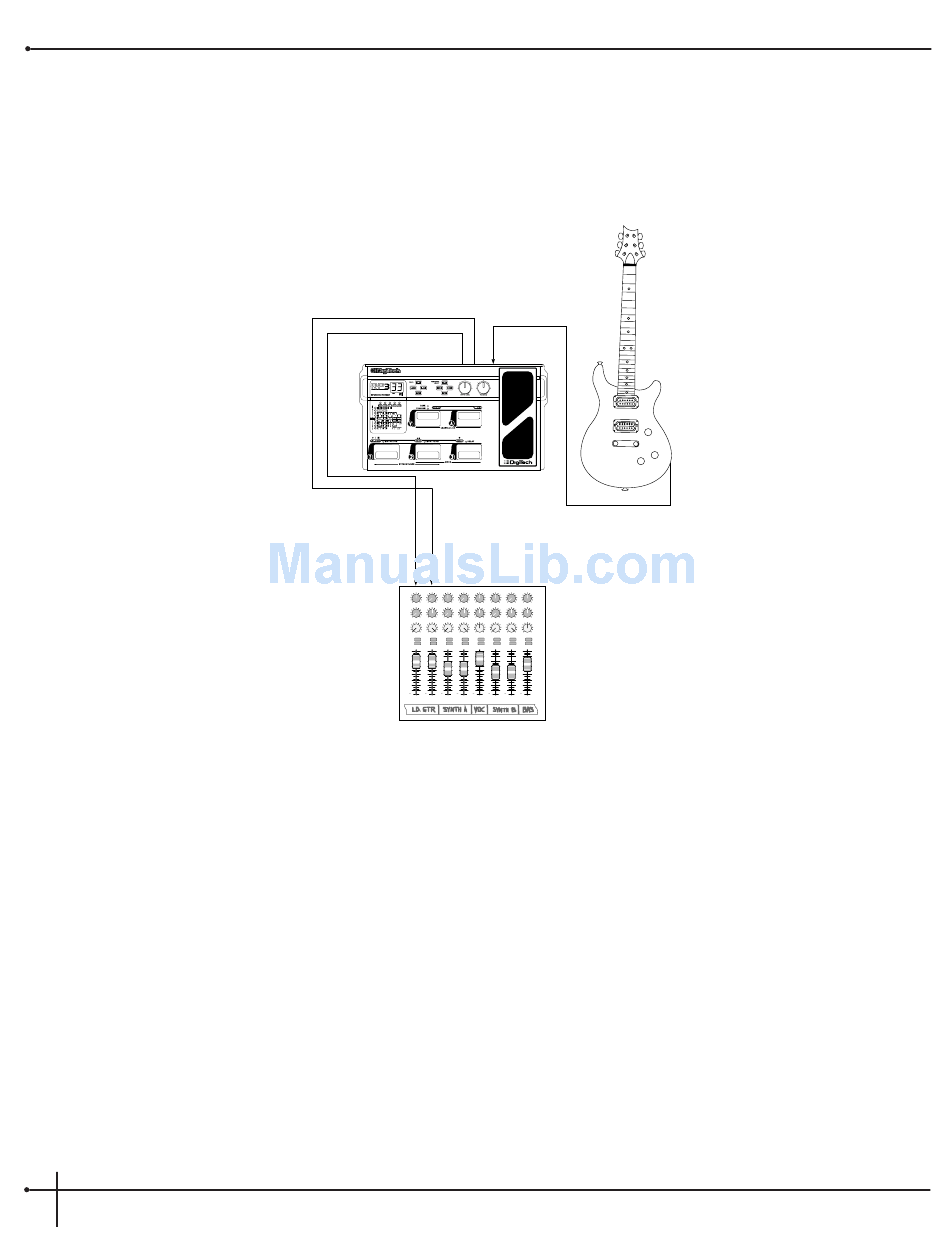

Running Direct into a Mixer
RP-3
User Guide
