Jain Technology XONIC 100P User Manual

Clamp-on ultrasonic portable flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Industrial & Defense Instruments
®
X
100P
ONIC
C
-O
LAMP
N
U
LTRASONIC
User's Manual
2021
www.jain.co.kr
P
ORTABLE
Tel. 82-2-856-4114 Fax. 82-2-856-9503
F
LOWMETER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XONIC 100P and is the answer not in the manual?

Questions and answers

Related Manuals for Jain Technology XONIC 100P

Summary of Contents for Jain Technology XONIC 100P

  • Page 1 Industrial & Defense Instruments ® 100P ONIC LAMP LTRASONIC ORTABLE LOWMETER User’s Manual 2021 www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...

  • Page 2: Table Of Contents

    Xonic 100P, 2020 Table of Contents Delivery Items Preview Introduction Safety Consideration Installation Steps Specifications Key Functions Understanding Display Best Transducer Installation Place Section 1. General SYSTEM LOCK SITE NAME APPLICATION FLANGE SET Section 2. CH SELECT Section 3. PIPE Data Section 4.

  • Page 3: Delivery Items

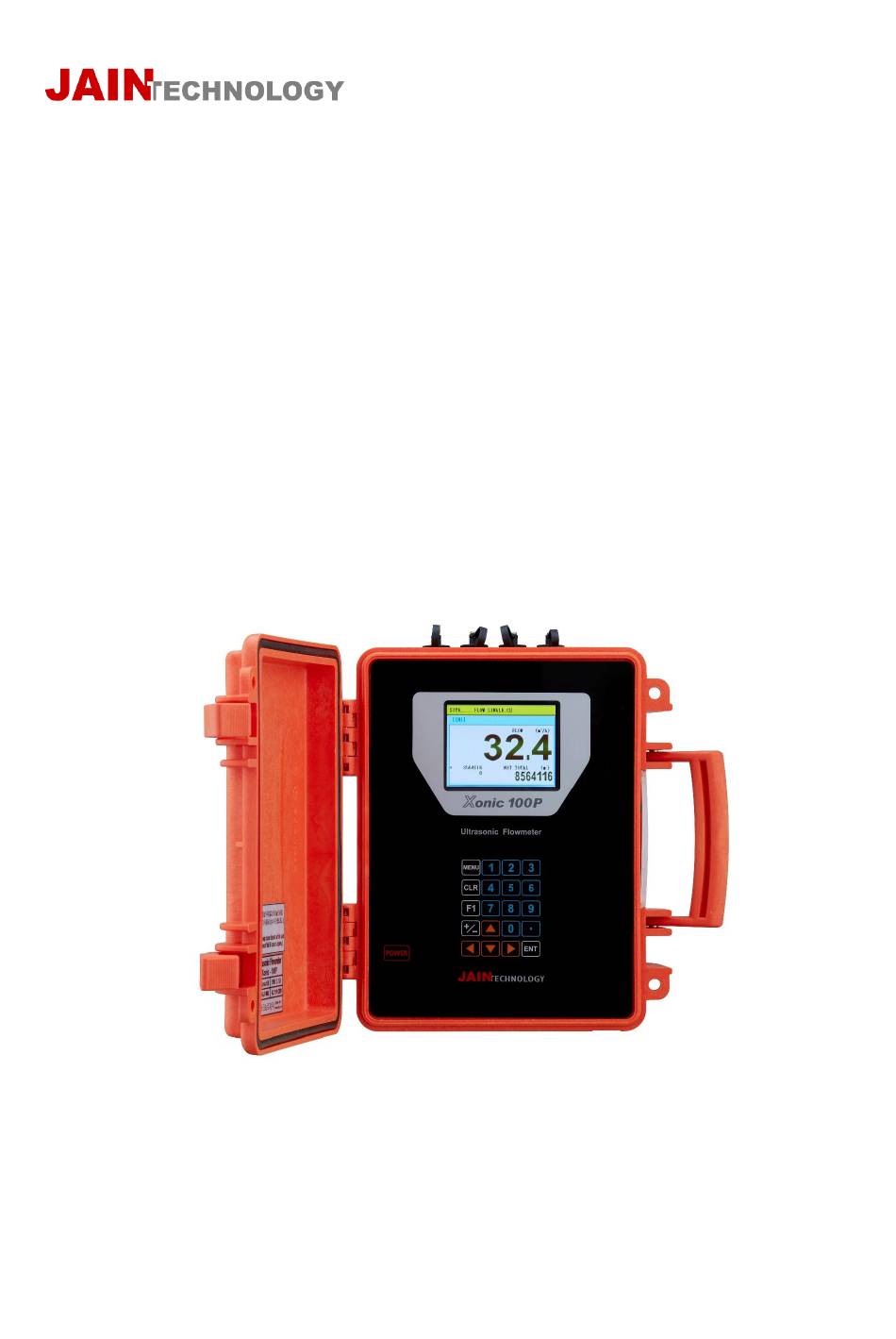

    Xonic 100P, 2020 Delivery Items Flow Computer Transducer Mounting Track Cable, etc...

  • Page 4: Preview

    Xonic 100P, 2020 Preview Introduction Xonic 100P Portable Ultrasonic Flowmeter is fully digitalized, the state-of- art flowmeter that use DSP (Digital Signal Processing) technology to measure the time difference of ultrasonic signals. Please read this manual carefully before installation and operation to ensure the best performance.

  • Page 5: Key Functions

    Xonic 100P, 2020 Key Functions Note : Touch keys do not have alphabet table, so user must select alphabet by pressing numeric keys several times. Keys Functions Press to enter the menu or back to the main display. Press to enter the selected menu or save the input data.

  • Page 6: Understanding Display

    Xonic 100P, 2020 Understanding Display Site Name : user must input site name for communication Type : single ch means single path/channel Flow Unit : user selected flow unit Flow : measured flow Total : total flow Total Unit : total flow unit...

  • Page 7: Section 1. Input General Data

    Xonic 100P, 2020 Section 1. Input GENERAL data System Lock User can set password to prevent unauthorized access to the flow computer. Input number and alphabet using keypad. MAIN MENU GENERAL CH SELECT PIPE LIQUID INSTALL OPERATE GENERAL FLOW 1 . SYSTEM LOCK IN/OUTPUT 2 .

  • Page 8: Section 2. Ch Select

    Xonic 100P, 2020 Section 2. CH SELECT User should select channel first to setup the data in other menus. In case of single channel, select CHANNEL 1. In case of dual channel, user have to setup the data of each channel separately.

  • Page 9: Section 3. Input Pipe Data

    Xonic 100P, 2020 Section 3. input PIPE DATA Pipe Unit Select pipe unit: METRIC or US units (inch) MAIN MENU GENERAL CH SELECT PIPE PIPE 1 . PIPE UNIT LIQUID 2 . PIPE MATERIAL INSTALL 3 . PIPE SONIC Vs OPERATE 4 .
  • Page 10 Xonic 100P, 2020 Lining Material If pipe has lining, select lining material. LINING MATERIAL 1 . NONE PIPE 2 . MORTAR 1 . PIPE UNIT 3 . TAR_EPOXY 2 . PIPE MATERIAL 4 . TEFLON 3 . PIPE SONIC Vs 5 .

  • Page 11: Section 4. Select Liquid Type

    Xonic 100P, 2020 Section 4. Select LIQUID TYPE User can select liquid type from list. Sonic velocity, viscosity and density are automatically selected by flowmeter. If liquid type is unknown, user must input 3.VISCOSITY and 4.DENSITY manually. Liquid Material Select liquid type from Material list.

  • Page 12: Section 5. Install

    Xonic 100P, 2020 Section 5. INSTALL For proper installation, read this section carefully. After you input pipe and liquid data, you can install quickly and easily. Sensor Type User must have correct transducer for the pipe. Xonic 100 has 5 types of transducers and Xonic 100 will automatically recommend proper transducers for the site.
  • Page 13 Xonic 100P, 2020 <V mode installation> If pipe is large in diameter (over 1000mm) or very old (scale or corrosion inside), use Z MODE installation. These pipes can sometimes make the ultrasonic signal very weak, so flowmeter cannot work in V mode. Also, in the case that liquid is not clean, for example wastewater, use Z MODE.
  • Page 14 Xonic 100P, 2020 Finding Installation Position Please find enough straight run pipe position. Normally, clamp-on ultrasonic flowmeter need 1Fi0 Upstream and 5 Downstream diameters straight pipe run. Ensure adequate straight pipe to ensure smooth laminar flow. Accuracy will be affected if not enough straight pipe can be found.
  • Page 15 Xonic 100P, 2020 Install Mounting Track Install mounting track onto the pipe with stainless steel strap. Fix it tightly. Easy Mounting Track 센서고정용트랙 Space 센서의 설치거리 트랙고정용 스트랩 Strap Kit Install Transducers onto PIPE Apply couplant gel onto bottom of transducers and locate transducer into mounting track.
  • Page 16 Xonic 100P, 2020 INSTALL 1 . SENSOR TYPE 2 . SAMPLING CLK 3 . MOUNT TYPE 4 . SENSOR DISTANCE 5 . INSTALL INFO. AUTO INSTALL 6 . AUTO INSTALL 1 . NO 7 . ACTUAL ZERO 2 . YES After auto installation, Xonic 100 shows the below ultrasonic signals.

  • Page 17: Section 6. Operate

    Xonic 100P, 2020 Section 6. OPERATE Upper Flow Limit This menu means the site flow cannot exceed flow limitation. MAIN MENU OPERATE GENERAL 1 . UPPER FLOW LIMIT CH SELECT 2 . LOWER FLOW LIMIT PIPE 3 . DEAD ZONE LIQUID 4 .
  • Page 18 Xonic 100P, 2020 OPERATE 1 . UPPER FLOW LIMIT 2 . LOWER FLOW LIMIT 3 . DEAD ZONE 4 . FLOW AVERAGE TIME 5 . TOTAL FLOW SET 6 . ALARM 7 . CALIBRATION 8 . ENABLE AGC FLOW AVERAGE TIME 9 .
  • Page 19 Xonic 100P, 2020 Move cursor to CALIBRATION METHOD. 1) NO CALIBRATION is no calibration. It does not affect any calibration to the flow. 2) MULTI-POINTS is multi-point calibration menu. User can test flow from minimum to max flow. And can input each test points to flowmeter.
  • Page 20 Xonic 100P, 2020 OPERATE 1 . UPPER FLOW LIMIT 2 . LOWER FLOW LIMIT 3 . DEAD ZONE 4 . FLOW AVERAGE TIME 5 . TOTAL FLOW SET 6 . ALARM 7 . CALIBRATION 8 . ENABLE AGC ENABLE AGC 9 .

  • Page 21: Section 7. Flow

    Xonic 100P, 2020 Section 7. FLOW Flow Volume Unit User can select any unit from list. MAIN MENU GENERAL FLOW CH SELECT 1 . FLOW VOLUME UNIT PIPE 2 . FLOW TIME UNIT LIQUID 3 . FLOW RESOLUTION FLOW VOLUME UNIT INSTALL 4 .
  • Page 22 Xonic 100P, 2020 Total Volume Unit User can select total unit. In most case, total unit is same with flow unit. FLOW 1 . FLOW VOLUME UNIT 2 . FLOW TIME UNIT 3 . FLOW RESOLUTION TOTAL VOLUME UNIT 4 . FLOW SCALE 1 .
  • Page 23 Xonic 100P, 2020 Totalizer Mode User can select totalizer mode. FLOW 1 . FLOW VOLUME UNIT 2 . FLOW TIME UNIT 3 . FLOW RESOLUTION 4 . FLOW SCALE 5 . TOTAL VOLUME UNIT 6 . TOTAL RESOLUTION TOTALIZER MODE 7 .

  • Page 24: Section 8. In / Output

    Xonic 100P, 2020 Section 8. IN / OUTPUT Analog Out [1] Xonic 100P has one analog output function for 4-20mADC output. User can assign output data and set range. MAIN MENU GENERAL CH SELECT PIPE ANALOG OUT [1] LIQUID IN/OUTPUT 1 .
  • Page 25 Xonic 100P, 2020 ANALOG IN [1] IN/OUTPUT 1 . SET ENABLE 1 . ANALOG OUT [1] 2 . CALIBRATION_MIN 2 . ANALOG OUT [2] 3 . CALIBRATION_MAX 3 . RELAY OUT [1] 4 . MIN INPUT SPAN 4 . RELAY OUT [2] 5 .

  • Page 26: Section 9. Datalogger

    Xonic 100P, 2020 Section 9. DATALOGGER The flowmeter provides RS-232C for the communication. Caution) Before user start logging data, user should review this section carefully. Time Set User must setup the correct date and time for recording the measurement. MAIN MENU...
  • Page 27 Xonic 100P, 2020 CONFIGURE 1 . BAUD RATE 2 . DATA BITS 3 . PARITY 4 . STOP BITS STOP BITS 5 . LINE FEED 1 . 1Bits 6 . NETWORK ID 2 . 2Bits Line Feed CONFIGURE 1 . BAUD RATE 2 .
  • Page 28 Xonic 100P, 2020 RS-232C FORMAT 1 . CONFIGURE HFTA 2 . HEADER 3 . FORMAT H:Header 4 . SEPERATOR S:Site name 5 . LOG INTERVAL N:Channel No 6 . LOG TIME SYNC. D:Date, C:Time 7 . LOG ENABLE F:Flow , T:Total 8 .
  • Page 29 Xonic 100P, 2020 RS-232C 1 . CONFIGURE 2 . HEADER 3 . FORMAT 4 . SEPERATOR 5 . LOG INTERVAL 6 . LOG TIME SYNC. 7 . LOG ENABLE 8 . COMM MODE LOG ENABLE 9 . SELECT COMM 1 . DISABLE 0 .
  • Page 30 Xonic 100P, 2020 Memory of Datalogger Internal Memory User can see the records of First Log and Last Logger. Log Output MEMORY 1 . LOG OUTPUT 2 . FORMAT DATALOG 3 . LOG INTERVAL 1 . TIME SET MEMORY 4 . LOG TIME SYNC.
  • Page 31 Xonic 100P, 2020 MEMORY 1 . LOG OUTPUT 2 . FORMAT 3 . LOG INTERVAL 4 . LOG TIME SYNC. 5 . LOG ENABLE LOG ENABLE 6 . PORT SELECT 1 . DISABLE 7 . MEMORY CLEAR 2 . ENABLE...

  • Page 32: Section 10. Diagnostics

    Xonic 100P, 2020 Section 10. Diagnostics User can see what happen in flowmeter through diagnostic functions. MAIN MENU GENERAL CH SELECT PIPE LIQUID INSTALL DIAG OPERATE 1 . FREQUENCY DIV FLOW 2 . RISC IN/OUTPUT 3 . PULSE COUNT FREQUENCY DIV DATALOG 4 .
  • Page 33 Xonic 100P, 2020 DRAWINGS...
  • Page 34 Xonic 100P, 2020...
  • Page 35 Xonic 100P, 2020...
  • Page 36 Xonic 100P, 2020...
  • Page 37 Xonic 100P, 2020...
  • Page 38 Xonic 100P, 2020...
  • Page 39 Xonic 100P, 2020...
  • Page 40 Xonic 100P, 2020...
  • Page 41 Xonic 100P, 2020...
  • Page 42 Xonic 100P, 2020...
  • Page 43 Xonic 100P, 2020 #710, 55, Digital-ro 33-gil,Guro-gu, Seoul, Korea TEL. 82-2-856–4114 FAX. 82-2-856–9503 www.jain.co.kr...
