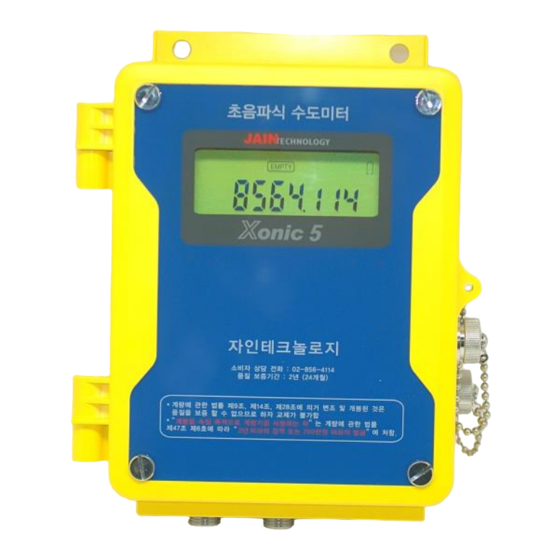

Jain Technology Xonic 5L User Manual

Ultrasonic water meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

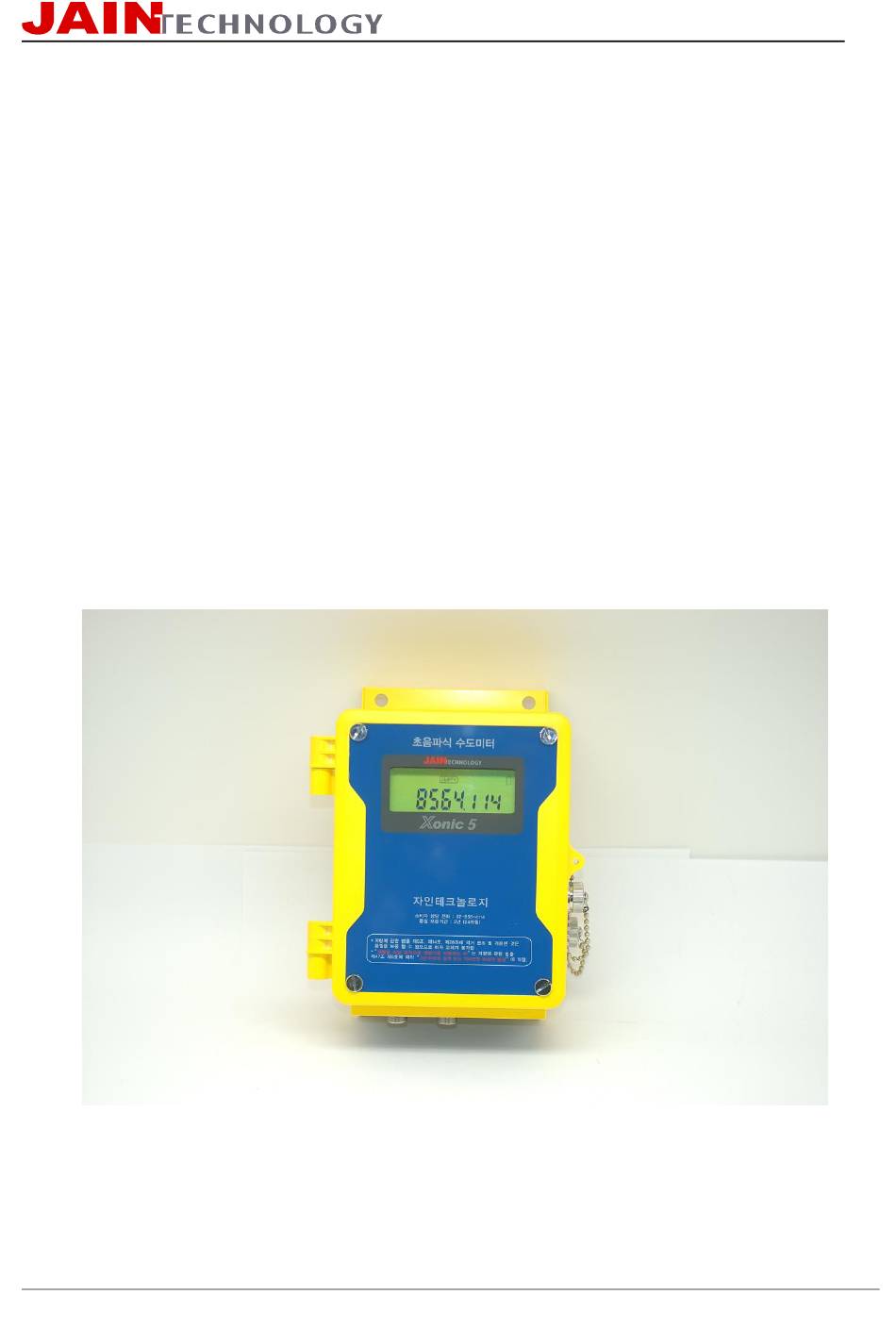

Xonic 5L
ULTRASONIC WATER METER
User's Manual
MODEL: XONIC 5L
1/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xonic 5L and is the answer not in the manual?

Questions and answers

Related Manuals for Jain Technology Xonic 5L

Summary of Contents for Jain Technology Xonic 5L

  • Page 1 Xonic 5L ULTRASONIC WATER METER User’s Manual MODEL: XONIC 5L 1/23...

  • Page 2: Table Of Contents

    4. Xonic 5L Main Board in-output terminal 5. Lead Switch operation function 6. LCD Display 7. PC and Xonic 5L communication cable connection 8. PC USB TO RS232 serial communication setting 9. USER MODE RS232 serial communication FACTORY MODE RS232 serial communication...

  • Page 3: Product Description

    Xonic 5L 1. Product Description Xonic 5L is transit-time water meter with high accuracy. The meter is equipped with lithium primary battery that can operate up to 8 years. General specifications are as in below. Principle Ultrasonic Transit-Time Velocity 0.02 ~ 10m/sec...

  • Page 4: Installation Considerations

    Xonic 5L 2. Installation Considerations Choose an installation place that has enough straight pipe run. 7D for upstream and 3D for downstream. 전단 7D 후단 3D Make sure that the sensor part is not located at the top. Error may occur due to the air bubble in the upper part.

  • Page 5: Scope Of Application

    Xonic 5L 3. Scope of Application This is flow calibration and adjustment specification of Xonic 5L ultrasonic water meter. The flow rate can be adjusted to fit 80mm, 100mm, 150mm, 200mm, 250mm, and 300mm flanges of Xonic 5L ultrasonic flowmeter.
  • Page 6 Xonic 5L (1) CN402_Sensor_Up Connector - Up sensor Pulse, Wave signal in/output terminal (Pulse : Output / Wave : Input) - CONNECTOR spec : Hirose Electric - U.FL-R-SMT(10) - 1Pin : 500Khz SIGNAL 2Pin :GND (3)CN403_Sensor_Down Connector - Down sensor Pulse, Wave signal in/output terminal (Pulse : Output / Wave : Input) - CONNECTOR spec : Hirose Electric - U.FL-R-SMT(10)

  • Page 7: Lead Switch Operation Function

    Xonic 5L 5. Lead Switch operation function. Bring neodymium magnet into contact with SW101, SW102 to operate the special function of ultrasonic water meter. (1) Instant display function - Bring neodymium magnet into contact with Lead Switch SW101. - Unit is changed from m³ to m³ /h.

  • Page 8: Lcd Display

    Xonic 5L 6.LCD Display (1) Full screen with icon and number. (2) User mode screen - with battery sign (3) Factory mode screen. - no battery sign. 8/23...
  • Page 9 Xonic 5L (4) Firmware version, Actual zero operation screen - 6-digit integers indicate the firmware version. - 3 decimal places indicate the pipe diameter. 9/23...

  • Page 10: Pc And Xonic 5L Communication Cable Connection

    (1)XONIC 5L RS232 CIRCULAR cable “A” “B” (2) XONIC 5L RS232 CABLE “C” “D” (3) XONIC 5L EXTERNAL BATTERY CIRCULAR “F” “E” (4) USB TO RS232 Serial Converter (5) Connect XONIC-5L and PC comm cable - Connect XONIC-5L RS232 CIRCULAR cable “A”...

  • Page 11: Pc Usb To Rs232 Serial Communication Setting

    Xonic 5L 8. PC USB TO RS232 serial communication setting (1)PC USB communication setting. 11/23...
  • Page 12 Xonic 5L - Install USB TO RS232 Serial Converter operation software on a PC. - Check “USB Serial Converter” in Control Panel -> Device Manager -> Universal serial bus controller. - Check “USB Serial Port(COM**)” Control Panel -> Device Manager -> Port(COM &LPT).

  • Page 13: User Mode Rs232 Serial Communication

    Xonic 5L 9. USER MODE RS232 serial communication (1) USER MODE menu (2) Display Information - In USER MODE menu, enter number “1” on PC keyboard and press Enter. 13/23...
  • Page 14 Xonic 5L (4) RTC Time Set - In USER MODE menu, press number “2” on PC keyboard and press Enter. - Year(xxxx) : Enter the year and press Enter. (4 digits) / Ex : 2016 - Month(xx) : Enter the month and press Enter. (2 digits ) / Ex : 01~12 - day(xx) : Enter the day and press Enter.
  • Page 15 Xonic 5L (5) Logging On/Off Selection - In USER MODE menu, enter number "3" on PC keyboard and press Enter. - 1. Logging Enable(Existing Log Data Loss) : Save log data. - 2. Logging Disable : Log data is not saved.
  • Page 16 Xonic 5L - In USER MODE menu, enter number "3" on PC keyboard and press Enter. - Enter number "1" on PC keyboard and press Enter. - Select to save log data. - Completer when "Init FRAM" message appears. * Caution if you select 1.Logging Enable(Existing Log Data Loss), the existing data will be deleted.
  • Page 17 PC keyboard, and press Enter. - Maximum number of log data is 16383. * Caution: Save Xonic 5L log data on PC using log function of Hyper Terminal. (10) Find DAC OP On & Off setting. - Do not use.

  • Page 18: Factory Mode Rs232 Serial Communication

    Xonic 5L 10. FACTORY MODE RS232 serial communication (1) FACTORY MODE menu - Menu from 1 to 6 are same as USER MODE menu. (2) Find Dac Level setting - In FACTORY MODE menu, enter number "10" on PC keyboard and press Enter.
  • Page 19 Xonic 5L (3) SoundSpeed Offset correction - In FACTORY MODE menu, enter number "11" on PC keyboard and press Enter. - Check ultrasonic sound speed table according to water temperature and enter the value in numbers. - Ex : If water temperature is 25℃ and sound speed is 1496.7m/s, enter sound speed as a number 1496.7m/s * 10 =...
  • Page 20 Xonic 5L (5) Reverse KC Factor correction - In FACTORY MODE menu, enter number "13" on PC keyboard and press Enter. - Enter error value of measured Q3 flow. - Ex : If error of measured Q3 flow is -5.5%, enter it as a number -5.5% * 10 = ”55”...
  • Page 21 Xonic 5L (7) Reverse DeltaT Offset correction - In FACTORY MODE menu, enter number "15" on PC keyboard and press Enter. - Enter error value of measured Q2 flow. - When 80mm measurement error is ±0.1 : Enter value ±12ps / When 80mm measurement error is ±2.5 : Enter value ±300ps...
  • Page 22 Xonic 5L (8) Total Flow Reset function - In FACTORY MODE menu, enter number "16" on PC keyboard and press Enter. - Total value changes to “0.000”. (9) Set Dead-Zone Range adjust - In FACTORY MODE menu, enter number "17"...
  • Page 23 Xonic 5L (10) Total Flow Value Add adjust - In FACTORY MODE menu, enter number "18" on PC keyboard and press Enter. - Total value can be inputted. Input below -30000 ~ +30000 at once. - Total value can be inputted below -30000 ~ +30000, and if it is above this range, enter continuously.
