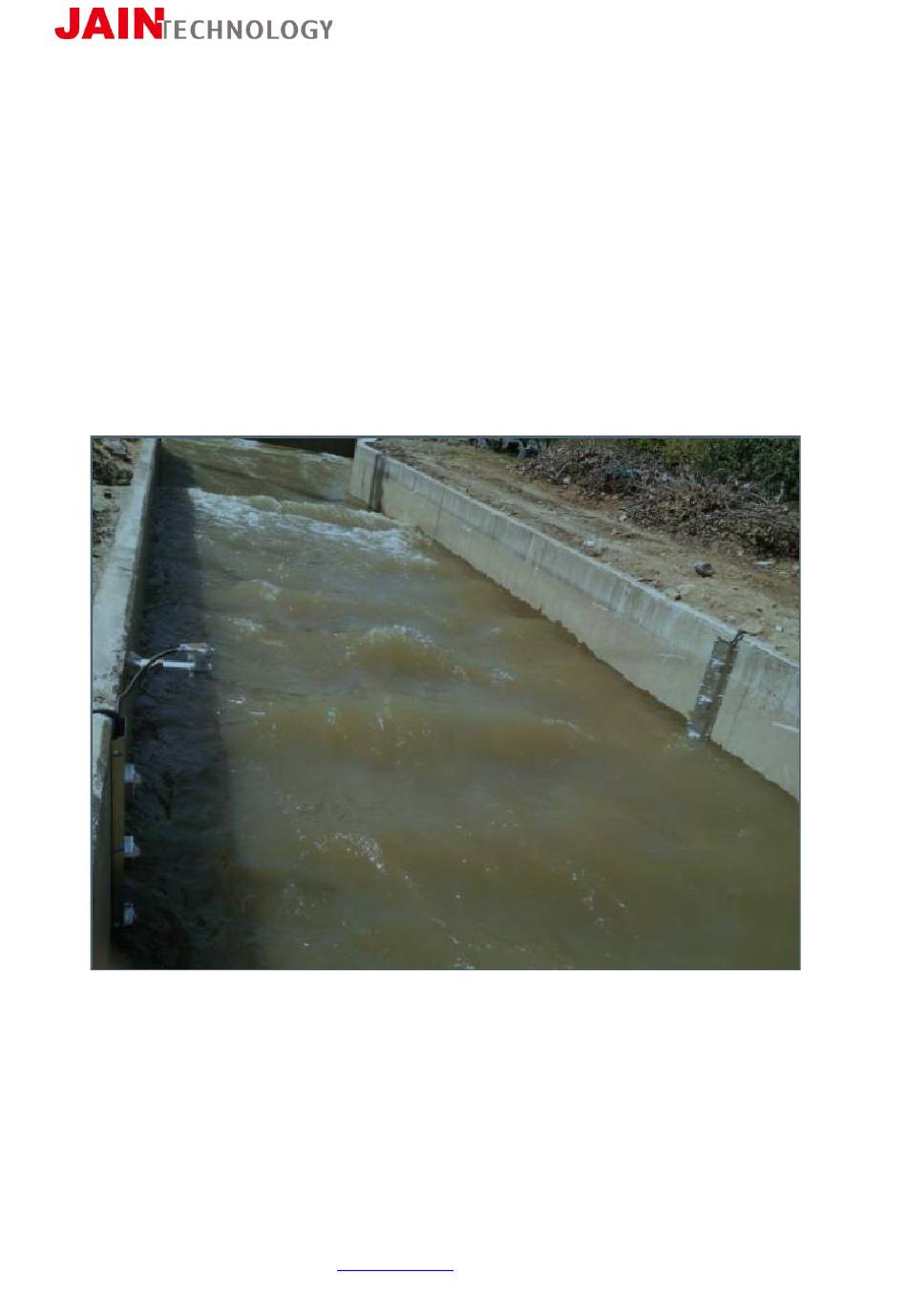

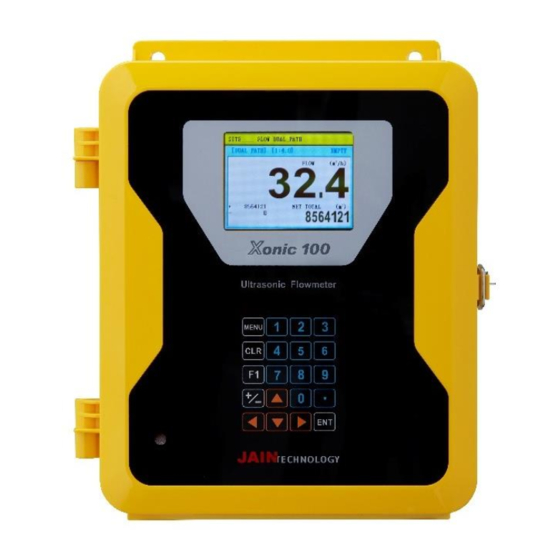

- Page 1 Technical Information ® Xonic 100 Series Open Channel Ultrasonic Flowmeter Open Channel Guidebook Instruction Manual Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 2: Table Of Contents
Input/output – Analog Out [1]&[2] ................ 32 Input/output – Relay Out [1]&[2] ................33 Input/output – Analog In [1]&[2] ................34 Data Logger – Instructions ..................35 Diagnostics Menu ......................40 Drawings ........................42 Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 3: Delivery Items
® Xonic 100 Series Delivery Items Flow Computer Transducer Bracket Cable Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 4: Overview
On the right side of flow computer, you will see a silver label with per product’s Part Name and Serial Number. This is Identification of the product. Check for the correct supply voltage printed on the label. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 5: Control And Display
Press to select the choice in menu. Press to input decimal point while inputting data. Press to input numbers while inputting data / select the choice in menu. *Numbers hereinafter referred to as [NUM] Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 6: Instructions - Transducers Installation
A side B side Confirm the installation place for the opposite side wall, then install brackets on the wall tightly. Step 2: Insert sensors into brackets tightly. Assembling of Sensor and Bracket Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 7 For trapezoidal or circular channels, rotate the sensors on both walls so that they face each other. Step 4: Cables are integrated with transducers, so connect the other side of cable to the flow Install Flowmeter computer. and Connect Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 8 Connect the power cable of the flow computer and turn on the power. Supply Power to Flow Computer Step 6: Input the Values on Please refer to next chapter for input the parameters of the open channel. Flow Computer Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 9: Instructions- Installation Quick Setup
Channel Shape Setup can calculate the Channel Shapes for the measurement. MAIN MENU CH SETUP GENERAL 1 . VIEW PATH SELECT 2 . ADD CH SETUP 3 . DELETE INSTALL OPERATE FLOW IN/OUTPUT DATALOG DIAG Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 10 9 . ACTUAL ZERO 0 . SAMPLING CLK 1. Sensor Type: Select corresponding sensor. 2. Path Height: the mounting height from the bottom. Path Height 3. Path Length: the length between 2 transducers. (Lens to Lens) Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 11 9. Actual Zero: User should perform Actual Zero when the flow is actual stopped but the flowmeter shows other values instead of “0”. 10. Sampling Clk: Flow computer will select Sampling Clock automatically, therefore, user does not need to change. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 12: Instructions - Quick Analog Output
7.1.5. Span MIN – Introduce for Lower Flow Value. 4 mA ➢ 7.1.6. Span MAX – Introduce for Upper Flow Value. 20 m A ➢ 7.1.7. 2mA Set – initial setup by manufactory. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 13 Analog Input – AO2- AI1+ AI1- AI2+ Output + AI2- Output – Flowmeter Step 3: After reboot the flowmeter, the connecting device shall be able to receive the output Power On data smoothly. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 14: Instructions - Analog Input For Level Meter
DIAG ➢ 7.7.1. Input – User can use either Analog In [1] or Analog In [2] for input level data. ➢ 7.7.2. Unit – The unit of level transmitter is “mm” or “inch”. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 15 CHECK INPUT DATA 1 . SET ENABLE UNIT: mm 2 . CALIBRATION_MIN 0. 0000 3 . CALIBRATION_MAX 4 . MIN INPUT SPAN 5 . MAX INPUT SPAN 6 . DESCRIPTION 7 . CHECK INPUT DATA Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 16: Instructions - Data Logger
7 . MEMORY CLEAR Download the software in user’s Laptop. Step 3: Download DNW.exe Caution) Please contact the manufacture for the software. ➢ DNW allows user to: 1. Output the logger data 2. Upgrade flowmeter Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 17 ➢ Feel free to set the COM Port Number to “COM 1/COM 2/COM 3/COM 4”. (*The software “DNW” works with COM 1~4 only.) ➢ Then, click “OK” button and close the Device Manager to complete the setting Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 18 ➢ After return to DNW, open the “Serial Port” menu and click “Connect” ➢ After Connecting, user will see the information which just been setup and shows on the top of the window as figure. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 19 4 . LOG TIME SYNC. 5 . LOG ENABLE 6 . PORT SELECT 7 . MEMORY CLEAR ➢ Press [ENT] to output the data. ➢ Make sure 2. ENABLE is selected on 5. LOG ENABLE menu. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 20: Setting Operation - General Setting
Press [MENU] – 1.GENERAL – 2 . SITE NAME 2 . PIPE 3 . APPLICATION 5.CHANNEL SHAPE 4 . UNIT 5 . CHANNEL SHAPE ▪ 6 . LEVEL METER SET POLYGON ▪ PIPE Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 21 Set up the input unit of the level transmitter. Press [MENU] – 1.GENERAL – 6.LEVEL METER LEVEL METER SET UNIT 1 . INPUT 1 . mm SET – 2. UNIT 2 . UNIT 2 . inch Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 22: Setting Operation - Channel Setup
3. DELETE HEIGHT (mm)/WIDTH(mm) 2 . ADD 3 . DELETE 200: ➢ Move the cursor to the parameter that user EMPTY and press [CLR] to delete. wants to delete EMPTY EMPTY EMPTY EMPTY EMPTY Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 23: Setting Operation - Installation
3 . PATH LENGTH 4 . PATH ANGLE 5 . PATH HEIGHT OPT 6 . AUTO INSTALL 7 . RESERVE INSTALL 8 . INSTALL INFO. 9 . ACTUAL ZERO 0 . SAMPLING CLK Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 24 8 . INSTALL INFO. 9 . ACTUAL ZERO ▪ Clear – display “Cleared” 0 . SAMPLING CLK ➢ Disable. ▪ - display “Installed” ➢ The system is already installed. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 25 ➢ User could refer to the “RISC” value in this screen as the TOTAL LENGTH of the ➔ signal. Press [ ] multiple times to move the current position of RISC Value. Press [] [] multiple times to move the current position of Frequency. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 26 ➢ The software will take about 30 second to reset the zero point for flowmeter. ➢ After it finished, user will see a negative value in this menu. 4.9 Install – Flow computer will select Sampling Clock automatically, therefore, user does not need to change. Sampling Clk Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 27: Setting Operation - Operating Condition
0. 000 3 . DEAD LEVEL LEVEL 4 . DEAD ZONE 5 . FLOW AVERAGE TIME 6 . TOTAL FLOW SET 7 . ALARM 8 . CALIBRATION 9 . ENABLE AGC 0 . DAMPING Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 28 3 . Kc SET 3 . DEAD LEVEL 4 . DEAD ZONE 5 . FLOW AVERAGE TIME 6 . TOTAL FLOW SET 7 . ALARM 8 . CALIBRATION 9 . ENABLE AGC 0 . DAMPING Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 29 5 . FLOW AVERAGE TIME 5 . 10 MIN. 6 . TOTAL FLOW SET 6 . 30 MIN. 7 . ALARM 7 . UNLIMITED 8 . CALIBRATION 9 . ENABLE AGC 0 . DAMPING Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 30: Setting Operation - Flow Parameters
2 . KILO 3 . FLOW RESOLUTION 3 . MEGA 4 . FLOW SCALE 5 . TOTAL VOLUME UNIT 6 . TOTAL RESOLUTION 7 . TOTAL SCALE 8 . BATCH TOTAL 9 . TOTALIZER MODE Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 31 (The software will totalize positive and negative 7 . TOTAL SCALE flow automatically) 8 . BATCH TOTAL ▪ Positive Total (Only totalize positive flow) 9 . TOTALIZER MODE ▪ Negative Total (Only totalize negative flow) Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 32: Input/Output - Analog Out [1]&[2]
4 . CALIBRATION_MAX ➢ The value should be same with the minimum flow 5 . SPAN MIN 6 . SPAN MAX user set in the menu, 5.2 Lower Flow Limit. 7 . 2mA SET Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 33: Input/Output - Relay Out [1]&[2]
Press [MENU] – 7. IN/OUTPUT – 3.RELAY OUT [1] – UNIT : msec 1 . OUTPUT DATA Duty Set 3. DUTY SET 2 . OUTPUT MODE _ _ _ 3 . DUTY SET 4 . REV Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 34: Input/Output - Analog In [1]&[2]
5 . MAX INPUT SPAN 6 . DESCRIPTION 7 . CHECK INPUT DATA ➢ If the measuring range of transmitter is fro m 0 to 500mm. Then, the maximum input span is “500”. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... -
Page 35: Data Logger - Instructions
4 . STOP BITS 5 . LOG INTERVAL 5 . LINE FEED 6 . LOG TIME SYNC. 6 . NETWORK ID 7 . LOG ENABLE 8 . COMM MODE 9 . SELECT COMM Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 36 5 . LINE FEED ➢ Move cursor by [] []. 6 . NETWORK ID ➢ Input alphabet characters by [F1]. ➢ Delete characters by [CLR]. ➢ Leave the edit mode by pressing [ENT]. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 37 5 . LOG INTERVAL 6 . LOG TIME SYNC. 7 . LOG ENABLE 8 . COMM MODE 9 . SELECT COMM 8.2.8 Data Log – User must enable the function for data logger. Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 38 7 . 30 Min 8 . 1 Hour 9 . 12 Hour 0 . 24 Hour 8.2.4 Data Log– Press [MENU] – 8.DATA LOG – 2.MEMORY – 6.LOG TIME SYNC Memory– Log Time Sync Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 39 DATALOG Wave Data WAVE DATA 1 . TIME SET 1 . STOP Press [MENU] – 8.DATA LOG – 4.WAVE DATA 2 . RS-232C 2 . START 3 . MEMORY 4 . WAVE DATA Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 40: Diagnostics Menu
4.GAIN LEVEL 2 . GAIN LEVEL LIMIT 3 . GAIN 234 AUTO 4 . GAIN 2 LEVEL SET 5 . GAIN 2 LIMIT 6 . GAIN 34 LEVEL SET 7 . GAIN 34 LIMIT Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 41 9.5 Diag – Control CONTROL MAKEUP CONTROL 1 . MAKEUP CONTROL 1 . DISABLE Press [MENU] – 9.DIAG – 6.CONTROL 2 . ANTI-FAULT TIME 2 . ENABLE 3 . MANNING HEIGHT 4 . MANNING VELOCITY Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
-
Page 42: Drawings
® Xonic 100 Series DRAWINGS Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503... - Page 43 ® Xonic 100 Series Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 44 ® Xonic 100 Series Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 45 ® Xonic 100 Series Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 46 ® Xonic 100 Series Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
- Page 47 ® Xonic 100 Series Jain Technology www.jain.co.kr Tel. 82-2-856-4114 Fax. 82-2-856-9503...
