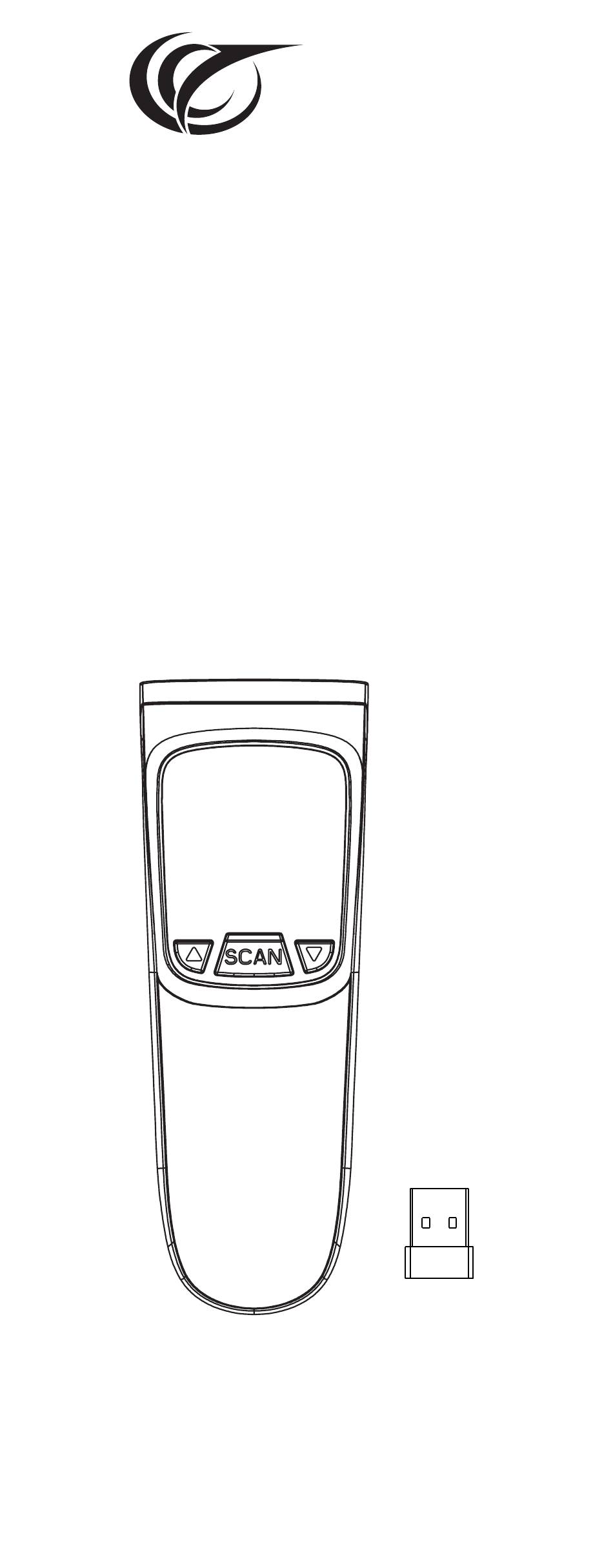

- Page 1 2D Bluetooth & 2.4G Barcode Scanner with Display Screen User Manual Model: M82...
-
Page 2: Table Of Contents
Contents Factory Default..............3 Structure Description............3 Technical Parameter............3 Bluetooth Pairing Instructions..........5 2.4G USB Receiver Pairing Instructions......7 Keyboard ON or OFF in IOS device........7 Scan Mode.................7 Data Saving Mode.............8 Data Upload Instruction in Inventory Mode......8 Transmission Speed............9 Keyboard Caps Lock Control..........9 Keyboard Language............9 Vibration Setting...............10 Buzzer Setting..............10 Sleep Time Setting............10... -
Page 3: Factory Default
Version Factory Default Structure Description 1. Button② means: Confirm / Power on / Scan. Button① means: Up. Button③ means: Down. (Note: In the menu, Button② can only be used as the confirm key, and when exit the menu, it can only be used as the scan key). -
Page 4: Technical Parameter
Technical Parameter Barcode Scanner Date Item Parameter Light Sources Red Aimer, White LED 1D: Code 128 (ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPC-E, UPCA, ISBN, ISSN, Code11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, IATA 2 of 5, Decoding Ability Industrial 2 of 5, MSI Plessey, Plessey, GS1 DataBar, Febraban. -
Page 5: Bluetooth Pairing Instructions
Bluetooth Pairing Instructions Method 1: Using Screen Button Pairing Middle button means: Power on / Scan / OK Left button means: Up Right button means: Down Press left and right button at the same time: enter the setting mode / return to the home page. ①... - Page 6 ② The device open Bluetooth, search “Barcode Scanner HID” → click connect (there will be a “beep” sound when the connection is successful); ③ The data can be output in notepad or other text on the device. NOTE: If you need to pair another device, first scan for “Bluetooth disconnection”...
-
Page 7: 2.4G Usb Receiver Pairing Instructions
2.4G USB Receiver Pairing Instructions Method 1: Using Screen Button Pairing 1) Press the middle button to turn on the scanner. Press left button and right button at the same time to enter the setting mode; 2) Press right button to select the “Connection mode” →... -
Page 8: Data Saving Mode
Data Saving Mode Instant Upload Automatic Storage (default) Inventory Note: 1) Instant upload mode: Scan the barcode to enter the instant upload mode. You will hear a “beep” sound normally. In this mode, the scanned data results will be uploaded to the computer instantly. 2) Automatic storage mode: Scan the barcode to enter the automatic storage mode, that is, no loss mode. -
Page 9: Transmission Speed
Transmission Speed Medium spee dtransmission Fast transmission Low speed transmission Ultra low speed transmission Keyboard Caps Lock Control None Capitalize Case Swap Lower Case Keyboard Language French Japanese British Italy German... -
Page 10: Vibration Setting
Portuguese Spanish Vibration Setting Enable(default) Disable Buzzer Setting ON(default) Beep Volume High(default) Sleep Time Setting 1Min 2Min... -
Page 11: End Character
5Min 10Min None End Character CR&LF None Prefix Setting Add Prefix Prefix Eg: Add prefix "A” Step 1: Scan above code to enter into “Add prefix”; Step 2: Scan above code to add “Prefix”; Step 3: Scan the numeric code correspond to “A”, the ASCII value of A in Hexadecimal is “4”... -
Page 12: Suffix Setting
Suffix Setting Add Suffix Suffix Note: The method of adding the suffix is the sameas the prefix. Inverted Barcode Setting Enable Disable Barcode Settings All 1D Barcodes Enable Disable All 2D Barcodes Enable Disable UPCA Enable(default) Disable EAN-13 Enable(default) Disable... - Page 13 EAN-8 Enable(default) Disable Interleaved 25 Enable(default) Disable Industrial 25 Enable Disable(default) PDF 417 Enable(default) Disable DataMatrix Enable(default) Disable QR Code Enable(default) Disable...
-
Page 14: Barcode Conversion
Barcode Conversion EAN 13 Converts ISSN Enable Disable(default) EAN 13 Converts ISBN Enable Disable(default) UPCA Converts EAN13 Enable Disable(default) A d d i t i o n a l C o d e 2-bit Additional Code for UPCA Enable Disable(default) 5-bit Additional Code for UPCA Enable Disable(default) -
Page 15: Data Codes
5-bit Additional Code for EAN-13 Enable Disable(default) 2-bit Additional Code for EAN-8 Enable Disable(default) 5-bit Additional Code for EAN-8 Enable Disable(default) 2-bit Additional Code for UPC-E1 Enable Disable(default) 5-bit Additional Code for UPC-E1 Enable Disable(default) Data Codes Appendix 1:... - Page 16 Save...
- Page 17 Appendix 2 : Continue the table below...
- Page 18 Continue to the table...
- Page 19 For more setting, welcome to contact us for tech support. Service support: support@obzshop.com THANK YOU FOR CHOOSING OBZ.
