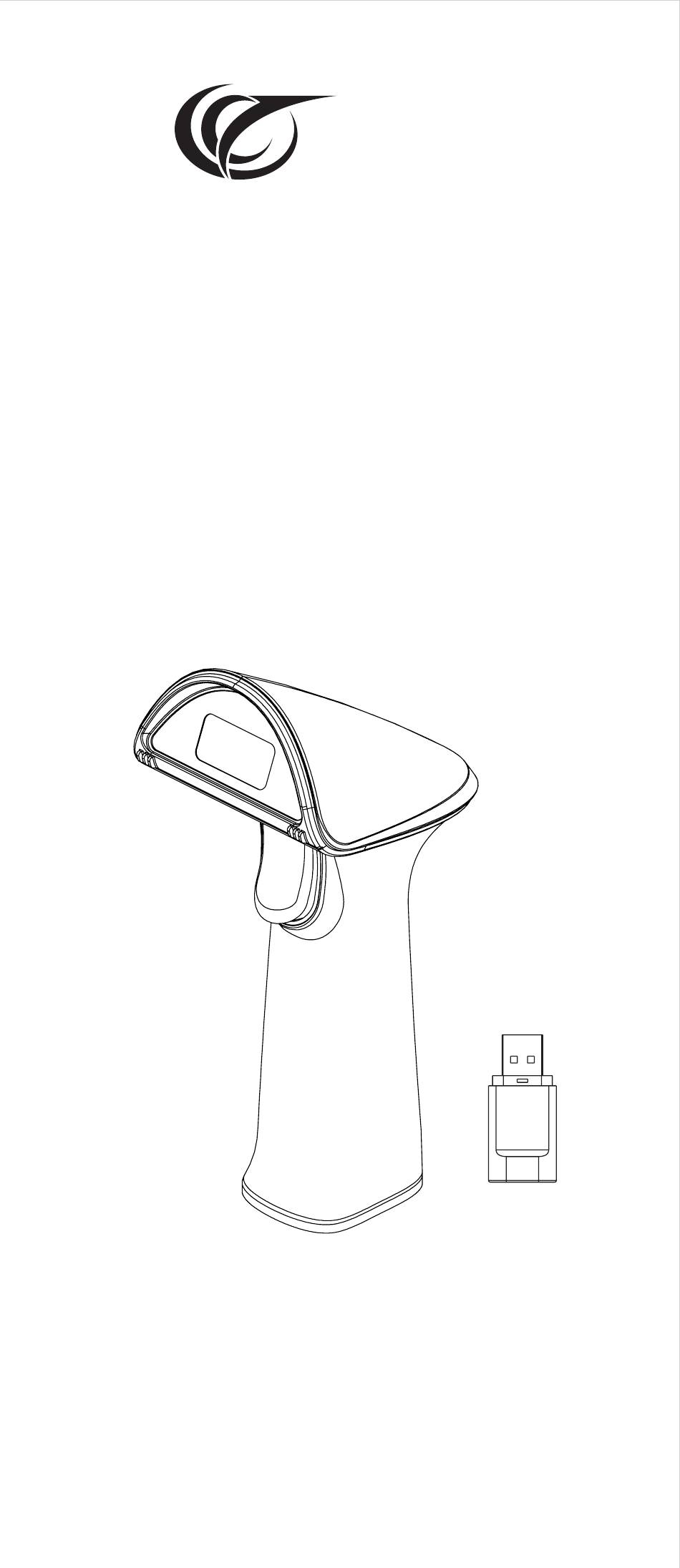

- Page 1 2D Bluetooth & 2.4G Barcode Scanner User Manual Model: OV-20R...
-
Page 2: Table Of Contents
Contents Factory Default..............3 Wired Mode................3 Structure Description............3 Technical Parameter............4 USB Receiver Pairing Instructions........5 Bluetooth Pairing Instructions........5~8 Keyboard ON or OFF in IOS device ........9 Scan Mode.................9 Data Saving Mode............9~10 Data Upload Instruction in Inventory Mode......10 Transmission Speed............11 Keyboard Caps Lock Control...........11 Keyboard Language..........11~12 Buzzer Setting..............12 Sleep Time Setting............13... -
Page 3: Factory Default
Factory Default Wired Direct Transmission Mode Wired Transmission Note : Plug in the charging cable to connect to the computer device, scan this setting code, you can switch to wired transmission mode. Strucdure Description Scanning window Trigger Handle Receiver LED: The indicator will flash after reading succeed. -
Page 4: Technical Parameter
Technical Parameter Barcode Scanner Date Item Parameter Type of Light Source 617 nm LED Aimer, white LED Decoding Accuracy ≥5mil 1D: Code128, EAN-13, EAN-8,UPC-E, UPC-A, ISBN,ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Decoding Ability Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey. -
Page 5: Usb Receiver Pairing Instructions
USB Receiver Pairing Instructions Step 1: Scan below pairing code I and code II in sequence, and the scanner LED indicator become blue and flashing. Step 2: Connect the USB receiver to host device, the LED indicator both become blue on barcode scanner and USB receiver after succeed pair. - Page 6 Picture ① Picture ②...
- Page 7 Picture ③ 2. The Scanner Pair with Computer Bluetooth Devices Step 1: Scan below pairing code I and code II in sequence, and the scanner bluetooth indicator become blue and flashing. Step 2: Open the Bluetooth in the computer bluetooth device and search for the barcode scanner which named “R&B40”...
- Page 8 Windows Bluetooth Connection: Picture ④ Picture ⑤ Picture ⑥...
-
Page 9: Keyboard On Or Off In Ios Device
Keyboard ON or OFF in IOS device Note: Scan above QR code to enable or disable Keyboard in the IOS device. Scan Mode Manual(default) Continuous Auto-sensing Data Saving Mode Automatic Storage Normal (default) Inventory... -
Page 10: Data Upload Instruction In Inventory Mode
Note: 1) Instant Upload Mode: The data will be uploaded to the device immediately after scan, out of range it will not save the data, and there will be alarm beeps out of range. 2) Automatic Storage Mode (default): If the scanner in range, the data will be uploaded to your device directly after scan;... -
Page 11: Transmission Speed
Transmission Speed No delay Delay 10ms Delay 30ms Keyboard Caps Lock Control None(default) Capitalize Case Swap Lower Case Keyboard Language USA(default) French... -
Page 12: Buzzer Setting
German Italy Spanish Japanese Canada Buzzer Setting High... -
Page 13: Sleep Time Setting
Sleep Time Setting 5Min 1Min None 10Min End Character CR(default) CR&LF None Prefix Setting Add prefix Prefix Eg: Add prefix "A” Step 1: Scan above code to enter into “Add Prefix”; Step 2: Scan above code to add “Prefix”; Step 3: Scan the numeric code correspond to “A”, the ASCII value of A in Hexadecimal is “4”... -
Page 14: Suffix Setting
Suffix Setting Add Suffix Suffix Note: The method of adding the suffix is the same as the prefix. Barcode Calibration bit Setting Disable(default) Enable Barcode Settings All 1D Barcodes Enable Disable All 2D Barcodes Enable Disable UPCA Enable Disable... - Page 15 UPC-E0 Enable Disable UPC-E1 Enable Disable EAN-13 Enable Disable EAN-8 Enable Disable Interleaved 25 Enable Disable...
- Page 16 Industrial 25 Enable Disable Codabar Enable Disable PDF 417 Enable Disable DataMatrix Enable Disable QR Code Enable Disable...
-
Page 17: Barcode Conversion
Barcode Conversion UPCA Converts EAN13 Enable Disable(default) EAN 13 Converts ISBN Enable Disable(default) EAN 13 Converts ISSN Enable Disable(default) Additional Code 2-bit Additional Code for UPCA Enable Disable(default) 5-bit Additional Code for UPCA Enable Disable(default) - Page 18 2-bit Additional Code for EAN-13 Enable Disable(default) 5-bit Additional Code for EAN-13 Enable Disable(default) 2-bit Additional Code for EAN-8 Enable Disable(default) 5-bit Additional Code for EAN-8 Enable Disable(default) 2-bit Additional Code for UPC-E1 Enable Disable(default)
-
Page 19: Data Codes
5-bit Additional Code for UPC-E1 Enable Disable(default) Data Codes Appendix 1:... - Page 20 Save...
- Page 21 Appendix 2 : Continue the table below...
- Page 22 Continue to the table...
- Page 23 For more setting, welcome to contact us for tech support. Service support: support@obzshop.com THANK YOU FOR CHOOSING OBZ.
