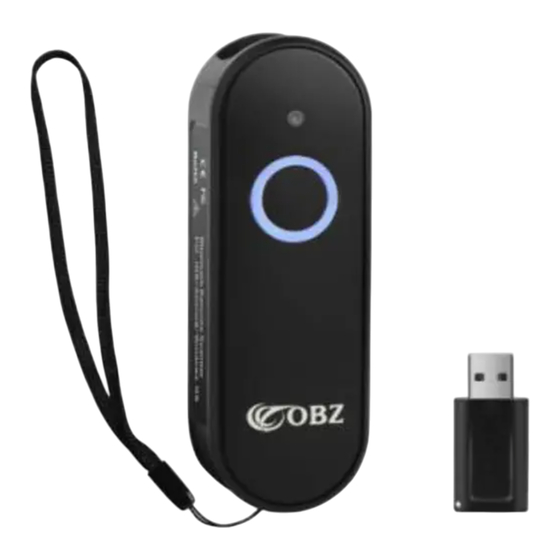

OBZ M60 User Manual

2d wireless & bluetooth barcode scanner
Hide thumbs Also See for M60:
Table of Contents

Advertisement

Quick Links

OBZ
User Manual
2D Wireless & Bluetooth
Barcode Scanner
OBZ
Model: M60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M60 and is the answer not in the manual?

Questions and answers

Related Manuals for OBZ M60

Summary of Contents for OBZ M60

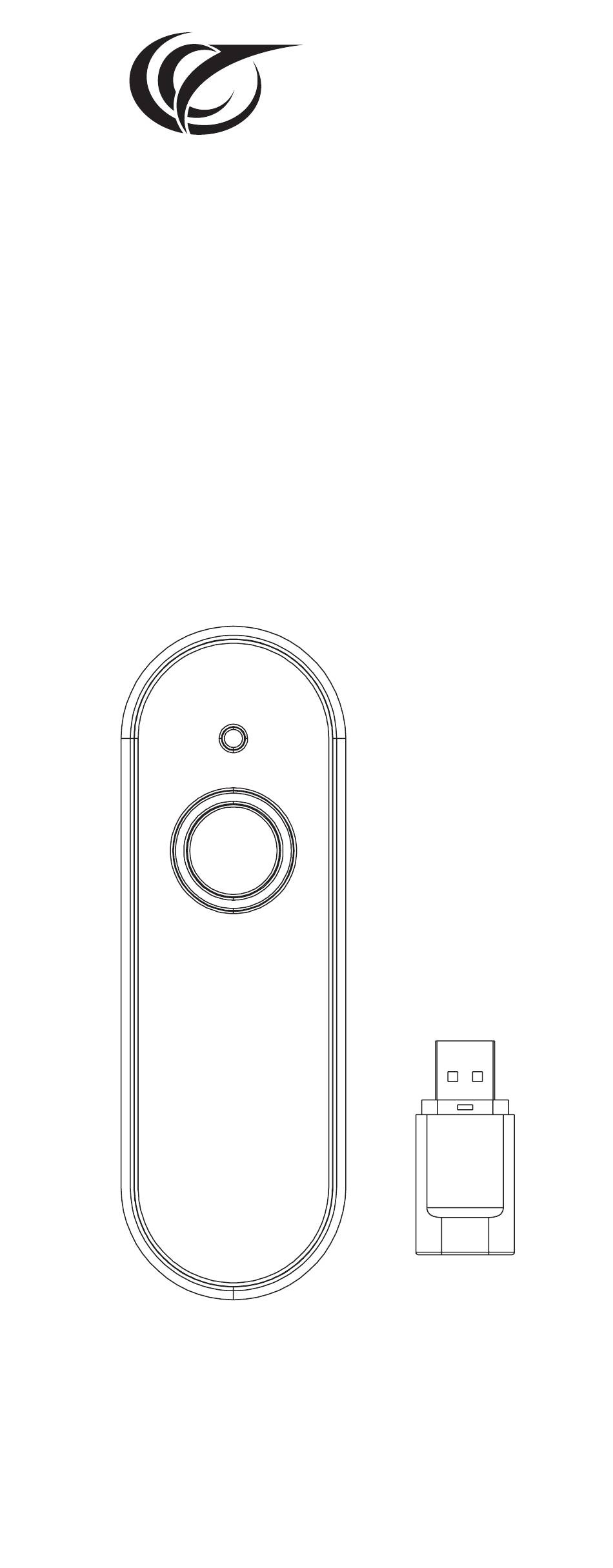

  • Page 1 User Manual 2D Wireless & Bluetooth Barcode Scanner Model: M60...

  • Page 2: Table Of Contents

    Contents Factory Default..............3 Power Off................3 Technical Parameter............3 Warning................4 USB Receiver Pairing Instructions........5 Bluetooth Pairing Instructions..........5 Keyboard ON or OFF in IOS device ........9 Scan Mode.................9 Data Saving Mode.............9 Data Upload Instruction in Inventory Mode.....10 Transmission Speed............10 Keyboard Caps Lock Control...........11 Keyboard Language............11 Buzzer Setting..............12 Sleep Time Setting............12...

  • Page 3: Factory Default

    Factory Default Power Off Note: Scan this barcode, scanner will make a beep and power off. Or long press the scanner button and hold for 15 seconds to power off. Technical Parameter Barcode Scanner Date Item Parameter Type of Light Source 617 nm LED white Decoding Accuracy ≥4mil...

  • Page 4: Warning

    Continue to the table Connection Ways Bluetooth; 2.4Ghz Wireless System Compatibility iOS, Android, Windows, Linux Material ABS+PC Interface USB-HID Working Current 280mA Working Voltage DC 5V±5% Lithium Battery 800mA Charging Time 2.5h Battery Working Withstand multiple 3 meters free fall Shock Resistance Operating Temperature -20℃~50℃...

  • Page 5: Usb Receiver Pairing Instructions

    USB Receiver Pairing Instructions Step 1: Method 1: Press and hold the button for 8 seconds until the scanner LED1 indicator flashing, it enters pairing state. Method 2: Scan below pairing code I and code II in sequence, the scanner LED1 indicator flashing, it enters pairing state.
  • Page 6 Step 3: Open notepad or other text on the device, use the scanner to scan compatible barcodes, the barcode data can be output on it. Note: 1. After scanning the pairing codes /or long press button enter pairing state, please complete the pairing within one minute.
  • Page 8 Windows Computer Bluetooth Connection Guide...

  • Page 9: Keyboard On Or Off In Ios Device

    Keyboard ON or OFF in IOS device Note: Scan above QR code to enable or disable Keyboard in the IOS device. Scan Mode Manual(default) Continuous Auto-sensing Data Saving Mode Instant Upload Automatic Storage (default) Inventory...

  • Page 10: Data Upload Instruction In Inventory Mode

    Note: 1) Instant Upload Mode: The data will be uploaded to the device immediately after scan, out of range it will not save the data, and there will be alarm beeps out of range. 2) Automatic Storage Mode (default): If the scanner in range, the data will be uploaded to your device directly after scan;...

  • Page 11: Keyboard Caps Lock Control

    Delay 20ms (default) Delay 30ms Keyboard Caps Lock Control None(default) Capitalize Case Swap Lower Case Keyboard Language USA(default) French German...

  • Page 12: Buzzer Setting

    Italy Spanish Japanese Canada Buzzer Setting ON(default) High Sleep Time Setting 1Min 5Min(default)

  • Page 13: Barcode Settings

    10Min None Barcode Settings Reverse Barcode Setting Enable Disable(default) All 1D Barcodes Enable Disable All 2D Barcodes Enable Disable EAN-8 Enable Disable...
  • Page 14 EAN-13 Enable Disable UPCA Enable Disable UPC-E0 Enable Disable UPC-E1 Enable Disable Interleaved 2 of 5 Enable Disable...
  • Page 15 Industrial 2 of 5 Enable Disable Codabar Enable Disable Code 39 Enable Disable QR Code Enable Disable PDF 417 Enable Disable...

  • Page 16: Barcode Conversion

    DataMatrix Enable Disable Barcode Conversion EAN 13 Converts ISSN Enable Disable(default) EAN 13 Converts ISBN Enable Disable(default) UPCA Converts EAN13 Enable Disable(default) A d d i t i o n a l C o d e 2-bit Additional Code for EAN-8 Enable Disable(default)
  • Page 17 5-bit Additional Code for EAN-8 Enable Disable(default) 2-bit Additional Code for EAN-13 Enable Disable(default) 5-bit Additional Code for EAN-13 Enable Disable(default) 2-bit Additional Code for UPC-E1 Enable Disable(default) 5-bit Additional Code for UPC-E1 Enable Disable(default)

  • Page 18: End Character

    2-bit Additional Code for UPCA Enable Disable(default) 5-bit Additional Code for UPCA Enable Disable(default) End Character CR(default) CR&LF None Prefix Setting Add Prefix Prefix Eg: Add prefix "A” Step 1: Scan above code to enter into “Add Prefix”; Step 2: Scan above code to add “Prefix”; Step 3: Scan the numeric code correspond to “A”, the ASCII value of A in Hexadecimal is “4”...

  • Page 19: Suffix Setting

    Suffix Setting Add Suffix Suffix Note: The method of adding the suffix is the same as the prefix. Data Codes Appendix 1:...
  • Page 20 Save...
  • Page 21 Appendix 2 : Continue the table below...
  • Page 22 Continue to the table...

  • Page 23: Faq

    FAQ: 1.Q: Why does the USB receiver display a driver error (BLE Remote KMA Dongle) when connecting to the computer? A: Because this error prompt (BLE Remote KMA Dongle) is for USB receiver upgrade, it does not affect pairing and usage. 2.Q: Why can't the scanner read the reverse barcode (white code on black background)? A: The reverse barcode is default disable, please...
  • Page 24 THANK YOU FOR CHOOSING OBZ.
