Crest Audio X-RACK XRM Specifications page 2

Specifications
Frequency response +0/-1dB 20Hz-20kHz ref 1kHz
(any input to any output)
THD any output <0.01% THD 20Hz-20kHz
@ +15dBu out
MIC E.I.N. < –128dBu 20Hz to 20kHz
150 ohm source, 60db gain
Crosstalk channel mute >80dB
mix send attenuation >80dB
Phase Shift < +/- 30 degrees, 20Hz to 20kHz
mic-in to mix out
Crest Audio reserves the right to make improvements in manufacturing or design which may affect specifications.
12/10/01
v.1.0

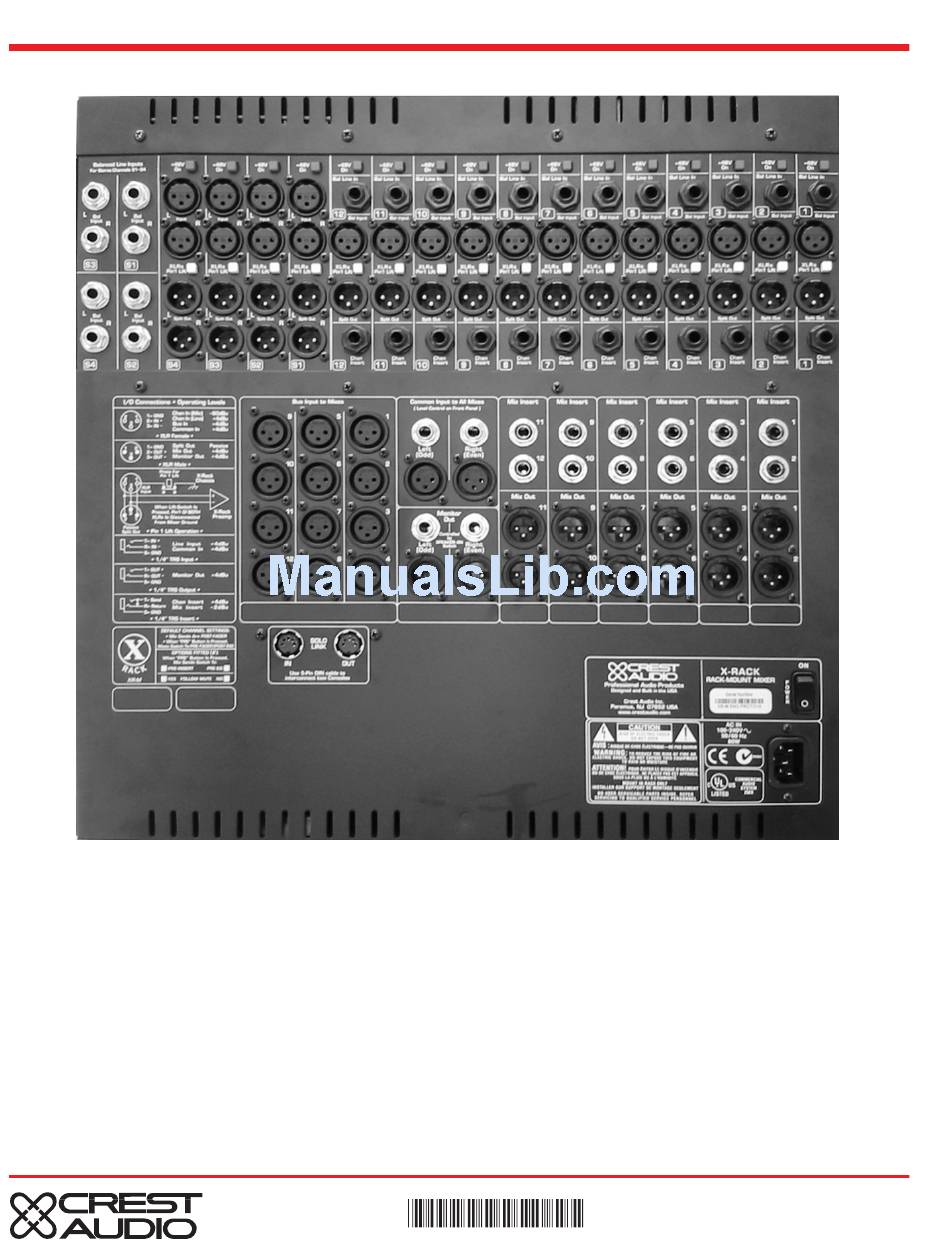

X-RACK Series XRM
Bal in (Mic/Line)
Split Out
Line-in
Bus inputs
Mix outputs
Direct out
Headphones
Dimensions
Weight
Internal Power Supply
*D7000030*
F-XLR 4k ohm balanced
max voltage gain to main outs = 98dB
M-XLR Passive 'Y' splitter
TRS >10k ohms balanced
XLR >10k ohms balanced
XLR 100 ohms balanced
1/4" TRS 50 ohms ground compensated
1/4" TRS to drive > eight-ohm phones
17.5" in height (10u) x 19" in width
4.5" in depth behind panel
30 lbs
100 -240 VAC, 50/60 Hz
Crest Audio Inc.
16-00 Pollitt Dr. Fair Lawn, NJ 07410 USA
TEL: 201.909.8700 FAX: 201.909.8744
www.crestaudio.com
