Drone Sky Hook DSH-LSL3-P4 Quick Installation & Operation Manual

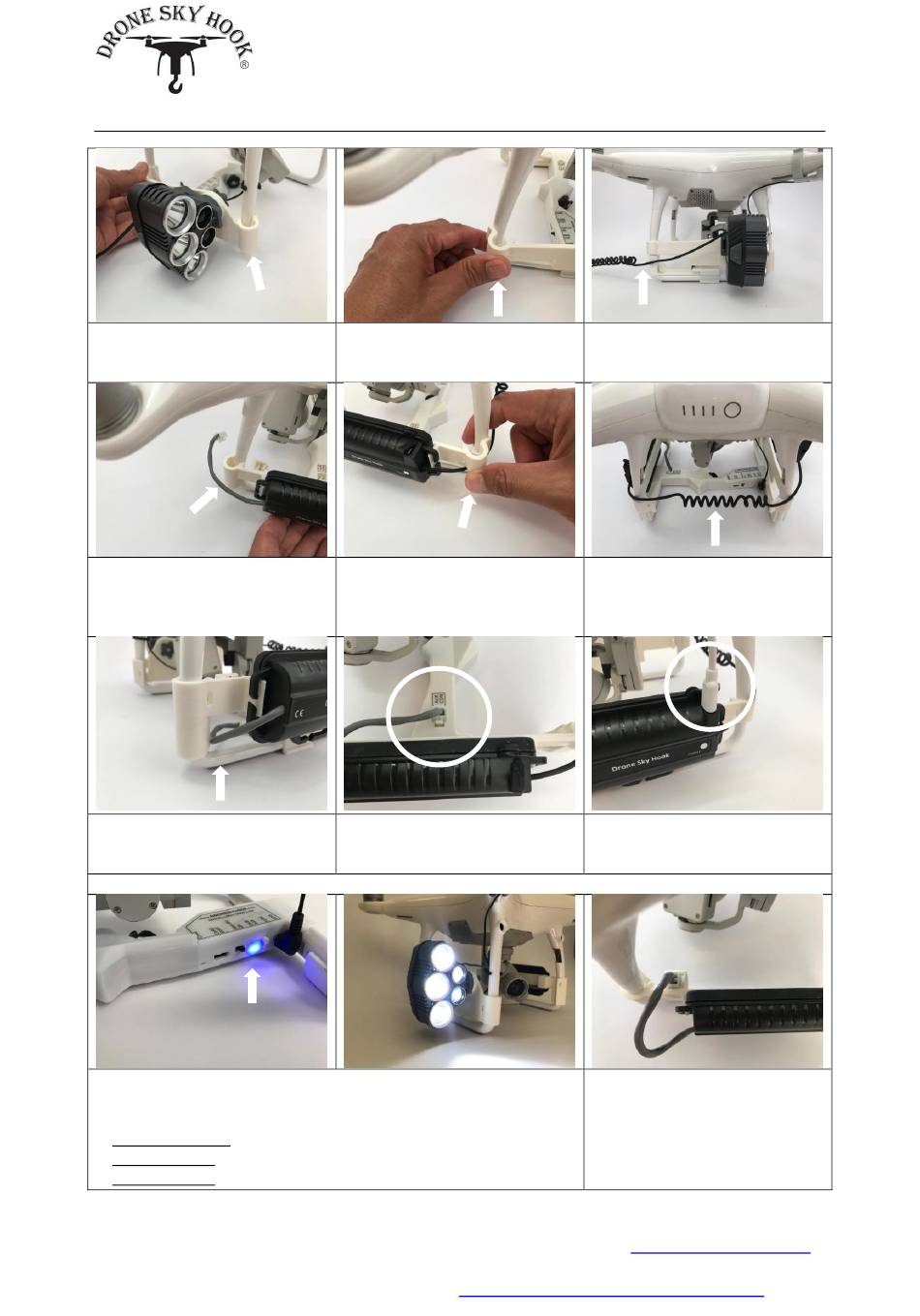

Quick Installation & Operation Guide
1
Slide the FRONT SIDE of the LED
bracket over the FRONT RIGHT
landing gear until it locks in place
4
Slide the FRONT SIDE of the
Battery-pack bracket over the
FRONT LEFT landing gear until it
locks in place
7
Route the GREY wire between the
Battery-pack bracket and the
landing gear
==========================================================================================
AUX Blue LED is ON
Operation when combined with the Sky Hook Release PLUS device:
Turn ON the Sky Hook's AUX Port to set the Searchlight ON.
1. Manual operation: Click 3 times on the Sky Hook's FUNC push-button
2. Drone's remote: Click 3 times on the assigned C1/C2 button
3. Drone's remote: Rotate the drone 2 FAST RIGHT Turns (clock-wise)
DRONE SKY HOOK Ltd.
For Installation and Operation videos visit
Drone-Sky-Hook
High Intensity LED Searchlight for DJI Phantom 4
2
Slide the REAR SIDE of the LED
bracket over the REAR RIGHT
landing gear until it locks in place
5
Slide the REAR SIDE of the Battery-
pack bracket over the REAR LEFT
landing gear until it locks in place
8
Connect the GREY wire plug to the
Sky Hook's AUX CON port and
verify it is locked in place
Model numbers: DSH-LSL3-P4
v1.0
3
IMPORTANT: Route the spiral wire
BEHIND the REAR RIGHT and REAR
6
Verify that the spiral wire is routed
BEHIND both REAR landing gears
CHARGING: Connect the Micro
USB cable to the battery-pack and
Operation when installing only
the Searchlight:
Connect the GREY wire plug to the
port socket on the battery pack to
set the Searchlight ON.
* Remote On/Off not avaliable for this setup *
www.droneskyhook.com
www.droneskyhook.com/product-support
LEFT landing gear
RED = Charging
GREEN = Fully Charged
to a USB charger
