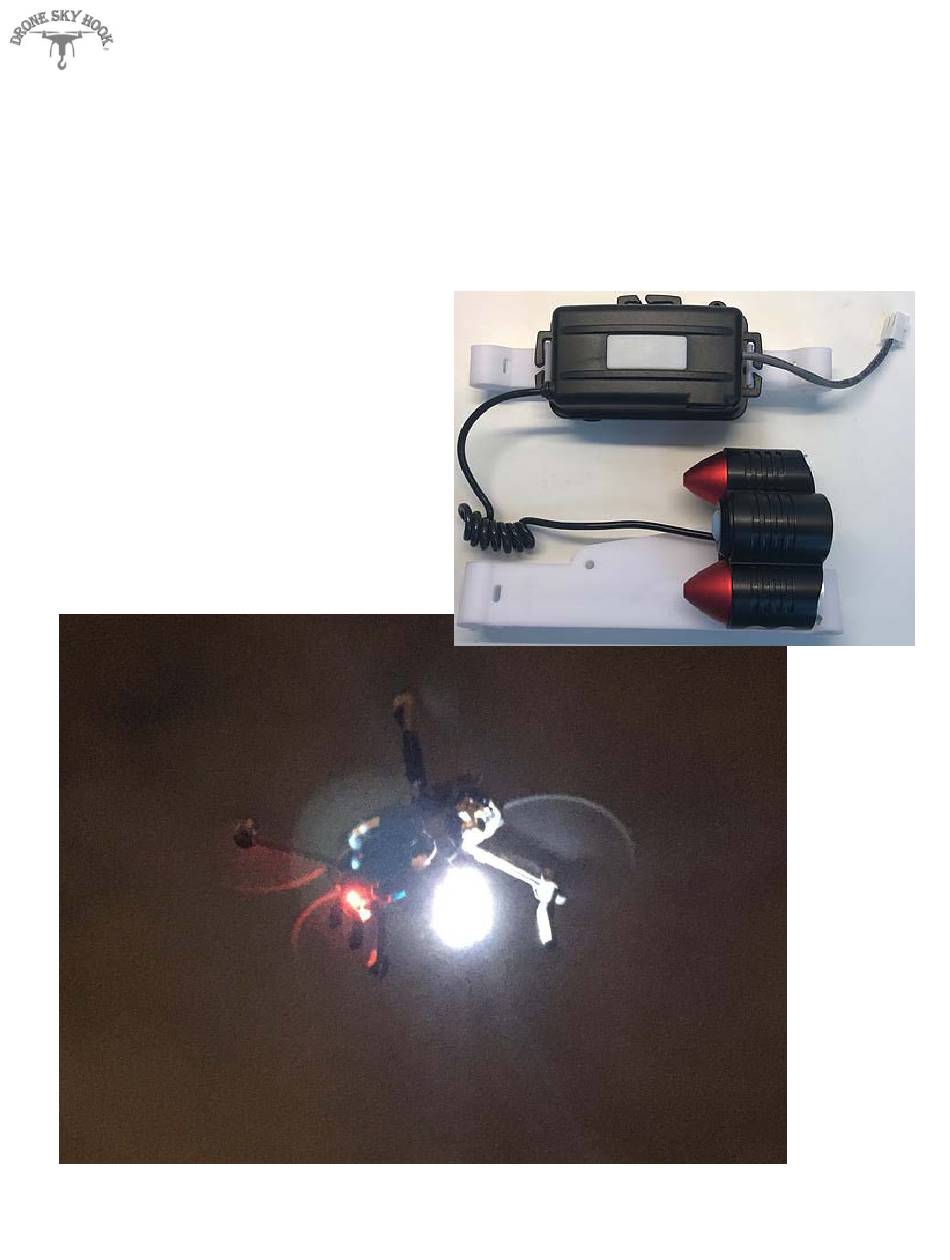

- Page 1 Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro/Pro Platinum Model: DSH-LSL1-MP Installation and Operation Guide V1.0 Page 1 of 17...
-
Page 2: Table Of Contents
www.droneskyhook.com Table of Contents Overview Overview of the LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum Applications Applications for the LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum Installation Installation of Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum... -
Page 3: Overview
www.droneskyhook.com Overview Overview of the LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum Revolutionary innovative design that perfectly fits your DJI Mavic Pro and Mavic Pro Platinum drones. Combine the LED Searchlight with Built-In Laser Pointer with Drone-Sky-Hook Release & Drop PLUS devices to enhance your DJI Drone night flight experience and see places in a different light at night! Multiple Searchlight ON/OFF Control modes to best suit your application: ... -
Page 4: Applications
Drone-Sky-Hook Release & Drop PLUS devices are required to control the LED Searchlight with Built-In Laser Pointer. Drone Sky Hook strongly recommends that you follow all laws and regulations in your area, closely check your surroundings prior to takeoff and keep away from civilians, properties, trees, buildings electric poles etc. -
Page 5: Installation
www.droneskyhook.com Installation Please click on the following links to watch the installation instructions videos: Installing the Drone-Sky-Hook LED SearchLight with Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum: https://youtu.be/nOF0XaSzA5o Installation of Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum Remove the original landing gear feet Install the extended landing gear feet (provided) - Page 6 www.droneskyhook.com Correctly orient the Release & Drop PLUS Device with the SearchLight mounting plate as shown Observe the correct orientation of the Release & Drop PLUS Device and insert it into the SearchLight mounting plate as shown. The Release & Drop PLUS Device should tightly fit into the existing holes and slots of the SearchLight mounting plate.
- Page 7 www.droneskyhook.com Verify the correct installation of the Release & Drop PLUS Device on the SearchLight mounting plate as shown. The Release & Drop PLUS Device should tightly fit into the existing holes and slots of the SearchLight mounting plate. Locate the SearchLight battery plug. It is a polarized connector with a locking tab. Observe the plug’s orientation and plug it into the AUX jack on the Release &...
- Page 8 www.droneskyhook.com Remove the original landing gear feet that came with the Release & Drop PLUS Device Install the extended landing gear feet (provided) Page 8 of 17...
- Page 9 www.droneskyhook.com Slide the complete assembly (Release & Drop PLUS Device with the SearchLight) into the front slots of the Mavic’s heatsink. Spread the rear sides of the Release & Drop PLUS Device with your fingers and insert them into both holes of the Mavic’s landing gear.
- Page 10 www.droneskyhook.com Lock down the Release & Drop PLUS Device rear rotating bracket until it locks in place Lock down the coiled cable holder into the Release & Drop PLUS Device rear rotating bracket Page 10 of 17...
- Page 11 www.droneskyhook.com Route the Light Sensor cable under the SearchLight mounting plate and orient the cable plug towards its jack located on the Release & Drop PLUS Device. Firmly plug the Light Sensor cable plug into its jack located on the Release & Drop PLUS Device.
- Page 12 www.droneskyhook.com Page 12 of 17...
-
Page 13: Operation
www.droneskyhook.com Operation Battery Charging of the Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Mavic Pro and Mavic Pro Platinum Charging Plug the provided USB cable to the Searchlight batteries box. Connect the other end of this cable to a standard 5V / 1A USB charger (like a mobile phone charger or other 5V / 1A charger. -
Page 14: Operation Of The Led Searchlight With Built-In Laser Pointer For Dji Mavic Pro And Mavic Pro Platinum
Please click on the following link to watch the use of the drone Remote Controller C1/C2 button to control and set the Drop Wheel and Searchlight. These videos are applicable for Mavic Pro, Mavic Pro Platinum, Phantom 4 and Phantom 3 together with Drone Sky Hook Release & Drop PLUS models only and a SearchLight. https://youtu.be/bG4lBDKNdKE https://youtu.be/l9lDXQcLWKQ... - Page 15 www.droneskyhook.com SearchLight operation modes Before takeoff loosen the rotation knob, rotate your LED Searchlight to the desired angle and tighten the rotation knob Page 15 of 17...
- Page 16 www.droneskyhook.com Page 16 of 17...
-
Page 17: Drone-Sky-Hook Release & Drop Device (Plus Models Only) - Control Modes Of The Aux Channel To Turn The Searchlight On Or Off
www.droneskyhook.com Operation Drone-Sky-Hook Release & Drop Device (PLUS models only) – Control Modes of the AUX Channel to Turn the SearchLight On or Off DSH Models: Single Release & Drop PLUS / Dual Release & Drop PLUS Operation Mode 1 – Drone Rotation Remote Controller (Mode 2) Operation LEFT STICK...
