- Page 1 Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 Model: DSH-LSL1-P4 Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Phantom 3 Model: DSH-LSL1-P3 Installation and Operation Guide V1.0 Page 1 of 12...
-
Page 2: Table Of Contents
www.droneskyhook.com Table of Contents Overview Overview of the LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Applications Applications for the LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Installation Installation of Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Operation Battery Charging of the Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI... -
Page 3: Overview

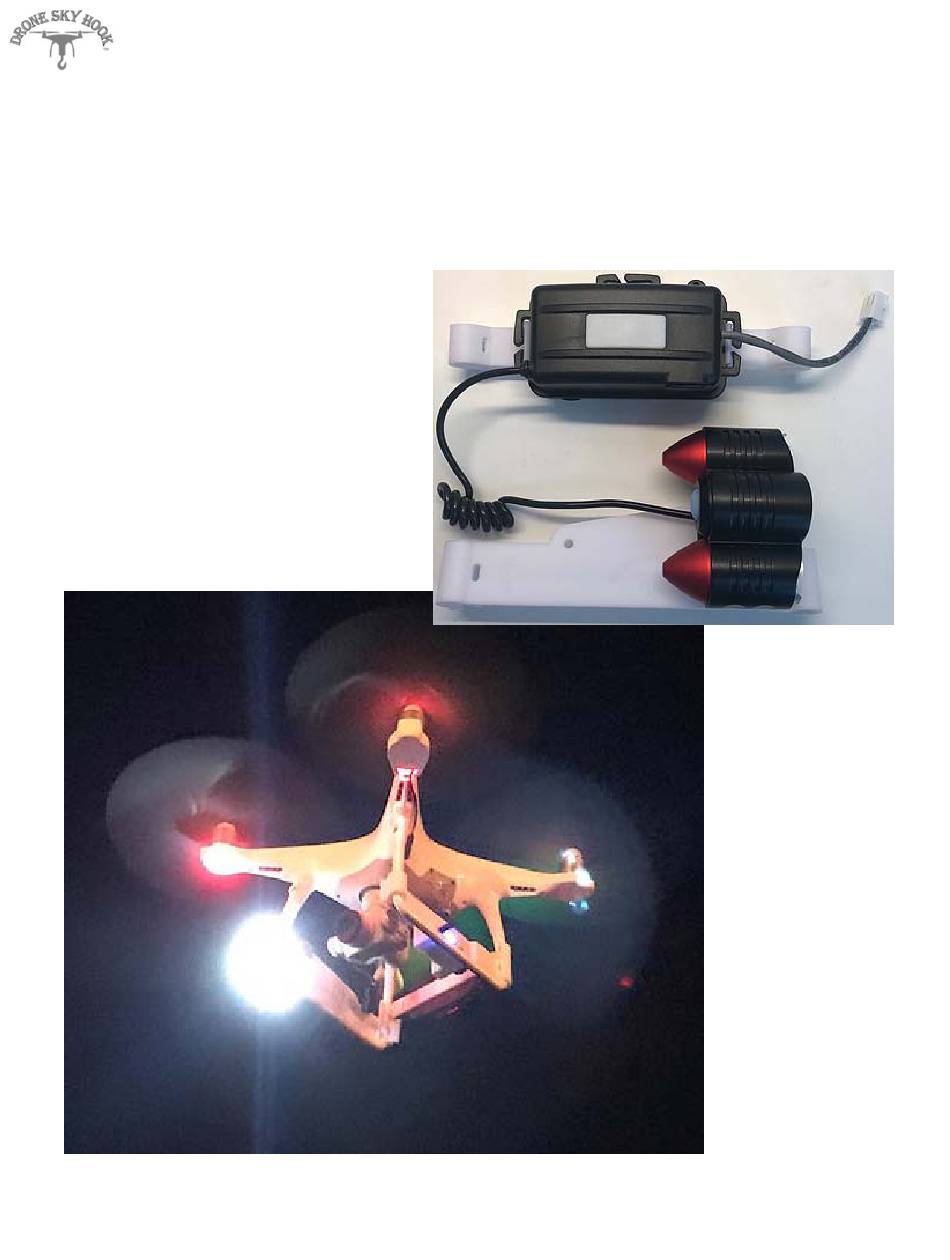

www.droneskyhook.com Overview Overview of the LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Revolutionary innovative design that perfectly fits your DJI Phantom 4 and Phantom 3 series drones. Combine the LED Searchlight with Built-In Laser Pointer with Drone-Sky-Hook Release & Drop PLUS devices to enhance your DJI Drone night flight experience and see places in a different light at night! Multiple Searchlight ON/OFF Control modes to best suit your application: ... -
Page 4: Applications
Drone-Sky-Hook Release & Drop PLUS devices are required to control the LED Searchlight with Built-In Laser Pointer. Drone Sky Hook strongly recommends that you follow all laws and regulations in your area, closely check your surroundings prior to takeoff and keep away from civilians, properties, trees, buildings electric poles etc. -
Page 5: Installation
www.droneskyhook.com Installation Please click on the following links to watch the installation instructions videos: Installing the Drone-Sky-Hook LED SearchLight with Laser Pointer for DJI Phantom 4 and Phantom 3: https://youtu.be/bU9jmW959yA Installation of Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Insert one side of the SearchLight mounting bracket into the Phantom 4/3 front landing gear and snap-on the other side Insert one side of the SearchLight battery mounting bracket into the Phantom 4/3 landing gear and snap-on the other side... - Page 6 www.droneskyhook.com Locate the SearchLight battery plug. It is a polarized connector with a locking tab. Observe the correct orientation of the SearchLight battery plug and plug it into the AUX jack on the Release & Drop PLUS Device. The plug should be locked to the AUX jack. Move the battery cable towards the nearest landing gear and away from the view of the sensors located on the bottom side of the Phantom (VPS sensors).
- Page 7 www.droneskyhook.com Page 7 of 12...
-
Page 8: Operation
www.droneskyhook.com Operation Battery Charging of the Drone-Sky-Hook LED SearchLight with Built-In Laser Pointer for DJI Phantom 4 and Phantom 3 Charging Plug the provided USB cable to the Searchlight batteries box. Connect the other end of this cable to a standard 5V / 1A USB charger (like a mobile phone charger or other 5V / 1A charger. -
Page 9: Operation Of The Led Searchlight With Built-In Laser Pointer For Dji Phantom 4 And Phantom
Please click on the following link to watch the use of the drone Remote Controller C1/C2 button to control and set the Drop Wheel and Searchlight. These videos are applicable for Mavic Pro, Mavic Pro Platinum, Phantom 4 and Phantom 3 together with Drone Sky Hook Release & Drop PLUS models only and a SearchLight. https://youtu.be/bG4lBDKNdKE https://youtu.be/l9lDXQcLWKQ... - Page 10 www.droneskyhook.com SearchLight operation modes Before takeoff loosen the rotation knob, rotate your LED Searchlight to the desired angle and tighten the rotation knob Page 10 of 12...
- Page 11 www.droneskyhook.com Page 11 of 12...
-
Page 12: Drone-Sky-Hook Release & Drop Device (Plus Models Only) - Control Modes Of The Aux Channel To Turn The Searchlight On Or Off
www.droneskyhook.com Operation Drone-Sky-Hook Release & Drop Device (PLUS models only) – Control Modes of the AUX Channel to Turn the SearchLight On or Off DSH Models: Single Release & Drop PLUS / Dual Release & Drop PLUS Operation Mode 1 – Drone Rotation Remote Controller (Mode 2) Operation LEFT STICK...
