OMT FBA-BJSN401LB User Manual

Ball joint removal & installation tool
Hide thumbs

Advertisement

Table of Contents

V20221219
Ball Joint Removal & Installation Tool
User Manual
Read Carefully Before Use
Keep for Future Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBA-BJSN401LB and is the answer not in the manual?

Questions and answers

Related Manuals for OMT FBA-BJSN401LB

Summary of Contents for OMT FBA-BJSN401LB

  • Page 1 V20221219 Ball Joint Removal & Installation Tool User Manual Read Carefully Before Use Keep for Future Reference...

  • Page 2: Safety Information

    Safety Information Warning! • The instructions provided herein are only for general information. ALWAYS perform all repairs in full compliance with your vehicle’s service manual. After any repair, test your vehicle in your workshop and at low speed before returning to normal use. Failure to do so may result in serious property damage and severe personal injury.

  • Page 3: Package List

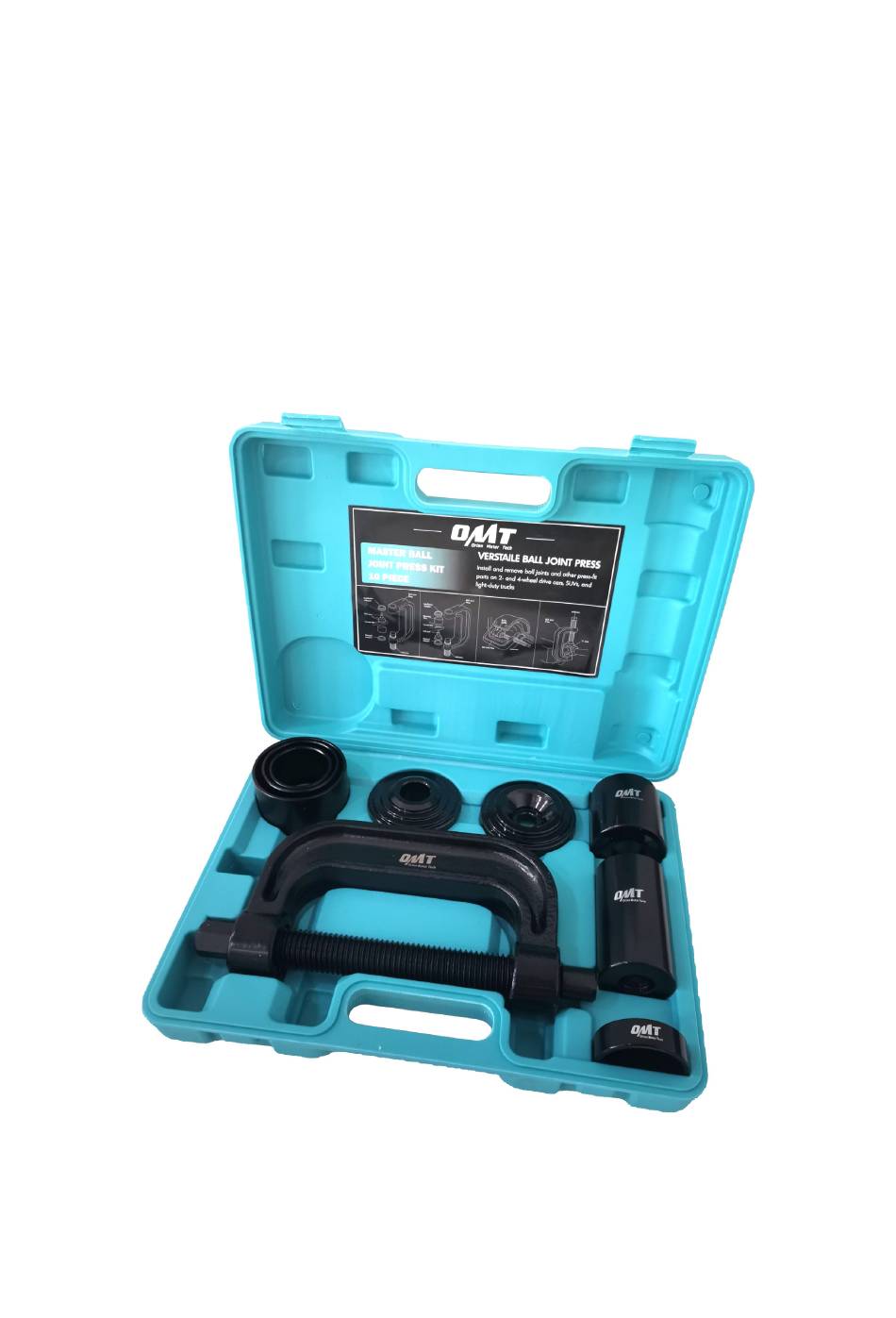

    Package List Name 6¼×2¼ in. C-Frame Forcing Bolt ⅞ in. Center Rod ⅞×2¼ in. Installation Cup Adapter Removal Adapter Installation Adapter 1¾×2 in. Receiving Tube 1¾×2½ in. Receiving Tube 2¼×3 in. Receiving Tube 3¾×2 in. Installation Cup 2½×2¼ in. Receiving Cup Operation ALWAYS assemble and operate the tool in full compliance with your vehicle’s service manual.
  • Page 4 Ball Joint Installation 1. Chock and jack up the vehicle. For best results, secure a raised vehicle with one or more jack stands or other appropriate supporting equipment. 2. Use a wire brush (not included) to clean the control arm and lubricate its inside with high- quality anti-corrosive oil.

  • Page 5: Maintenance

    U-Joint Servicing 1. Remove any internal and external lock rings. 2. Assemble the ball joint press by screwing the jackscrew into the C-frame. 3. Position the press around the drive shaft yoke according to Fig. 4 and tighten the jack screw until the first bearing is removed.
  • Page 6 Fitment Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Note: Compatibility is not limited to the specific models listed. Buick Rainier 04-07 Lower 03-13 Lower DeVille (HD Suspension, 96-99 Lower Cadillac Limo Commercial Chassis) 99-00 Lower Escalade 02-07 Lower C/K 1500 4WD 96-99 Lower...
  • Page 7 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Corvette 84-96 Lower Express 1500 03-15 Lower Express 2500 w/ 03-14 Lower 7300 lbs GVW Express 2500 w/ 03-14 Lower 8500 lbs GVW Express 3500 96-14 Lower Silverado 2500 & 2500 1999 Lower HD 4WD...
  • Page 8 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Tahoe 2WD New Style 2000 Lower (Exel. Limited) Silverado 1500 4WD 99-06 Lower Silverado 1500 4WD 2007 Lower (Old Style) Silverado 1500 HD 01-07 Lower 2WD/4WD Chevrolet Silverado 2500 01-07 Lower 2WD/4WD Suburban 1500 4WD 96-99...
  • Page 9 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 1-ton solid axle, 2WD; 3/4-, 1-ton Dana 60 94-97 Upper axle, 4WD 1-ton solid axle, 2WD; 3/4-, 1-ton Dana 60 94-97 Lower axle, 4WD 1/2-, 3/4-ton Dana 44 94-06 Lower axle, 4WD 1/2-, 3/4-ton Dana 44 94-06 Upper...
  • Page 10 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Dodge 3500 2WD w/lFS 94-99 Lower Dodge Ram 1500 4WD 2006 Lower Dodge Ram 1500 4WD 94-99 Lower Ram 2500 4WD w/ 94-99 Lower Dana 44 Axle Dodge Ram 1500 4WD w/ 00-01 Lower 216 FBU Axle...
  • Page 11 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Dodge Ram Van 95-03 Lower 1500/2500/3500 Dodge Ram 1500 02-05 Lower 2WD/4WD Dodge Ram SRT-10 04-06 Lower Dodge Ram 2500 4WD w/ 94-99 Lower Dana 60(4500 lb axle) Dodge Ram 3500 4WD w/ 94-99 Lower Solid AxleRam 3500 4WD...
  • Page 12 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Nitro 2WD/4WD 07-12 Lower Ram 3500 4WD 96-99 Upper Dodge Sprinter 2500 03-10 Lower Sprinter 3500 03-10 Lower 300C RWD 05-10 Lower Aspen 2WD/4WD 07-09 Lower Grand Voyager 2000 Lower Chrysler Pacifica FWD/AWD 05-08 Lower...
  • Page 13 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Accord Sedan & 98-02 Lower Coupe Lower Bronco 80-96 Upper Lower Bronco II 4WD w/ 84-90 Dana 28 Axle Upper Lower Bronco II 4WD w/ 1990 Dana 35 Axle Upper Crown Victoria 95-02 Lower 92-04...
  • Page 14 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 97-02 Lower Expedition 2WD/4WD 03-17 Lower F250 4WD (Under 97-99 Lower 8500 lbs. GVW) 94-04 Lower Mustang 05-14 Lower Probe 89-97 Lower 2WD Bronco II 89-90 Upper 2WD Bronco II 87-88 Lower 2WD Explorer 91-94...
  • Page 15 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 1/2-ton 2WD Pickup 81-86 Upper 80-95 Lower 4WD Bronco 80-96 Upper 4WD Bronco II w/Dana 28 1980 Upper 4WD Bronco II 84-89 Upper 4WO Explorer w/Dana 28 91-94 Upper 4WD Ranger w/Dana 28 91-97 Upper 4WD Ranger...
  • Page 16 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Explorer 4WD w/ 91-93 Lower Dana 35 Axle Explorer 4WD w/ 91-94 Lower Dana 28 Axle Explorer 4WD w/ 93-94 Lower Dana 35 Axle F-150 4WD HD 80-96 Lower F-150 2WD/ 87-97 Upper F-350 2WD...
  • Page 17 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Explorer 4WD w/ 91-93 Upper Dana 35 Axle F250 4WD 97-99 Lower (Under 8500 lbs. GVW) F-150 Heritage & Lightning -2004 Lower Explorer 2WD/4WD 96-05 Lower F-350 4WD 92-97 Upper (Monobeam Axle) F-250 Super Duty 2W/4WD 99-08 Upper...
  • Page 18 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint F-150 2WD/4WD 97-03 Lower Explorer Sport/ 01-05 Lower Sport Trac 2WD/4WD 2WD/4WD 04-08 Lower F-450 SD 2WD/4WD 05-08 Upper F-550 SD 2WD/4WD 05-08 Upper 1-ton 4WD w/solid axle 96-97 Lower 1/2- 3/4- 1-ton 4WD 80-96 Upper (IFS)
  • Page 19 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 1500 2WD 91-92 Lower 1500 4WD 96-99 Lower 2500 2WD w/ 91-92 Lower 7200 lbs GVW 2WD S-10 Blazer, 82-97 Lower Jimmy, & Pickup 1/2- 3/4- 1-ton 4x4 96-97 Lower 4WD 1/2-, 3/4- ton Pickups, Suburban, 96-06 Lower...
  • Page 20 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Sierra 1500 4WD 99-07 Lower Sierra 1500 HD 2WD/4WD 00-07 Lower Sierra 2500 2WD/4WD 01-04 Lower Sierra 2500 4WD 99-00 Lower Sierra 2500 HD 2WD/4WD 01-11 Lower Sierra 3500 2WD/4WD 01-11 Lower Sierra Denali 02-07...
  • Page 21 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Accord Sedan & Lower in 98-02 Coupe Spindle Odyssey 95-98 Lower Honda Odyssey Vans 99-04 Lower Prelude 92-99 Lower Hummer 03-09 Lower Ascender 2WD/4WD 03-08 Upper Isuzu Oasis 96-99 Lower Commander 06-10 Lower 2WD/4WD...
  • Page 22 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 4WD Grand Cherokee 93-95 Lower Grand Wagoneer 93-95 Lower 4WD Wrangler 90-98 Lower 2WD &4WD Wagoneer, 90-95 Lower Comanche, Cherokee 2WD Cherokee, Wagoneer, 84-89 Lower Comanche 4WD Wagoneer, Jeep Comanche, 84-89 Lower Cherokee Full size 4WD Grand...
  • Page 23 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint 83-97 Lower Upper B-2300 2WD 94-97 Lower B-2300 2WD w/ 01-04 Lower Coil Spring suspension B-2300 2WD w/ 2001 Lower Torsion bar suspension B-2300 2WD/4WD 05-09 Lower B-2300 2WD/4WD w/ 01-04 Lower Torsion bar suspension Mazda...
  • Page 24 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint B-3000 2WD w/ 98-04 Lower Coil Spring Suspension B-3000 2WD w/ 98-01 Lower Torsion Bar Suspension B-3000 2WD/4WD 05-09 Lower B-3000 2WD/4WD w/ 02-04 Lower Torsion bar suspension Upper B-3000 4WD 94-96 Lower B-3000 4WD w/...
  • Page 25 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint MX-6 88-97 Lower Upper Navajo 2WD 92-94 Lower Lower 91-93 (Uses Mazda Pinch Bolt) Navajo 4WD w/ 93-94 Lower Dana 35 Axle Upper 91-94 (uses Pinch Bolt) Grand Marquis 95-02 Lower Mercury Mountaineer 97-05...
  • Page 26 Part Fitment (R=Remove I=Install Rl=Remove/Install) Make Model Years Joint Plymouth Voyager 84-00 Lower Saab 9-7x 05-08 Lower 4Runner 96-02 Upper Echo 00-05 Lower Sequoia 01-08 Upper Tacoma 4WD 95-04 Upper Toyota Tacoma Prerunner 95-04 Upper Tacoma 05-15 Lower Tundra 00-06 Upper Contact Us Thank you for choosing our products! If you have any questions or comments,...
