OMT F001ETT User Manual

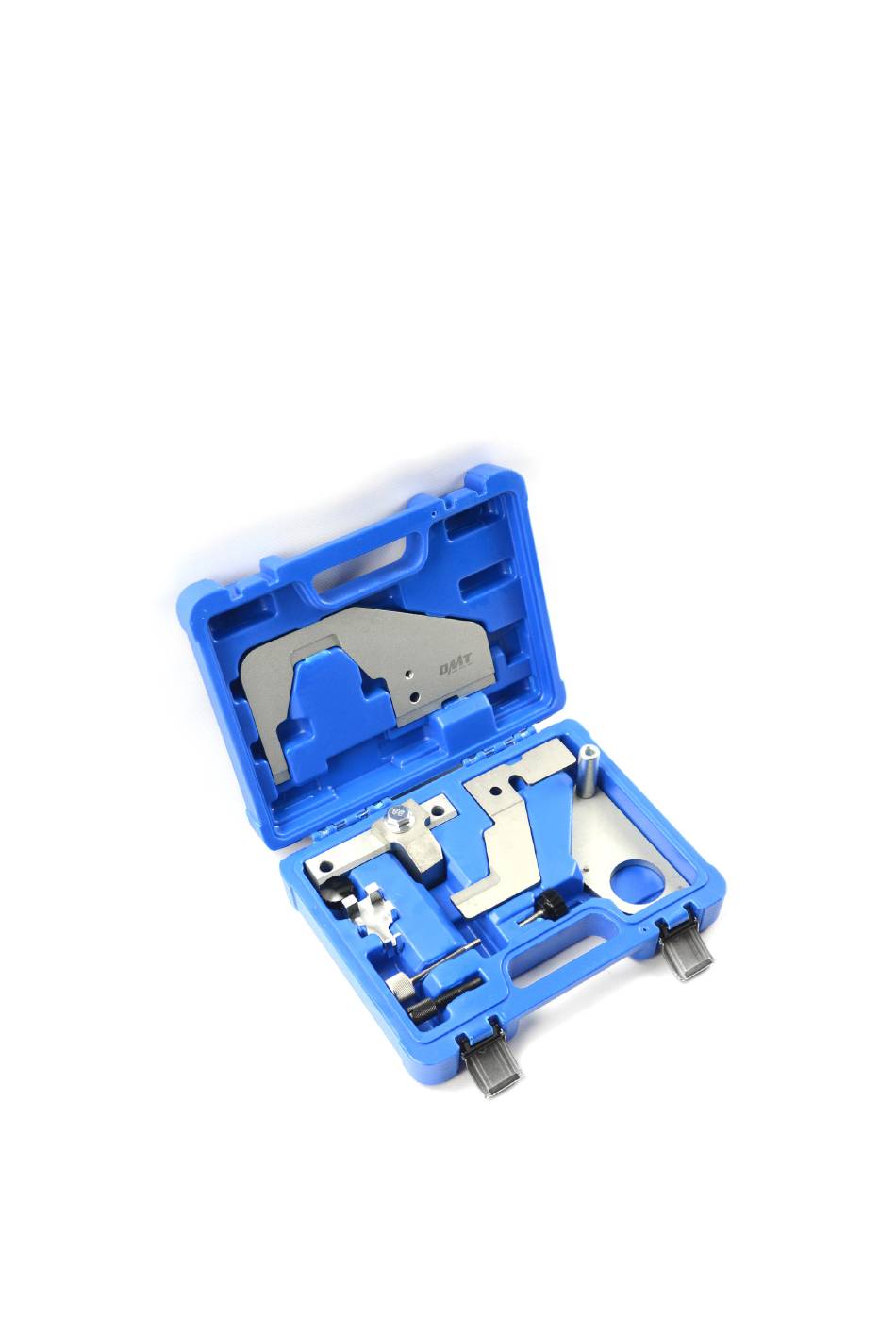

Camshaft timing locking tool kit
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

V20230214
Camshaft Timing Locking Tool Kit
User Manual
Read Carefully Before Use
Keep for Future Reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F001ETT and is the answer not in the manual?

Questions and answers

Related Manuals for OMT F001ETT

Summary of Contents for OMT F001ETT

  • Page 1 V20230214 Camshaft Timing Locking Tool Kit User Manual Read Carefully Before Use Keep for Future Reference...

  • Page 2: Safety Information

    Safety Information Warning! • The instructions provided herein are only for general information. ALWAYS perform all repairs in full compliance with your vehicle’s service manual. After any repair, test your engine and vehicle in your workshop and at low speed before returning to normal use. Failure to do so may result in brake failure, serious property damage, and severe personal injury.

  • Page 3: Specifications

    Specifications Material AISI 1045 Steel, High-Density Polyethylene, Polypropylene Case Dimensions 10.5×8.5×2.8 in. 26.7×21.5×7 cm Net Weight 5.5 lb. 2.5 kg Package List Name Camshaft Alignment Plate 303-1504 Flywheel Holding Tool 303-1594 Camshaft Alignment Plate 303-1600, 300-1565 Crankshaft Sensor Alignment Tool 303-1521 Crankshaft Alignment Pin —...

  • Page 4: Operation

    Operation Adjusting timing belts is a difficult and time and labor intensive process whose details can vary greatly from model to model. It is highly recommended that you seek out the specific instructions for each step of the process for your vehicle or work with a mechanic. 1.

  • Page 5: Maintenance

    • To use camshaft holder C, install the tool on the end of your engine’s camshafts. The camshaft timing slots are offset. If the tool cannot be installed, remove your TDC timing peg and rotate the crankshaft three-fourths of a revolution clockwise and replace the timing peg. Secure the holder with the camshaft holder knob.
  • Page 6 Engine Codes EcoBoost MGDA R9CB R9CD R9CF R9CH R9CI R9DA R9DB R9DC 2.0L R9DD TNBA TNBB TNCC TNCD TNCF TNWA TNWB TPBA TPWA XQDA EcoBoost 2.3L YVDA Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at help@cs-supportpro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
