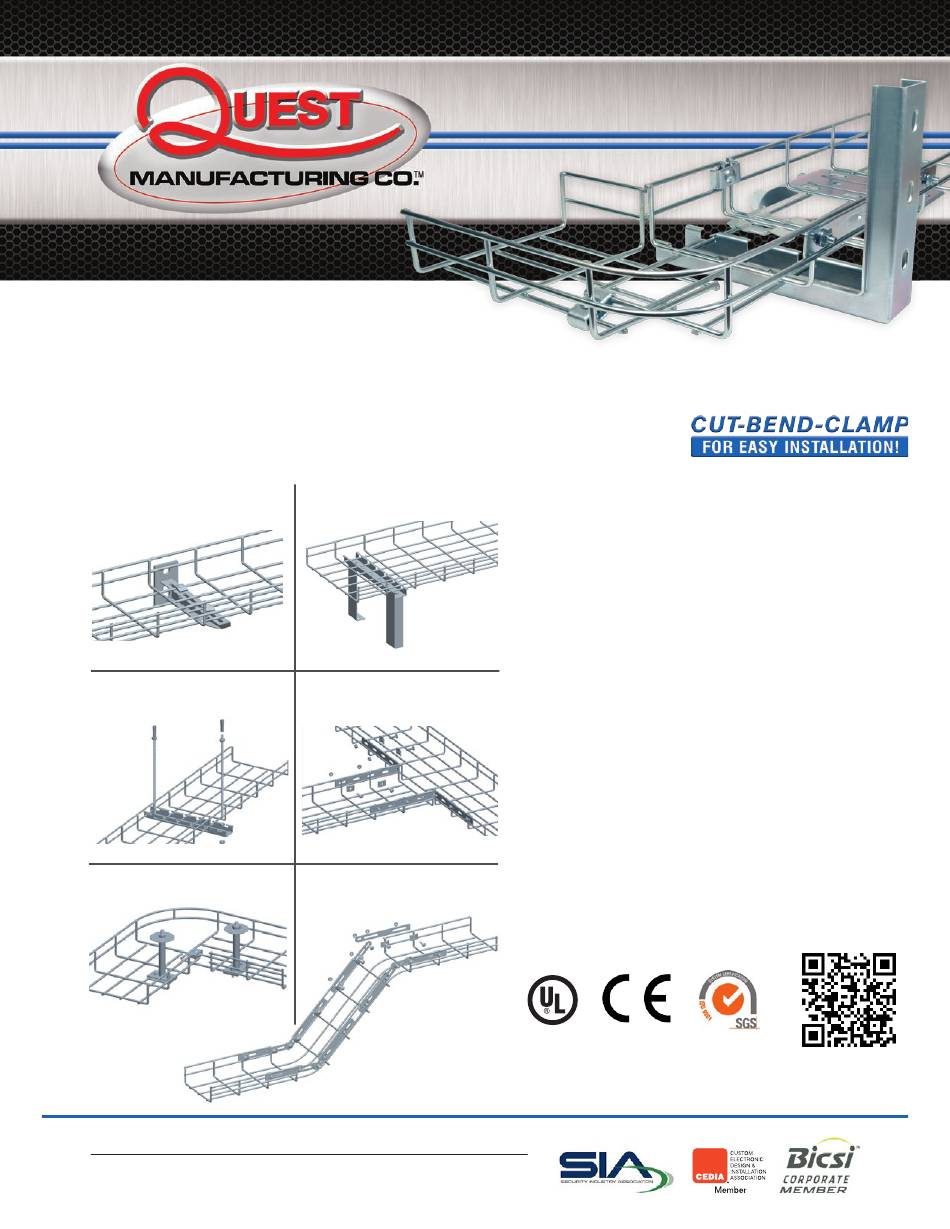

Quest Engineering CT0504-03 Manual

Wire Mesh Cable Tray System
for Channeling of Cable Wiring
A Simple-to-Install basket cable tray for safe and proper
installation of facility wiring in the ceiling and under the floor.
Wall Mount
Ceiling Mount
Corners
Quest Manufacturing Corp.
www.QuestManufacturing.net
Toll Free 800.280.1067
Floor Mount
Tray Splices
Custom Configurations
Phone 305.513.8583
Fax 305.513.9675
Features
► Available in 5 ft. and 10 ft. lengths
► Electro Zinc Plated for a professional look
► Full line of accessories are available to mount on
the wall, from the ceiling or under the floor
► Cuts easily with bolt cutter for custom configurations
► Cable Trays bolt together to any custom configuration
► Stackable Cable Guides available to separate and
secure cables in place
► Complete line of accessories available
Cable Tray Material
► Carbon Steel Q235
Surface Finish for cable basket trays
► Electro zinc plating for indoor usage according
to BS EN 12329-2000
Dimensions for cable basket trays
► Height: 2ʺ (50 mm)
► Widths: 4ʺ, 6ʺ, 8ʺ, 12ʺ (100, 150, 200, 300 mm)
► Length: 5ʹ, 10ʹ (1524, 3048 mm)
► Diameters of tray wires: 0.18ʺ (4.5 mm)
Scan here to View
Cable Tray Video
