Quest Engineering QR2 Installation Manual

Pan/tilt wall mounting system

QR2 Rigging Installation Guide

QR2: Pan/Tilt Wall Mounting System

Order Ref: ACHPI-QR2

Kit Contents

• Wall-Mount assembly (swivelling)

• i-Spine

• Quick pin 8x50

• Screws (2x M10)

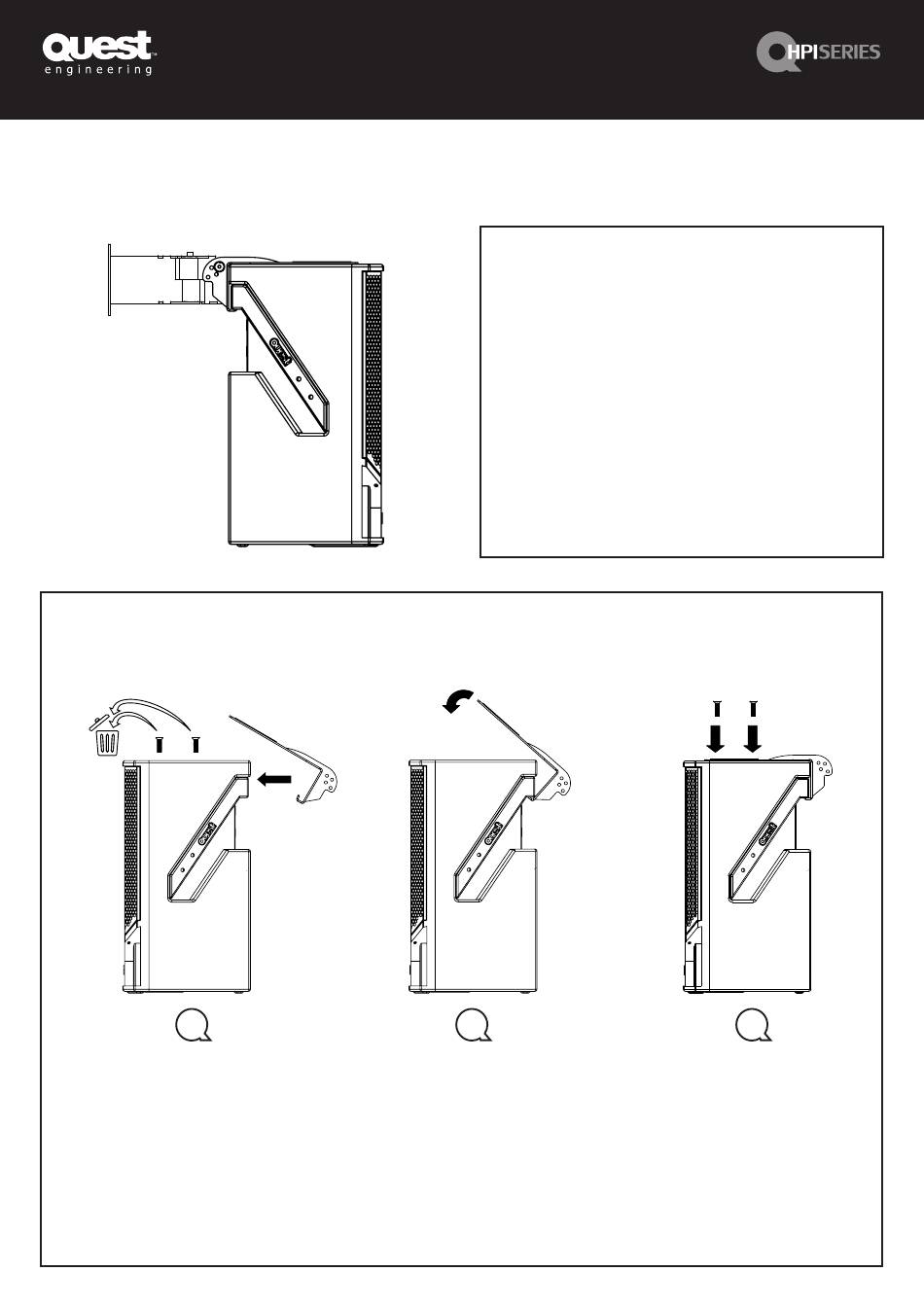

Remove the 2 top screws

Swing it flat on the top of

Bolt in and secure the Spine

that are installed in the

the speaker box.

(using fastener securing

speaker then insert the lip

compound) onto the

of the Spine to grab the

speaker with the 2 x M10

casing handle.

bolts included.

NOTE: The 2 x M10 bolts supplied with both the i-Spine should replace the previously installed screws in the speaker.

The M10 bolts are designed with a longer thread which provides increased strength and security to the system.

Table of Contents

Do you have a question about the QR2 and is the answer not in the manual?

Page 1 QR2 Rigging Installation Guide QR2: Pan/Tilt Wall Mounting System Order Ref: ACHPI-QR2 Kit Contents • Wall-Mount assembly (swivelling) • i-Spine • Quick pin 8x50 • Screws (2x M10) Installing the i-Spine Remove the 2 top screws Swing it flat on the top of...
Page 2 QR2 Rigging Installation Guide Mounting the Speaker to the Wall Bracket Once the spine has been installed, mount to the wall bracket as follows: 1. Bolt the wall mount assembly (without the speaker attached) onto the wall. 2. Lift the speaker (now installed with Spine) and hook it onto the wall-mount. The wall-mount is designed to safely support the weight of the box from this point.
Page 3 QR2 Rigging Installation Guide Safety Precautions Avoid installing the mounting Check to confirm that suspension hardware on unstable structures, wires are strong enough, correctly such as on unreinforced walls or terminated and sufficient to carry the ceiling beams that are not designed total load with at least a 4:1 safety to carry extra weight.
Page 4 Quest Engineering Pty. Ltd. 130 - 140 Melrose Drive, Tullamarine Vic. 3043 Australia Phone: +61 (03) 8373 6868...
