Quest Engineering QR5 Installation Manual

QR5: Vertical Dual Speaker Array
Introduction
The QR5 kit is a specialised two
speaker vertical array box hang. The
link bar allows for two speakers to
be hung from the same point with
individual control over the angle of
each cabinet.
Hang Installation
QR5 Rigging Installation Guide

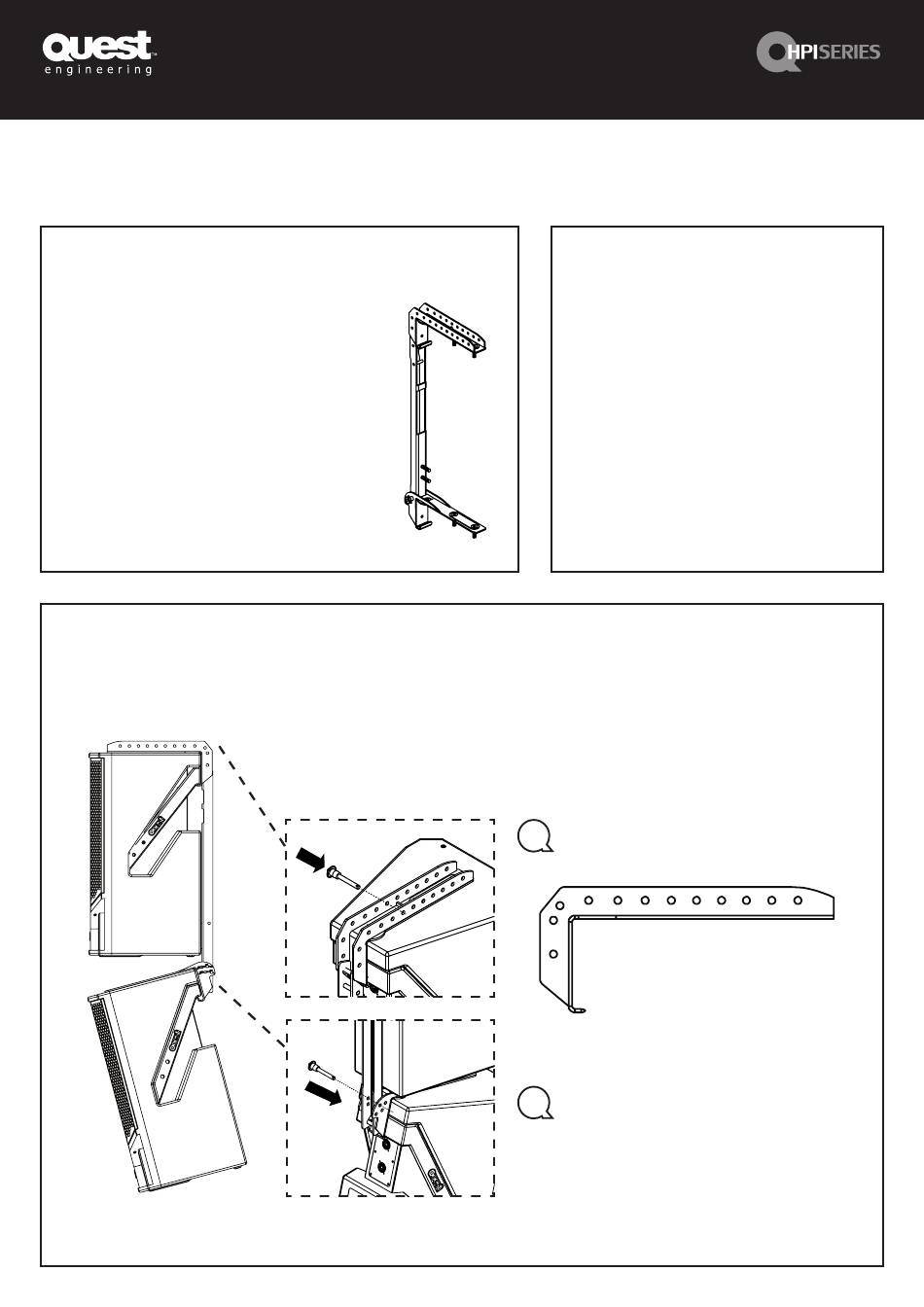

The tilt angle of the vertical hang is controlled by the
shackle location on the top box Touring Spine (1)
The tilt angle for the bottom box is the locking pin at the
base of the hanging bar controlling the tilt angle on the
lower box installation spine (2)
Order Ref: ACHPI-QR5

Kit Contents

• Vertical Hanging Link Bar
• Touring Spine assembly
(includes 1 ball lock pin +
2M10 screws)
• Installation Spine (includes 1
ball lock pin + 2M10 screws)
Note: Hanging shackle not
supplied
Move ball lock pin to connect
1
shackle for desired tilt angle
Insert ball lock to set tilt angle
2
of lower box
