Quest Engineering QT860 Installation Manual

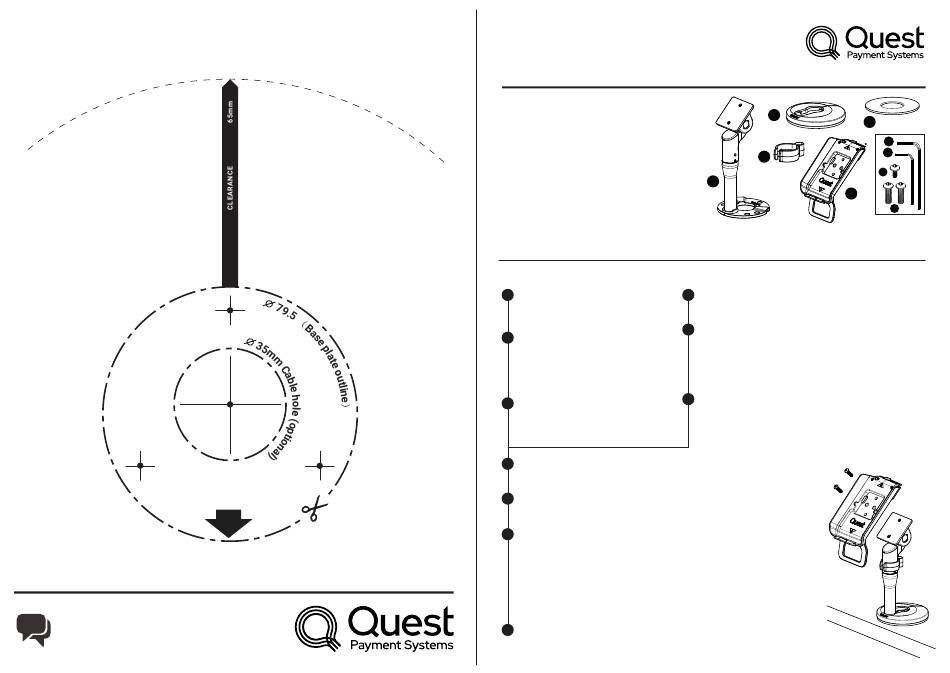

Drill & Positioning Template
Check template is 100% scale by overlaying Stand onto printed Template below.
TOP VIEW
2
FRONT OF STAND
If you require assistance with this
product, please contact your
nominated support help desk.
1
3
QT860 Countertop Stand
Installation Guide
120-0050-01
Parts list:
A. Metal Countertop Stand F. 2x M4 Screws (Long)
B. Base plate Cover G. 1x Large Hex Key
C. Cable Clip H. 1x M3 Security Screw
D. QT860 Holster Assembly (optional)
E. 12V Power Supply with I. 1x Small Hex Key
Cable J. Adhesive Patch
K. IPA Cleaning Wipe
Placement guidelines
• When a Terminal is fitted to the Stand, it requires 65mm
(minimum) of clearance from the back edge of the baseplate
(see guide over page). This zone will allow the Terminal to
swivel and tilt uninterrupted.
• Cut out the Drill template to determine the optimum position
to mount the stand on the countertop. Measure twice, cut
once!
Installing using Screws
1
Determine optimum placement
• Cutout the Drill template over the page.
Use it to determine optimum location of
Stand for usability and functionality.
2
Mark and drill holes
• Mark three screw locations onto the
countertop using the Drill template. Drill 3
holes to suit the chosen fasteners.
• Optional - Mark and drill the large Cable
pass through hole.
3
Install the Countertop Stand
• Fasten the base plate to the Countertop
with the appropriate screws (not supplied
by Quest).
4
Fit plastic Base Plate Cover
• Clip the Cover onto the base plate of the Stand by flexing the cover around the pole and
clicking over the baseplate.
5
Fit the Holster Assembly
• Align the holes on the Holster Assembly with the holes on the Stand. Secure Holster
with the two M4 screws using the Large Hex Key. (See Figure 1)
6 Power up
• Plug the 12V Power supply into a nearby power outlet (Note: Cable length = 1.5 metres).
• If drilled, pass cable up though the large cable hole in the countertop.
• Press the power cable into the Cable clip (item C). Attach the Clip to the Stand by flexing
it over the pole. Click Clip into matching 2 holes on the pole (see Figure 1)
• Plug in the Power supply cable into the back of the Holster Assembly.
• Switch on power at the outlet. Check the light on back of the Holster Assembly
illuminates.
7
Fit the QT860 Terminal
• Fit a QT860 Terminal onto the Holster by placing nose down first, then rotate back.
Ensure the Latch on the Holster latches the Terminal as expected.
B
C
A
D
Note: No screw fasteners are provided. The installer must select and supply
the appropriate fastener style to suit the installation. Ensure the fastener
head will fit under the Base plate cover (item B).
Installing using Adhesive
1
Prepare the surfaces
• Clean and degrease the under side of the Stand (item A), and the
countertop surface with the IPA cleaning wipe provided.
2
Applying Adhesive Patch to Stand
• Remove the white paper liner from the Adhesive patch.
• Temporarily place Adhesive patch on the countertop with the
exposed adhesive side facing up.
• Align the baseplate of the Stand onto the Adhesive patch and press
down firmly to ensure good application.
3
Securing the Stand to the Countertop
• Peel the red plastic liner from Adhesive patch using the pull tab.
• Orientate the Stand in the desired location on the countertop (pole
to be nearest the user). Press Stand base plate with Adhesive firmly
onto the countertop to achieve a good bond. NOTE: (80% bond
strength is achieved in 20 minutes. 100% bond strength is achieved
in 24 hours).
Figure 1
J
G
I
H
F
Fastener Kit
