Trixie Altea 43882 Assembling Instruction & Part List

Item
Cat Tree
No.
4388 Altea
Pos. No. Description

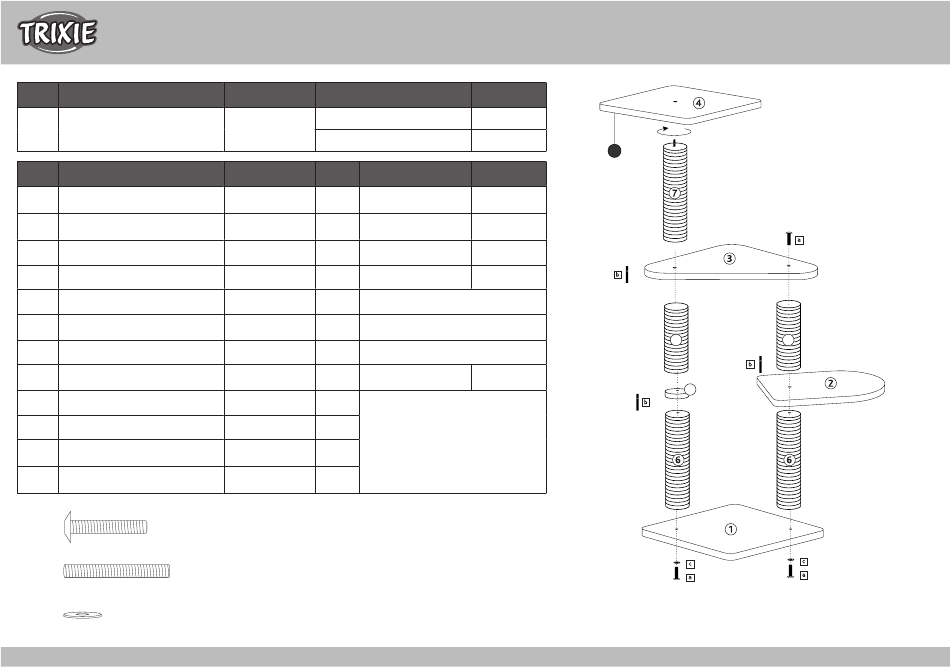

Pos. 1 Bottom plate
Pos. 2 Platform
Pos. 3 Platform
Pos. 4 Padded top platform
Pos. 5 Post
Pos. 6 Post
Pos. 7 Post with spacer bolt
Pos. 8 Connection disc, plush
Pos. a Flathead screw
Pos. b Thread rod
Pos. c Washer
Pos. d Allen Key
Pos. a
Pos. b
Pos. c
061123
Height Color
platinum gray/ beige
32.6 in.
83 cm
gray/ gray
Measurement in
Quantity Item No. -2
inch / mm
15.7 x 15.7 x 0.8 in.
1 43882-10
400 × 400 x 20 mm
15.4 x 11 x 0.8 in.
1 43882-11
390 × 280 × 20 mm
20.5 x 12.6 x 0.8 in.
1 43882-12
520 × 320 × 20 mm
13.4 x 13.4 x 0.8 in.
1 43882-13
340 x 340 × 20 mm
DIAM 3.5 x 11 in.
2
ø 90 × 280 mm
DIAM 3.5 x 15.7 in.
2
ø 90 × 400 mm
DIAM 3.5 x 15.7 in.
1
ø 90 × 400 mm
DIAM 3.5 x 0.9 in.
1 43882-40
ø 90 × 20 mm
M0.3 x 2 in.
3
M8 × 50 mm
M0.3 x 3.1 in.
3
M8 x 80 mm
M0.3 x 0.9 in.
2
M8 x 24mm
1
E Advice:
This product should be assembled by an adult.
Please mount the brush in the pre-drilled holes.
Please check the screws regularly and retighten them if necessary.
Please assemble the tree top down!
