Intermatic P1121 Manual

MANUAL KNOB
ON TRIPPER GREEN
OFF TRIPPER RED
TIME-OF-DAY ARROW
FOR EARLY ON OR OFF OPERATION,
Turn manual knob
position, Timer will follow next scheduled automatic operation.
IN CASE OF POWER FAILURE, RESET TIMER, (SEE STEP 2)
WARNING Risk of Electric Shock
Do not permit children to operate the timer or pool/spa unless they are closely supervised at all times.
Install only on a GROUNDED 120VAC circuit protected by a GFCI.
Test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE the pool or spa! Contact
a qualified service technician. Always disconnect electricity before servicing this timer or the
equipment connected to it. THIS TIMER IS NOT TO BE USED AS A POWER DISCONNECT.
Timer must be installed vertically at least 3 ft. above ground level and at least 5 Ft. away from
edge of Pool or Spa.
Wattage of lamps or appliance being controlled should not exceed capacity of timer.
MODEL: P1121
(1800 WATT) TUNGSTEN; 15 FLA (90 LRA) MOTOR -120 VOLT 60 HZ.
INTERMATIC INCORPORATED
154--01980-REVC
RAINTIGHT OUTDOOR TIMER
PROGRAM REPEATS EVERY 24 HOURS

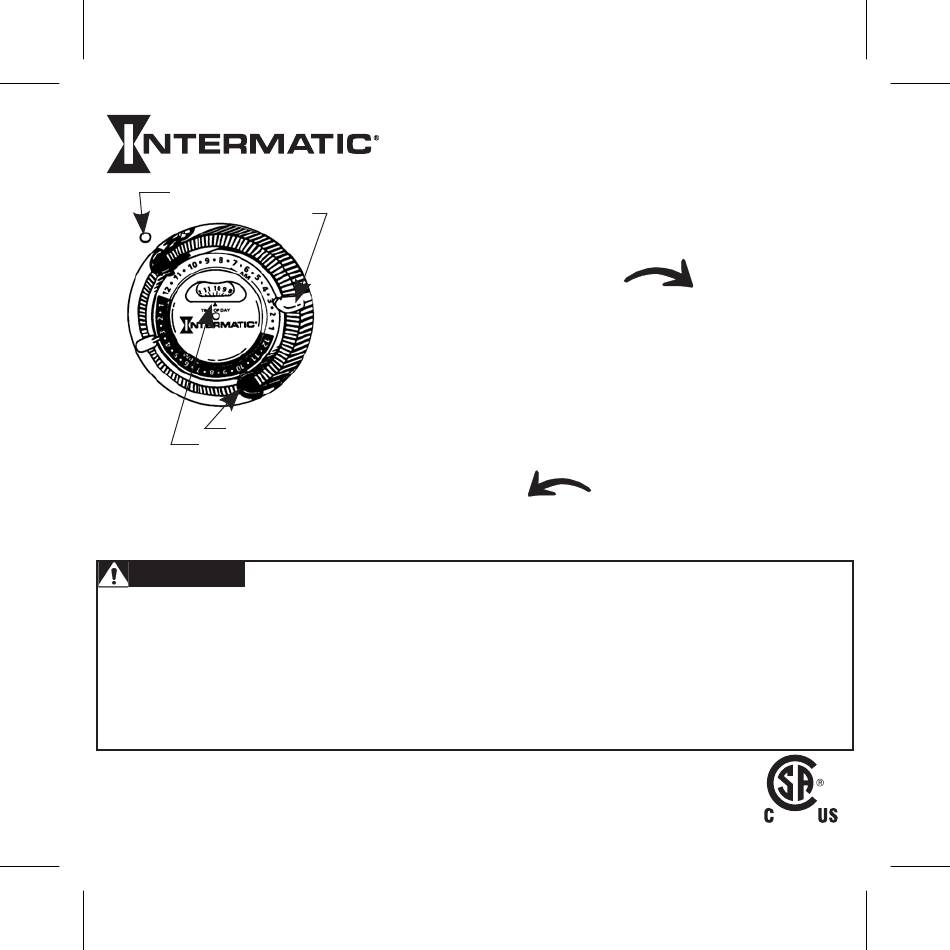

TO SET TIMER: (SEE ILLUSTRATION)
1. Insert ON (GREEN) and OFF (RED) trippers
into dial at desired ON and OFF times.
2. Turn dial CLOCKWISE
complete revolutions until the arrowhead is
aligned with time-of-day (AM or PM) in window.
3. Turn lamp or appliance ON.
4. Plug extension cord, lamp or appliance into
timers receptacle and plug timer cord into
outlet, suitable for "wet locations" if outdoors.
counter clockwise
15 AMP (1800 WATT) RESISTIVE; 15 AMP
one or more
to desired ON or OFF
MADE IN MEXICO
LR3730
