Sunset Trading SU-1090-86-8034-47 Assembly Instructions

1

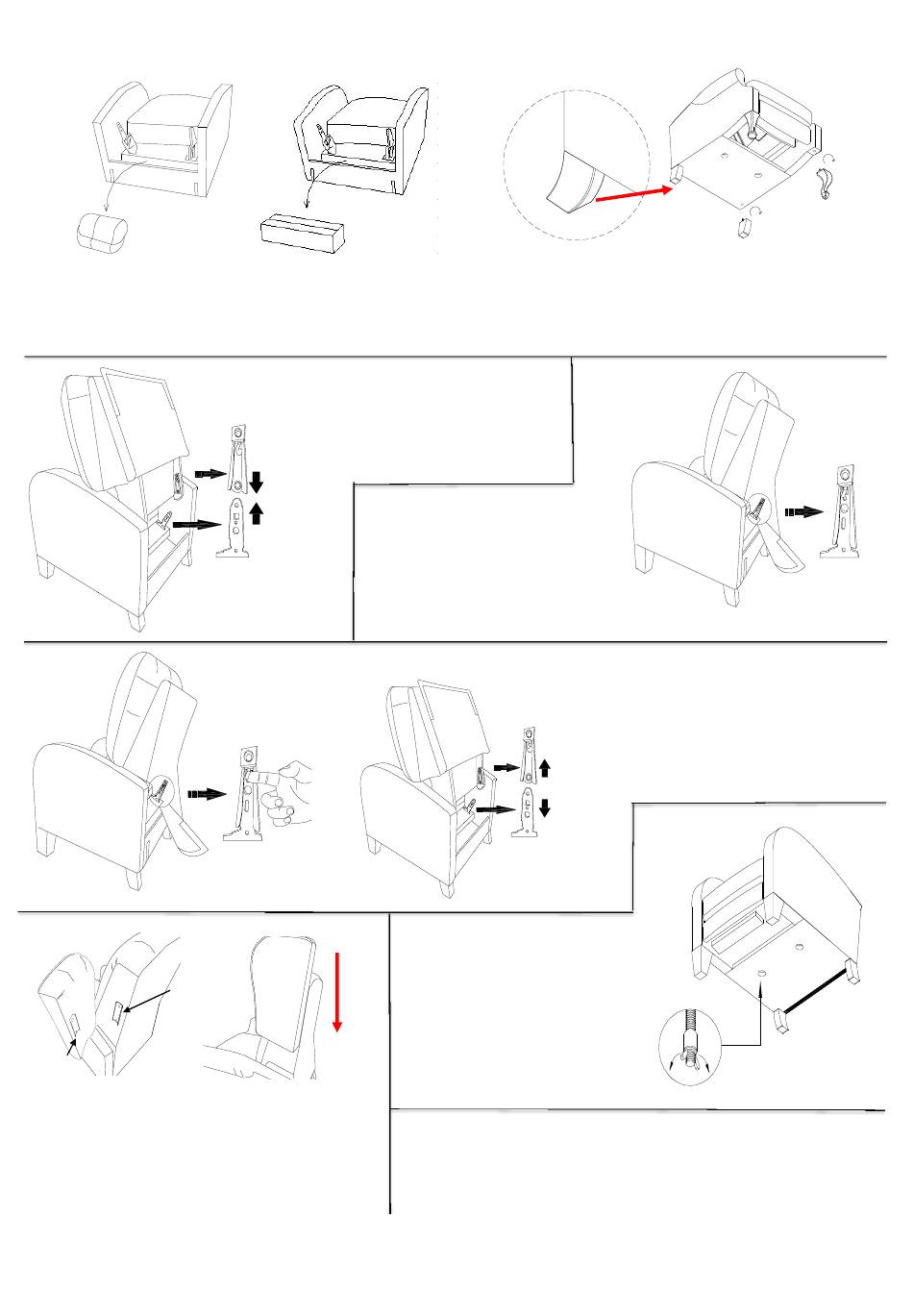

. The Wooden Legs are located at the rear of seat cushion, remove all the Wooden Legs from the package or box (See Figure 1)
and apply the plastic washer on top that is provided. Attached each Wooded Leg to corresponding pre-drilled holes by hand turning
on clockwise direction as figure underneath(See Figure 2).
Female
Male
6
. KD Wings(if applicable)
Insert the male KD Bracket into the slot of the female
Bracket pressing firmly downward until the frame is
tight.
If missing parts or have questions, please email info@sunsettrading.com
Assembly Instructions
Figure 1
2
. Align top brackets on both sides
with metal posts.
3
. Press both sides of the back firmly
down and into a locked position. The
back should automatically lock into back should automatically lock into
place.
or call Sunset Trading 877-364-8464 M-F 8am-4pm EST
(-86 pushback recliner)
B
a
c
k
Rear Leg
4
. To remove the back, lift the tab on both
sides and pull the back straight up. Note: if
there is difficulty in getting the back to lock
into place check to see that the tab is
engaged in the proper space.
5
. To make the chair easier to
recline, tip it on its back and
turn the tension adjusters
counter clockwise. Turn them
clockwise to increase the
resistance needed to recline.
Note: to keep the chair tension
balanced, turn both sides in
equal amounts.
Note: There are no tension adjusters on mechanisms #1632,
#1671, #1672, #2032, #2034, or #2072. But mechanisms
#8550, #2000, or #8546 have the tension adjusters and you
can get the mechanism numbers from the side of the
mechanism. Follow point 5 above to adjust the tension.
Figure 2
Loosen
Tighten
