Hillsdale Furniture SAVANA 4495-830 Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly
is required. Customer Service Phone Number: 502-562-0000

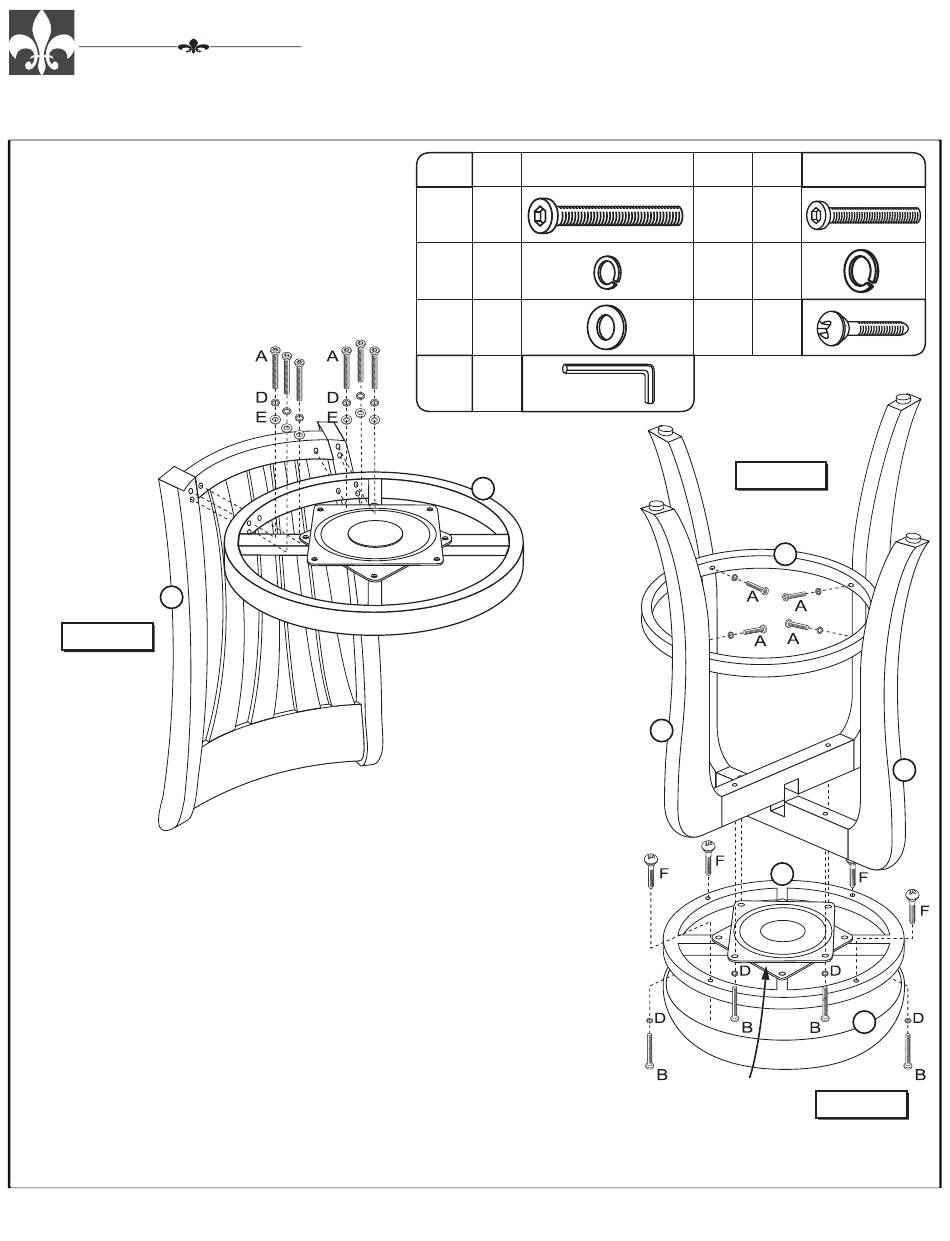

HARDWARE LIST
A (10) Long Allen Bolts
B (4) Medium Allen Bolts
C (4) Small Spring Washers
D (10) Large Spring Washers
E (6) Flat Washers
F (4) Wood Screws
G (1) Small Allen Wrench
PARTS LIST
H (1) Stool Back
I (1) Seat Base
J (2) Leg Panels
K (1) Support Ring
L (1) Seat Cushion
H
FIGURE 1
STEP 1
Assemble the Seat Base (I) to the Stool Back (H) using 3 Long Allen Bolts
(A), 3 Large Spring Washers (D) & 3 Flat Washers (E) per each side. See
Figure 1. Tighten all bolts using Allen Wrench (G) provided.
STEP 2
Assemble the two Leg Panels (J) together as shown in Figure 2. During
assembly, secure the Support Ring (K) to the inside of each leg using 1
Long Allen Bolt (A) & 1 Spring Washer (C) per each leg. Tighten all bolts
using Allen Wrench (G) provided.
STEP 3
Attach the top Leg Panels (J) to the Swivel Metal Plate using 4 Medium
Allen Bolts (B) & 4 Spring Washers (D) to secure in place. Tighten all bolts.
STEP 4
Finally, attach Seat Cushion (L) to the top of the Seat Base (I) using 4 Wood Screws (F) from the bottom. See
Figure 3. Only tighten screws using a phillips head screwdriver (not included). The assembly is now complete.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
SAVANA WOOD SWIVEL BARSTOOL
Model # 4495-830
PART QTY
A 10
C 4
E 6
G 1
I
HARDWARE PART
B
D
F
C
C
J
Swivel Metal
Plate
Date: 02-10-2011
Page 1 of 1
QTY HARDWARE
4
10
4
FIGURE 2
K
C
C
J
I
L
FIGURE 3
