Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (16) Allen Bolts 1/4” x 15mm
B (4) Counter Bolts 1/4” x 25mm
C (2) Counter Bolts 1/4” x 18mm
D (20) Spring Washers 6.5mm
E (20) Flat Washers 6.5 mm
F (4) Wood Screws
G (1) Allen Wrench
O (4) Allen Bolts 1/4” x 25mm
A B
D E
STEP 1
Begin assembly by attaching 2 Legs (K) to the bottom
of the Stool Base (P) using 2 Allen Bolts (A), 2 Spring
Washers (D) & 2 Flat Washers (E) to secure in place.
Do not fully tighten bolts for this step.
STEP 2
Next, attach the Top Support (L) to each mounted
Leg (K) using 1 Counter Bolt (B) from the inside. Also
attach the Lower Support (M) to the bottom inside of
each mounted Leg using 2 Allen Bolts (A), 2 Spring
Washers (D) & 2 Flat Washers (E) to secure in place.
STEP 3
Repeat Steps 1 & 2 to assemble the remaining 2 Legs
(K) and secure to Top & Lower Supports (L & M).
Completely tighten all bolts here.
STEP 4
Attach the Stool Back (H) to the Stool Top (J) by fitting
in place and securing with 1 Counter Bolt (C) per
each bottom side. Tighten all bolts.
STEP 5
Attach the Stool Top (J) to the Stool Base (P) by
aligning the holes with the swivel metal plate and
securing from the bottom with 4 Allen Bolts (O), 4
Spring Washers (D) & 4 Flat Washers (E) to secure
in place. Tighten all bolts.
STEP 6
Finally attach the Seat Cushion (N) to the top of the
Stool Top (J) using 4 Wood Screws (F) to secure from
the metal tabs. The assembly is now complete.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for
polishing, as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
HANOVER METAL STOOLS
Model #4815-843 Swivel Metal Counter Stool
PARTS LIST

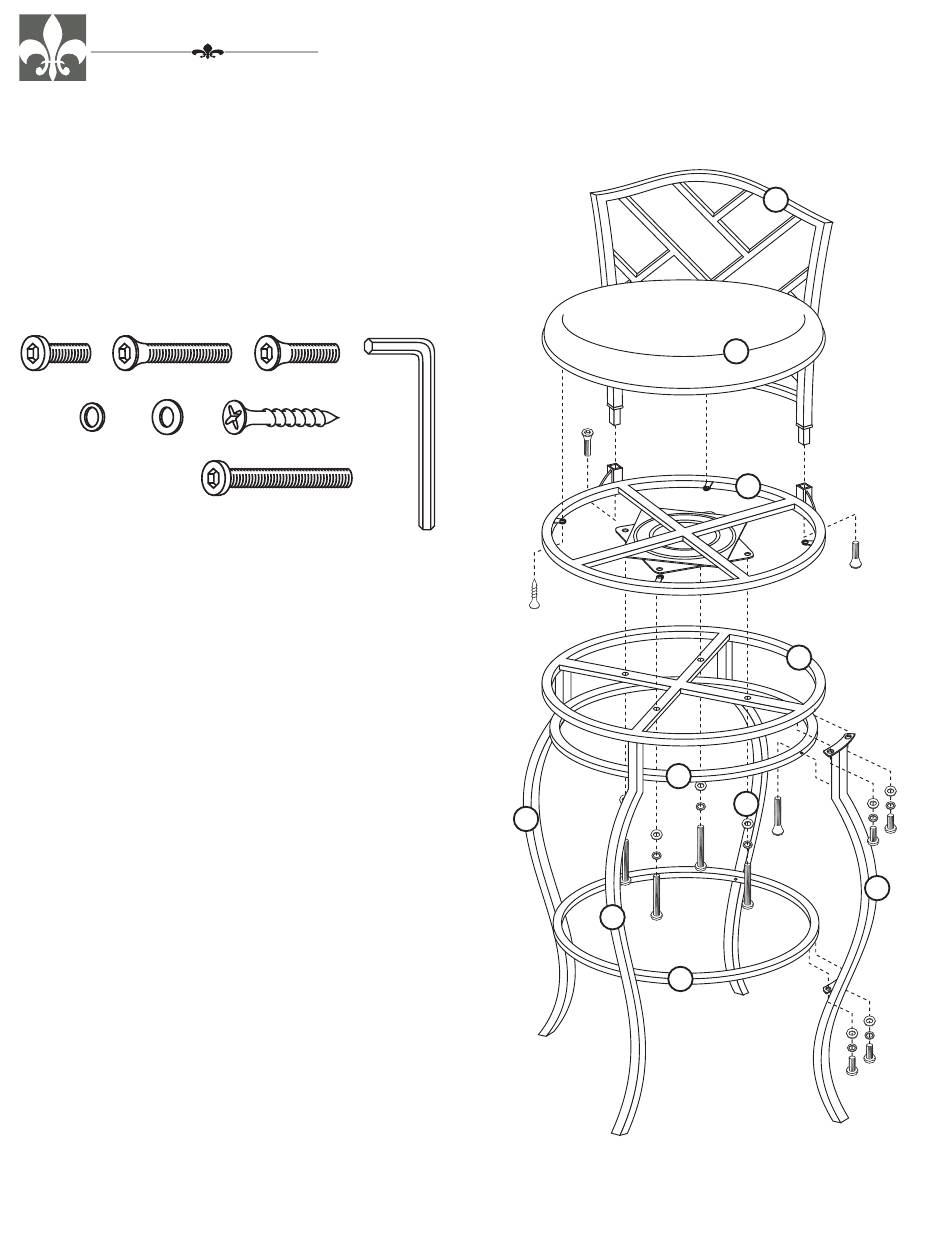

H (1) Stool Back
J (1) Stool Top
K (4) Legs
L (1) Top Support
M (1) Lower Support
N (1) Seat Cushion
P (1) Stool Base
C G
F
O
Model #4815-844 Swivel Metal Bar Stool
C
F
K
K
H
N
J
P
L
E
K
E
D
D B
E
E
D
D O
O
O
O
M
