HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (20) 1/4" x 19mm Flat Washers
B (24) 1/4" Spring Washers
C (4) 1/4" x 2" Allen Bolts
D (1) 1/4" Allen Wrench
E (4) 1/4" x 1" Allen Bolts
F (4) 1/4" x 15mm Allen Bolts
G (2) Metal Brackets
H (4) #8 x 1-1/4" Screws
I (12) 1/4" x 1-1/2" Allen Bolts
J (1) 1/4" x 4" Straight Allen Wrench

PARTS LIST

L (1) Seat Frame
M (1) Seat Cushion
N (1) Chair Back
O (1) Top Round Stretcher
P (1) Bottom Round Stretcher
Q (4) Legs
N
A
B
H

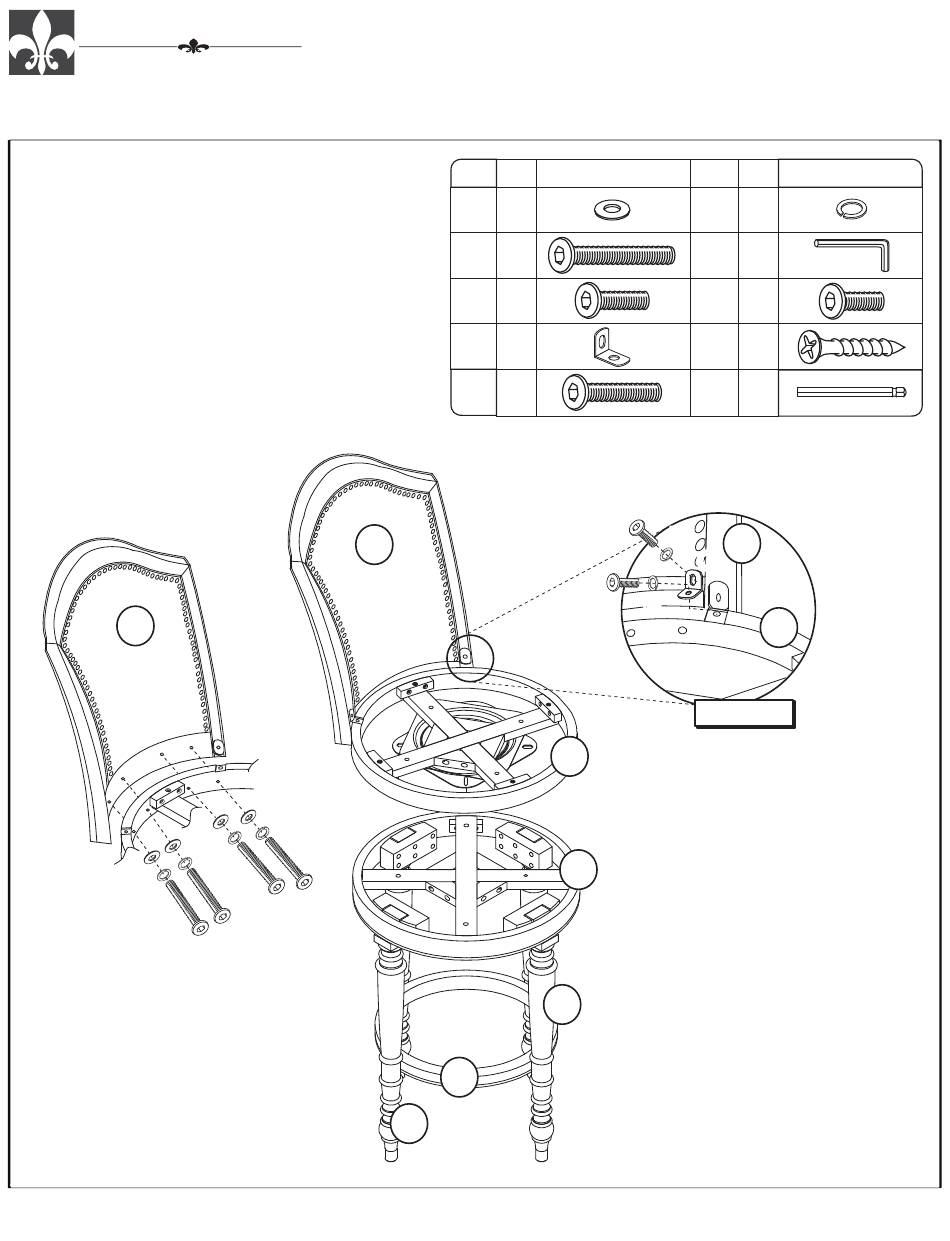

STEP 1

Begin assembly by attaching the
Seat Frame (L) to the Chair Back
(N) by setting in place and aligning
holes and securing from left and
right inside back panel with 4 Allen
Bolts (C), 4 Spring Washers (B) and
4 Flat Washers (A). Do not fully
tighten bolts.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
BARCELONA DINING CHAIR
Model #4899-826 Wood Swivel Counter Stool
Model #4899-830 Wood Swivel Barstool
N
A
B
H
Q
PART QTY HARDWARE
A 20
C 4
E 4
G 2
I 12
F F
L
O

STEP 2

Next secure in each rear corner of
Q
the Seat Frame (L) and Chair Back
(N) with 2 Metal Brackets (G), 2
Spring Washers (B) and 2 Allen
Bolts (F) per side. See Figure 1.
P
Date: 05-09-2012
PART QTY HARDWARE
B 24
D 1
F 4
H 4
J 4
F F
B B
N
G G
B B
L
FIGURE 1
Page 1 of 2
