Cequent Towing Products 41931 Installation Instructions

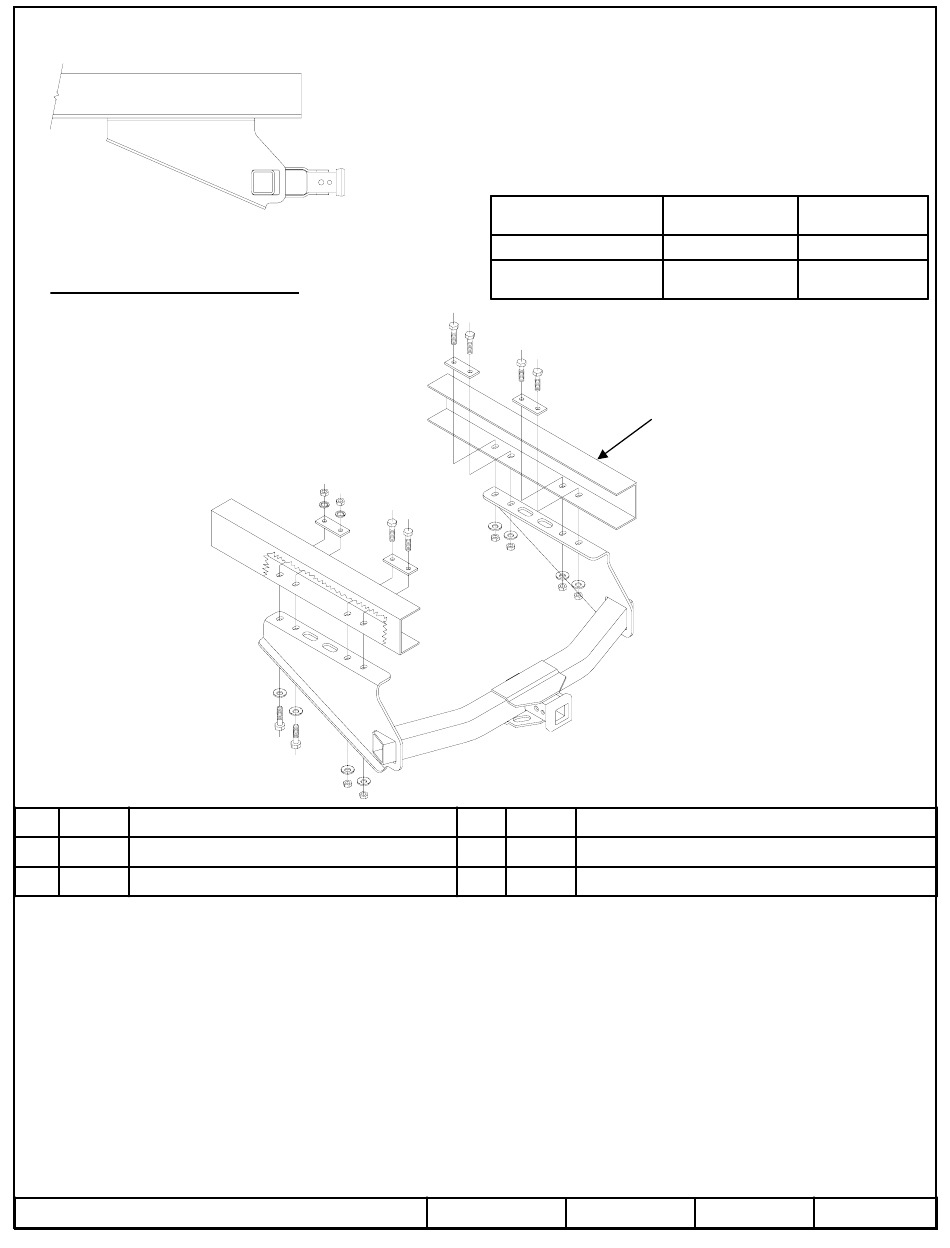

Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: 41931F
Wrenches: 3/4", 7/8"
Drill Bits: NONE
1
Qty. (8) Hex bolt 1/2-13 X 1.75 GR5
2
Qty. (4) Spacer
3
Qty. (8) Conical washer
1. Lower spare tire to allow for access to existing slots in vehicle frame rails.
2. Remove existing electrical bracket from vehicle if present and relocate as required.
3. Raise hitch into position and install fasteners as shown above.
4. Raise and position spare tire to allow for clearance between the receiver tube and the hex bolts coming through the frame rails.
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z
2004, 2007 Cequent Towing Products
Installation Instructions
FORD SUPERDUTY
F-SERIES TRUCKS
1
2
4
5
2
2
1
Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Do Not Exceed Lower of Towing Vehicle
Manufacturer's Rating or
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: PU1, PU2
3
4
4
Qty. (8) Nut hex 1/2-13
5
Qty. (2) Lock washer
Sheet 1 of 1 41931N
Part Numbers:
41931
Max Gross Max Tongue
Trailer WT (LB) WT (LB)
15,000 (6810 Kg) 1500 (681 Kg)
12,000 (5448 Kg) 1200 (545 Kg)
Frame rail
8-03-07
Form: F205 Rev A 5-6-05
Rev. D
