Cequent Towing Products 70530 Installation Instructions

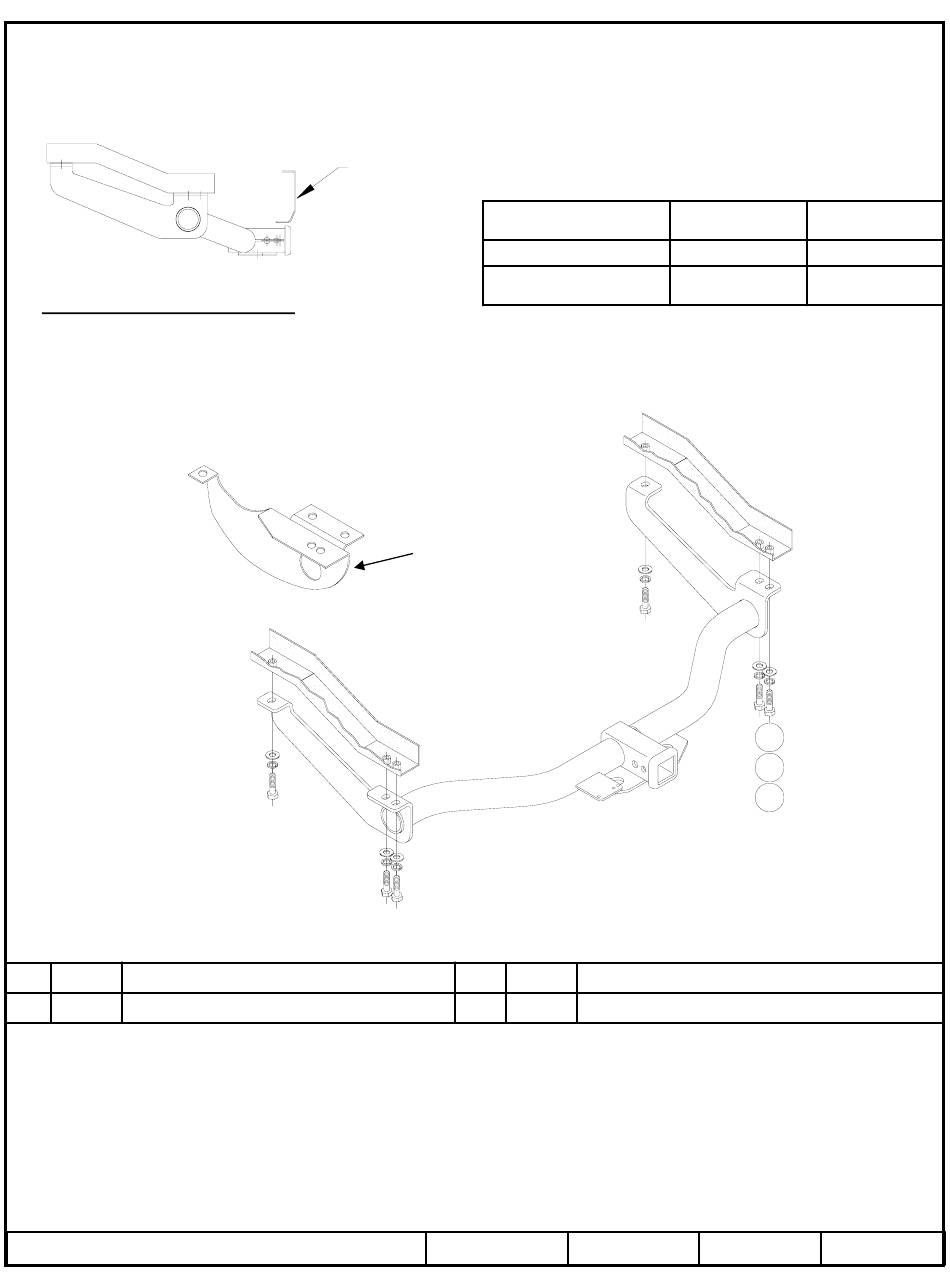

Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: 41551F
Wrenches: 19mm
Drill Bits: None
1
Qty. (6) Hex bolt M12 x 1.25 x 45mm CL8.8
2
Qty. (6) Lock washer 1/2"
1. Remove tow hook if present and return to owner.
2. Raise hitch into position, aligning holes in hitch with the existing weld nuts in vehicle's frame rail.
3. Install M12 hex bolt, lock washer and flat washer as shown (hand tighten only until all fasteners are installed).
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z 2004, 2008 Cequent Towing Products
Installation Instructions
Fascia
Tighten all M12 CL8.8 fasteners with torque wrench to 68 Lb.-Ft. (92 N*M)
Nissan Titan
Do Not Exceed Lower of Towing Vehicle
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: PU3
Tow hook
FASTENERS TYPICAL BOTH SIDES OF VEHICLE
3
Qty. (6) Flat washer 1/2"
Sheet 1 of 1
Manufacturer's Rating or
Max Gross
Trailer WT (LB)
10,000 (4540 Kg)
6,000 (2724 Kg)
3
2
1
41551N 5-19-08
Part Numbers:
70530
37092
41551
Max Tongue
WT (LB)
1,000 (454 Kg)
600 (272 Kg)
Rev. E
