Cequent Towing Products 33031 Installation Instructions

Hitch fits under factory hitch
Frame rail

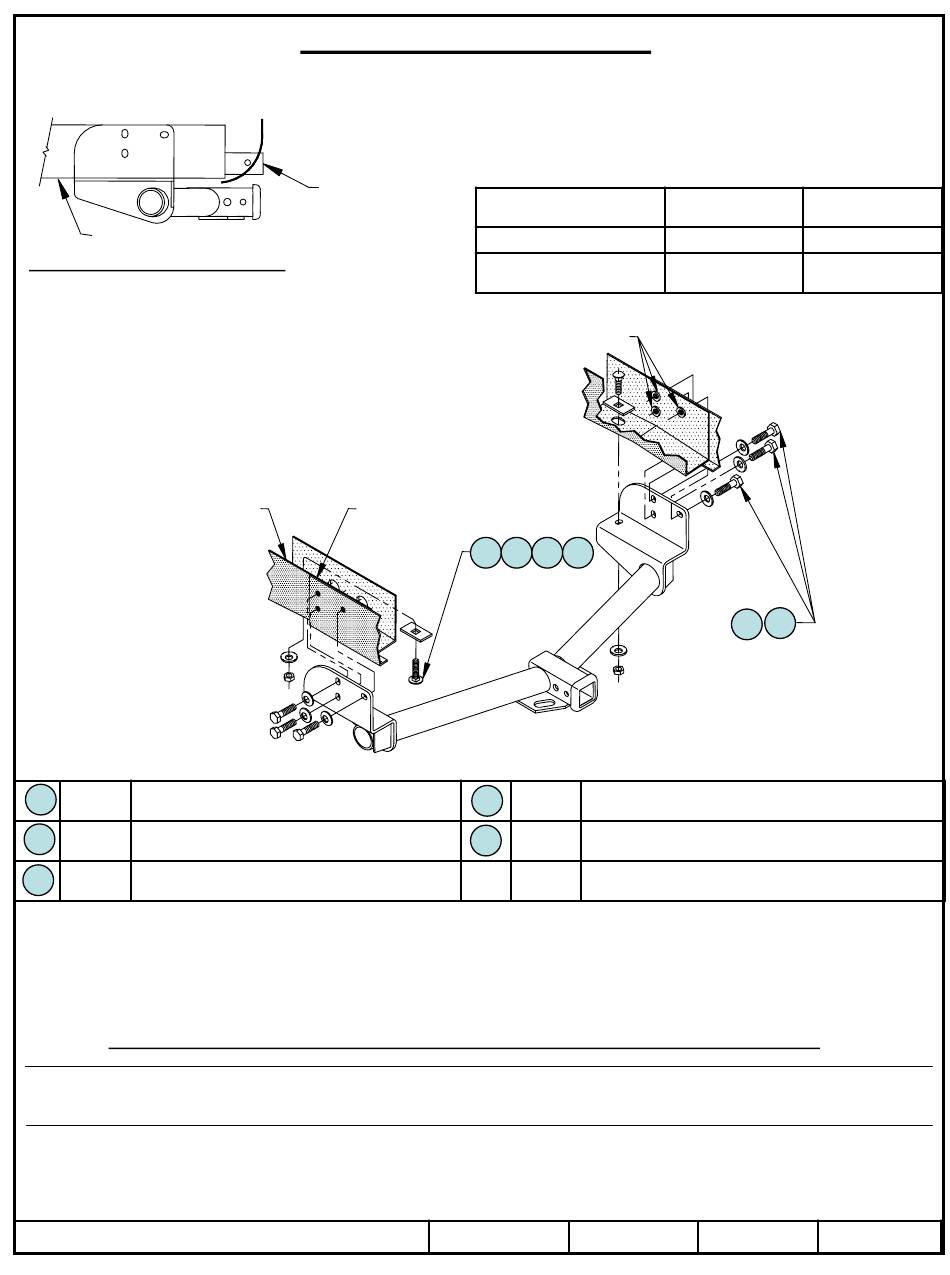

Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: F75132
Wrenches: 7/8", 15mm, 18mm
Drill Bits: None
Frame rail
Qty.
1 M12 X 1.75 X 45mm, CL10.9 Hex Bolt
(6)
Qty.
2
1/2" Conical Washer
(8)
Qty.
3 1/2" – 13 X 1.75 GR5 Carriage Bolt
(2)
1. Remove (3) existing bumper bracket nuts if present, and (3) M12 or M14 bolts from each side of frame.
2. Fishwire carriage bolts and blocks through end of frame.
3. Raise hitch into position and loosely install conical washers and nuts.
4. Vehicles with 14mm factory fasteners: Reinstall factory M14 fasteners.
Vehicles with 12mm factory fasteners: install and torque supplied M12 fasteners and reinstall factory M12 nuts.
Note! Do not use both hitches at the same time. This may overload and cause damage to vehicle.
Tighten all M14 fasteners with torque wrench to 148 Lb.-Ft., 201 N*M
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z
2006 Cequent Towing Products
Installation Instructions
Ford Explorer - 4 door
Mercury Mountaineer
Lincoln Aviator
Factory hitch
Factory hitch bracket
Tighten all 1/2" fasteners with torque wrench to 75 Lb.-Ft., 102 N*M
Sheet 1 of 3
Do Not Exceed Lower of Towing Vehicle
Manufacturer's Rating or
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: SUV1, SUV2
Existing weldnuts-typical
3 4 2 5
Typical both sides
Qty.
1/4" X 1-1/2" X 2" Block
4
(2)
Qty.
5 1/2" – 13 Hex Nut
(2)
Tighten all M12 fasteners with torque wrench to 92 Lb.-Ft., 125 N*M
N75132
Part Numbers:
75132
33031
87417
Max Gross Max Tongue
Trailer Weight Weight
8000lb, 3632kg 800lb, 363kg
5000lb, 2724kg 500lb, 272kg
1
2
For vehicles with 14mm factory
bolts - Reinstall 14mm bolts.
Typical both sides
03-21-06 Rev. B
Form: F205 Rev A 5-6-05
