DEALER/INSTALLER:
(1) Provide this Manual to end user.
(2) Physically demonstrate hitching and unhitching
procedures in this Manual to end user.
(3) Have end user demonstrate that he/she
understands procedures.

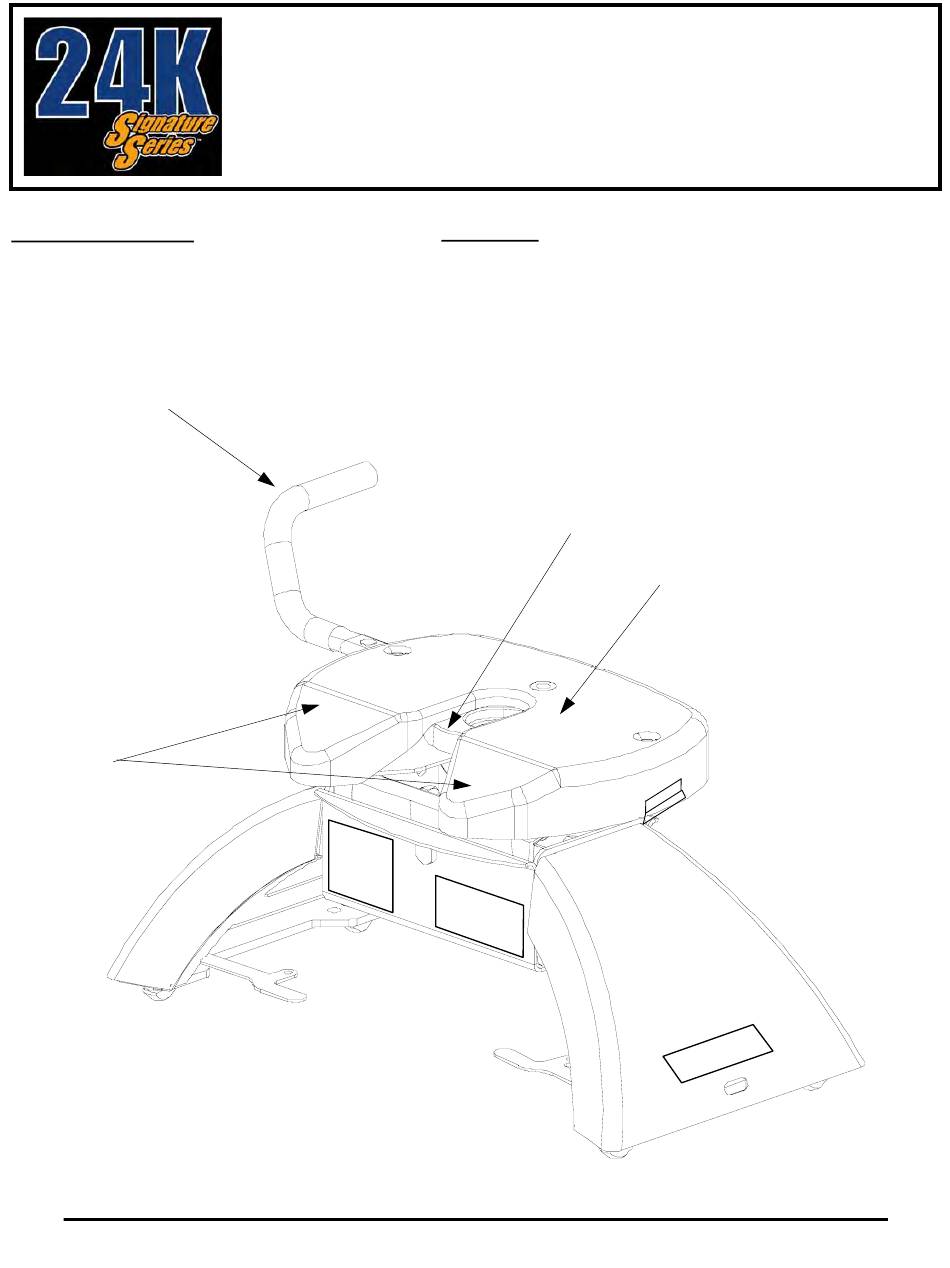

HITCH HANDLE
RAMP
For Installation Assistance or Technical Help, Call 1-800-758-0869
30059OP - 15MAR05D
FOR KITS 30059, 40259 & 50259
OPERATING INSTRUCTIONS
Signature Series
24K 5TH WHEEL HITCH
PCN7735
©2005 CEQUENT TOWING PRODUCTS, INC
END USER:
(1) Read and follow this Manual every time you use hitch.
(2) Save this Manual and Hitch Warning Hang Tag for future reference.
(3) Pass on copies of Manual and Hitch Warning Hang Tag to any other
user or owner of hitch.
(4) Never remove hitch warning decals as shown in Figure 14 of this
manual. If damaged, contact Cequent Towing Products
(1-800-326-1090) for free replacement.
JAW TO HOLD
KING PIN
SKID PLATE
LITHO IN USA
