Joytutus A3302-00201 General Usage Manuallines

PRODUCT INFORMATION
1
INSTALLATION METHOD
3
4

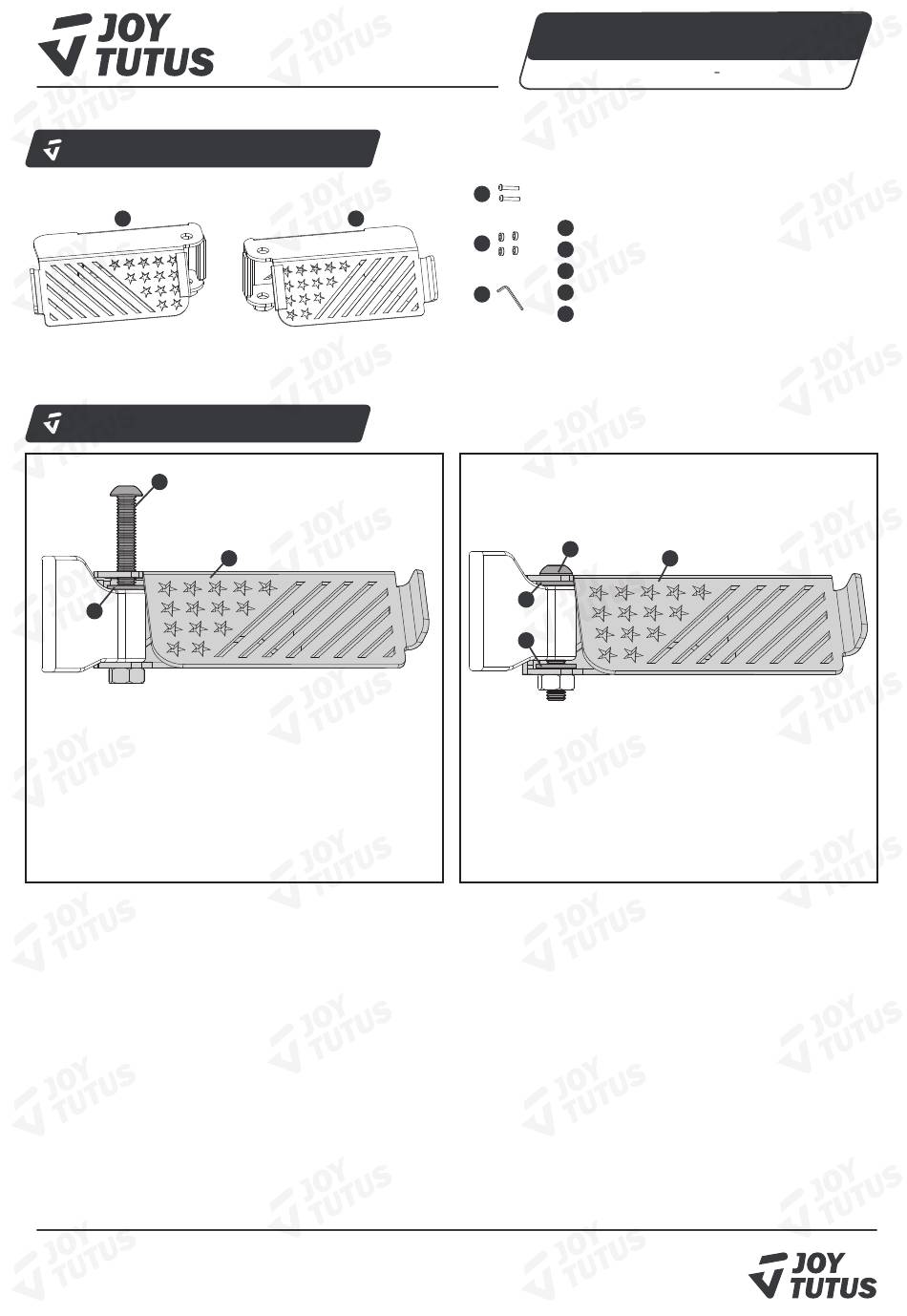

1. First, place the gasket (4) and pedal in the order
shown in the diagram at the upper end, and then
insert the screw (3) from top to bottom, but not all
the way.
3. The diagram shows the installation of the right door hinge pedal.
The left door hinge pedal should be installed in a mirrored manner according to this method to complete the
installation of this product.
If you have any questions, please visit Joytutus website or email for quick response.
Web: www.joytutus.com
Email: Service@joytutus.com
2
2
USAGE GUIDELINES
SKU: A3302 00201
3
Left door hinge pedal
1
4
Right door hinge pedal
2
Round head hexagon screw M10x65mm
3
Gasket 10.5xD20x2mm
4
5
Hexagon L-shaped wrench
5
3
4
4
2. On the basis of the installation in step one, place
the second gasket as shown in the diagram, then
push the screw (3) all the way down, and then
tighten it with a hexagon wrench to reduce the gap
until the pedal can rotate around the axis without
obvious looseness.
2
x1
x1
x2
x4
x1
