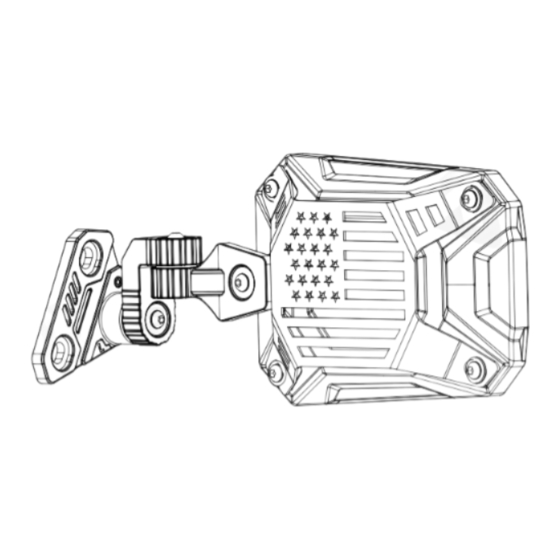

Joytutus A3301-00201 Usage Manual

IMPORTANT:
1. Please read the installation instructions carefully before you start.
2. For your safety and to ensure a satisfactory installation, please complete all the installation steps in the order shown below.
PRODUCT INFORMATION:
1
3
FUNCTION:
INSTALLATION TIPS:
STEP 1
Dirver Side
A
A
STEP 1:
Remove two original bolts [A] just in front of door hinge.
STEP 2:
Install the left mirror onto the car using the screw [3], spring washer [4] and washer [5].
STEP 3:
Adjust the angle and then tighten the screw.
STEP 4:
Repeat Steps 1-3 to install the other side.
4 5
180°
STEP 2
5
4
3
USAGE GUIDELINES
2
6 7
180°
STEP 3
Dirver Side
2
7
1 of 2
SKU: A3301-00201
1 Mirror - Right
2 Mirror - Left
3 Screw M8*L25
4
Metal Spring Washer M8
5
Metal Flat Washer M8*D16*1
6
Hex Wrench 4mm
7
Hex Wrench 5mm
360°
6
x1
x1
x4
x4
x4
x1
x1
Dirver Side
