Uniden BC15 Manual

INSTALLING YOUR SPEAKER

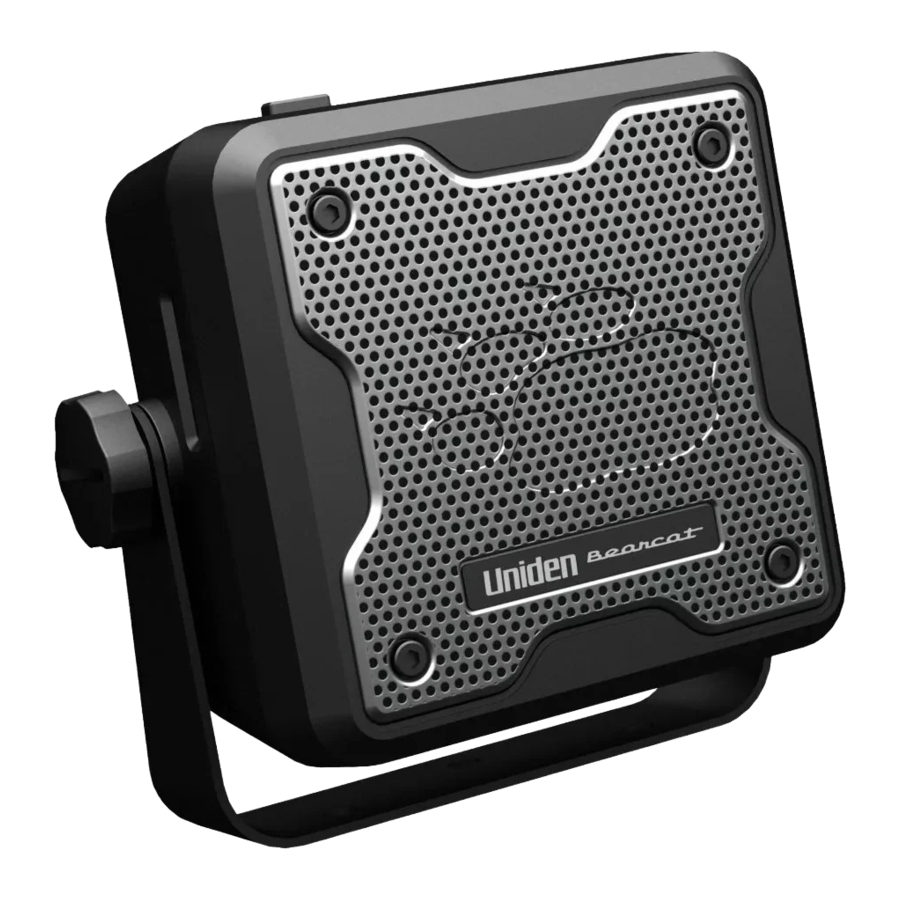

The BC15 can stand on its own on stable surfaces or you can mount it for stability.

Avoid mounting the speaker in direct sunlight or high temperature areas.
Avoid running the cable across sharp metal edges or moving parts.
Do not block air conditioning or heating vents.
Avoid airbag deployment zones to ensure proper performance and prevent injury.

To mount the speaker, use the mounting bracxket as a template to mark drilling holes. Drill holes and screw in the bracket.. Align the speaker with the adjustment knob holes in the bracket and screw in the adjustment knobs.

Insert the audio plug into the EXT. SP jack of your Bearcat CB or scanner.

Remove unwanted background noise from incoming transmissions with the noise filter button. Press the button once to turn the noise filter ON. The button remains down. Press it again to release it and turn the noise filter OFF.

SPECIFICATIONS

Internal Speaker	15W Max. 8 ohm (MONO)
Operating Temp.	-4°F ~ +140°F (-20°C ~ +60°C)
Max. Input Level	15W (8 ohm) - Noise filter OFF 5W (1.8 ohm) - Noise filter ON
Audio Freq. Response	300 ~ 5000Hz
Speaker Cord	10 ft (3m) with 3.5 mm stereo plug (Left side connected only)
Dimensions	3.9 in. (W) x 2.4 in. (D) x 3.9 in. (H) 100 mm. (W) x 61.8 mm. (D) x 100 mm. (H)
Weight	17.6 oz (500g) - including bracket and mounting screws
Included in the package:	Mounting Bracket with Hardware

Service

Uniden America Corporation
Parts and Service Division 4700 Amon Carter Blvd Fort Worth, TX 76155
(800) 297-1023,
8 a.m. to 5 p.m., Central, Monday through Friday

If you need any assistance with this product, please call our Customer Care Line at:
800-297-1023 or 817-858-2929.
