- Page 1 V20220805 CFN-1104 User Manual Read Carefully Before Use Keep for Future Reference...
-
Page 2: Table Of Contents
CONTENTS Introduction ......................1 Package List......................2 Safety Information ....................3 Preparation......................4 Initial Installation ....................5 Downrod Mounting ..................... 5 Circuit Connections ................... 6 Canopy Adjustment .................... 7 Light Installation ....................7 Remote Control Operation ................. 8 Troubleshooting ....................9 Contact Information .................. -
Page 3: Package List

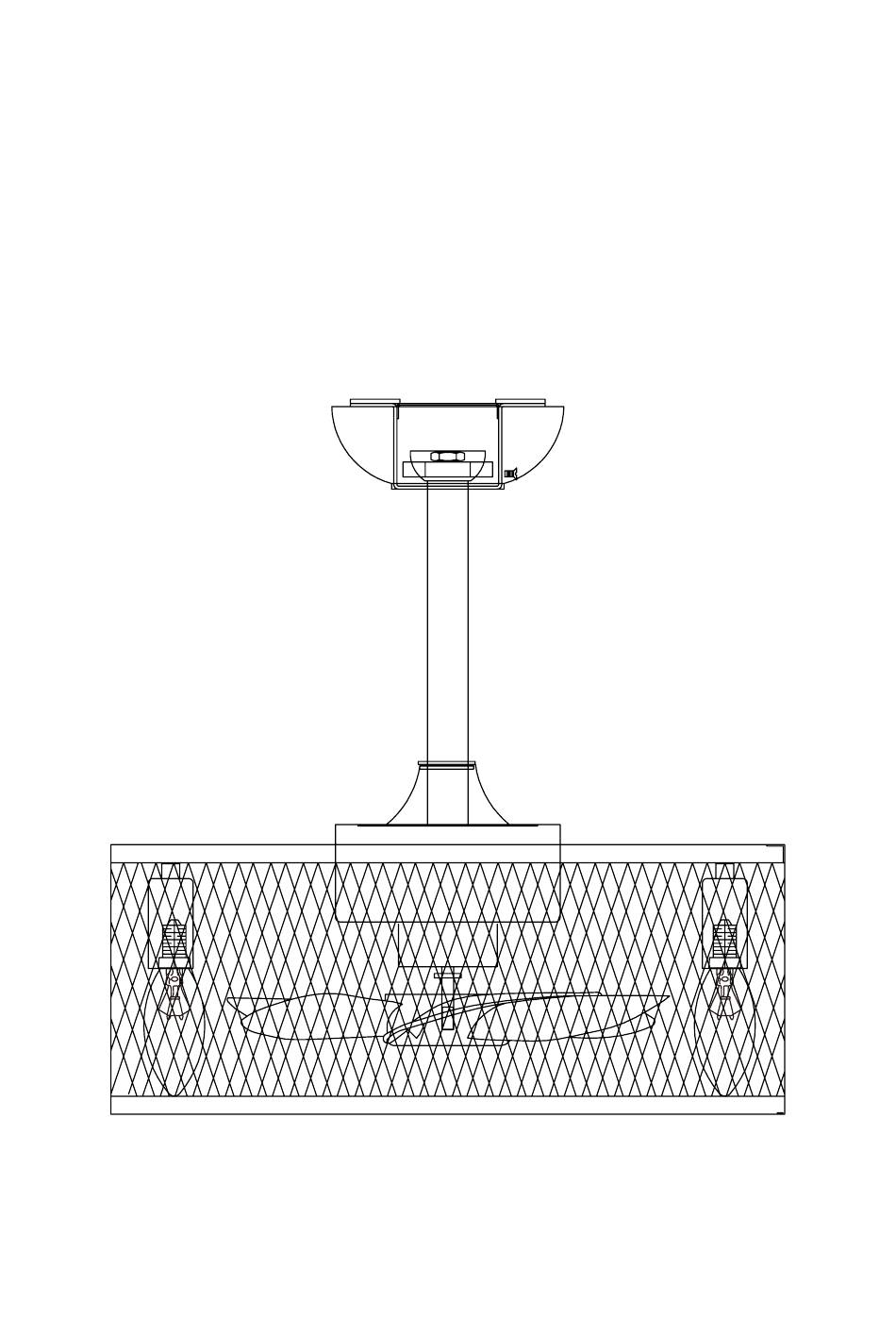

Package List STOP 1H 2H 4H 8H Item Name Qty. Mounting Bracket Downrod Canopy Coupling Cover Main Body with Motor, Blades, and Lamp Holders Remote Control Wood Screws Anchor Bolts Wire Nuts Metal Washers Plastic Anchors... -
Page 4: Safety Information
Safety Information Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Preparation
Preparation 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Initial Installation
Initial Installation Wood Ceiling Concrete Ceiling Mounting Bracket Plastic Anchor & Anchor Bolt Supply Wires Wood Screw Metal Washer Step 1. Pass the supply wires from the junction box (not included) through the central hole of the mounting bracket. Step 2. Secure the bracket to the junction box with the provided fasteners. Use the mounting screws and metal washers on wood ceilings or the plastic anchor and anchor bolts on reinforced concrete or similar ceilings. -
Page 7: Circuit Connections
Circuit Connections Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections, and secure connectors with electrical tape. Step 1. Connect the 2 colored wires of the receiver to the 2 identically colored wires of the junction box. -
Page 8: Canopy Adjustment
Canopy Adjustment Step 1. Remove the locking bolts on the rim of the mounting bracket. Step 2. Slide the canopy up to the mounting bracket, turning until their slots align with each other. Step 3. Replace the tighten the bolts. Light Installation Lamp Holder Bulb... -
Page 9: Remote Control Operation
Remote Control Operation Install the remote control holder onto any wall or suitable flat surface using two mounting screws/ bolts. Function Starts the fan at low speed Starts the fan at medium speed LIGHT ON/OFF Starts the fan at high speed STOP Stops the fan LIGHT... -
Page 10: Troubleshooting
Troubleshooting Potential Problems Common Solutions Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. Replace the remote control’s batteries. Fan blades don't rotate Check that the fan cover is correctly placed and no screws interfere with the movement of the blades. -
Page 11: Contact Information
Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at help@cs-supportpro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right. - Page 12 C F N - 1 1 0 4 - 0 0 Rev. 5 Aug. 2022...
