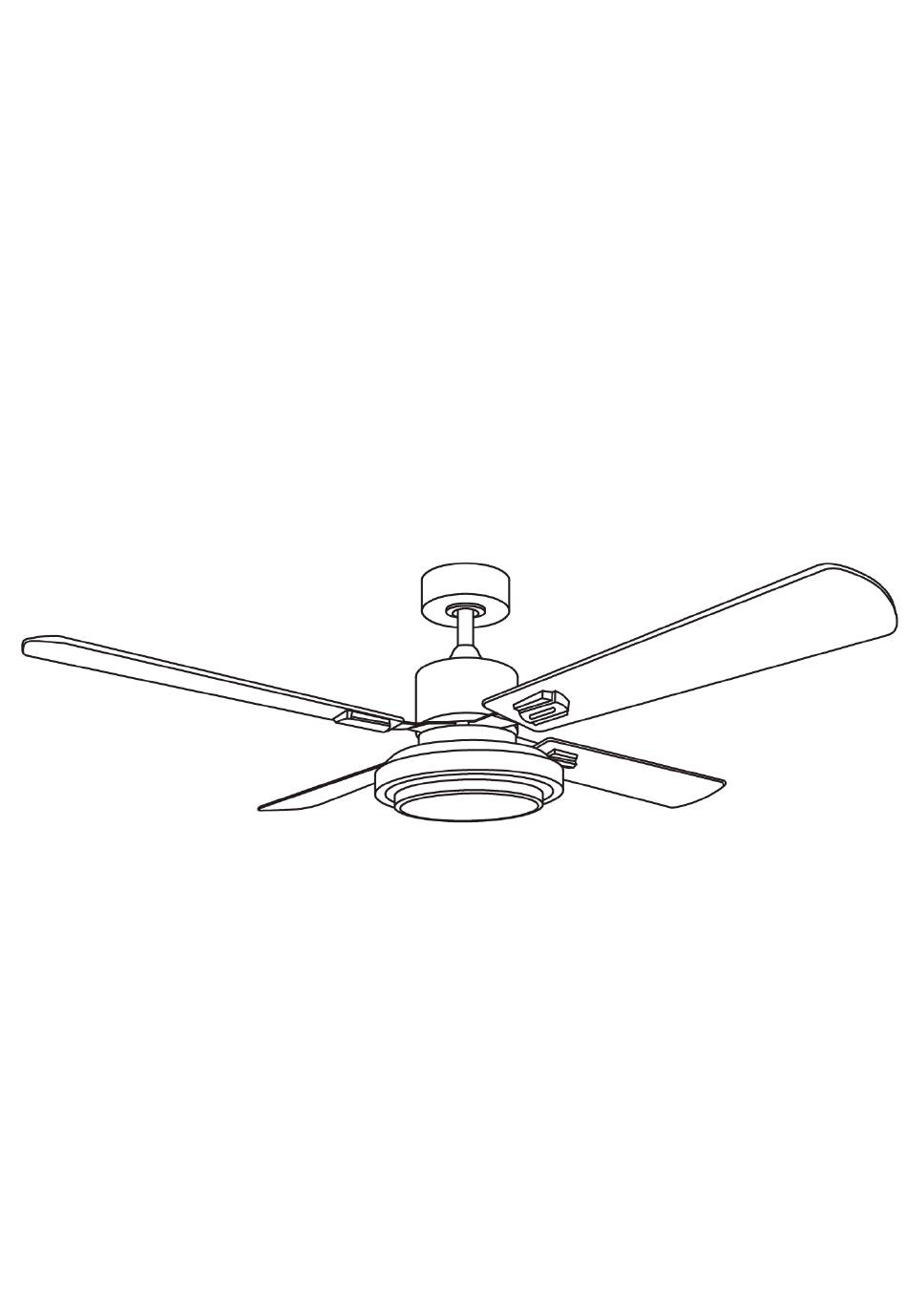

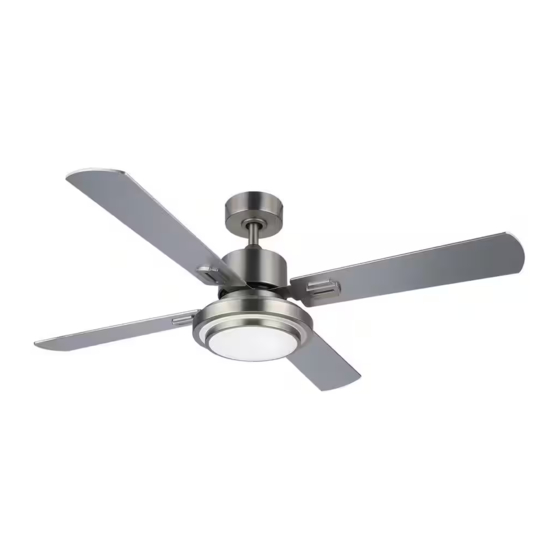

- Page 1 V20210601 CFN-1051 Instruction Manual Read Completely Before Installation & Use and Keep for Future Reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ·························································································· 1 Package Contents ················································································· 2 Safety Information·················································································· 3 Preparation ·························································································· 4 Initial Installation ··················································································· 5 Downrod Mounting ················································································ 5 Circuit Connections ··············································································· 6 Canopy Installation ················································································ 7 Fan Blade Installation ············································································· 7 Light Plate & Shade Installation ································································ 8 Color Temperature Adjustment ·································································... -
Page 3: Package Contents
PACKAGE CONTENTS A. Fan Blades (4) B. Ceiling Mounting Bracket C. Canopy D. Downrod E. Coupling Cover F. Fan Motor Assembly G. Remote Control Transmitter H. Receiver I. Mounting Screws (4) Flat Washers (4) Steel Screws (2) Star Washers (4) Wire Nuts (8) Bolts (15) Spare Bolt... -
Page 4: Safety Information
SAFETY INFORMATION Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Preparation
PREPARATION 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Initial Installation
INITIAL INSTALLATION Junction Box Washers Ceiling Mounting Bracket Hook Mounting Screws 120V Wires Loosen the 4 screws on the mounting bracket. Use the screws and washers to attach it to your ceiling. DOWNROD MOUNTING Downrod Step 1: Remove the pin and clip from the Canopy downrod. -
Page 7: Circuit Connections
CIRCUIT CONNECTIONS Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections, and secure connectors with electrical tape. Downrod Step 1: Connect the 5 colored wires from the remote receiver to the 5 identically colored lead wires from the fan motor. -
Page 8: Canopy Installation
CANOPY INSTALLATION Outlet Box Ceiling Mounting Bracket Screw Screw Canopy Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to the mounting bracket and place one of the key hole slots over the mounting bolt on the mounting bracket. -
Page 9: Light Plate & Shade Installation
LIGHT PLATE & SHADE INSTALLATION Feed the wire connector through the middle of the light plate. Install the light plate on the motor assembly with the provided bolts. Connect the LED light kit to the wire connector. Attach the LED light kit to the light plate using its magnetic bolts. -
Page 10: Remote Control Operation
REMOTE CONTROL OPERATION Install the remote control holder onto any wall or suitable flat surface using the two steel screws. Upon first use, connect the remote control to its receiver in the fan by pressing LI and HI on the emitter until a beep is heard. (Note that this programming cannot be done for the first 30 seconds after the receiver is turned on.) Function Starts the fan at low speed... -
Page 11: Troubleshooting
TROUBLESHOOTING Potential Problems Common Solutions Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. Fan blades Replace the remote control’s batteries. don't rotate Check that the fan cover is correctly placed and no screws interfere with the movement of the blades.
