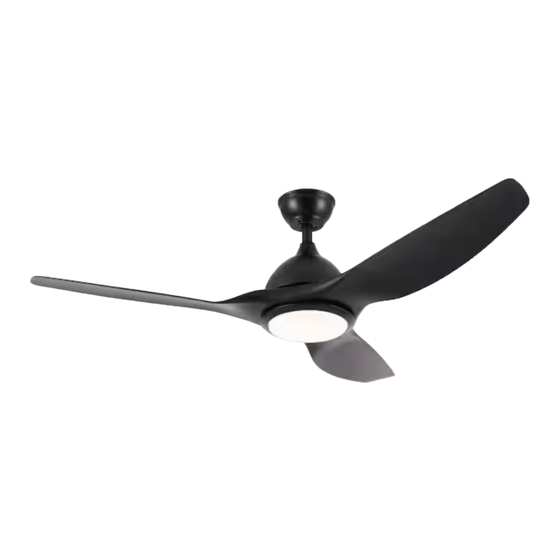

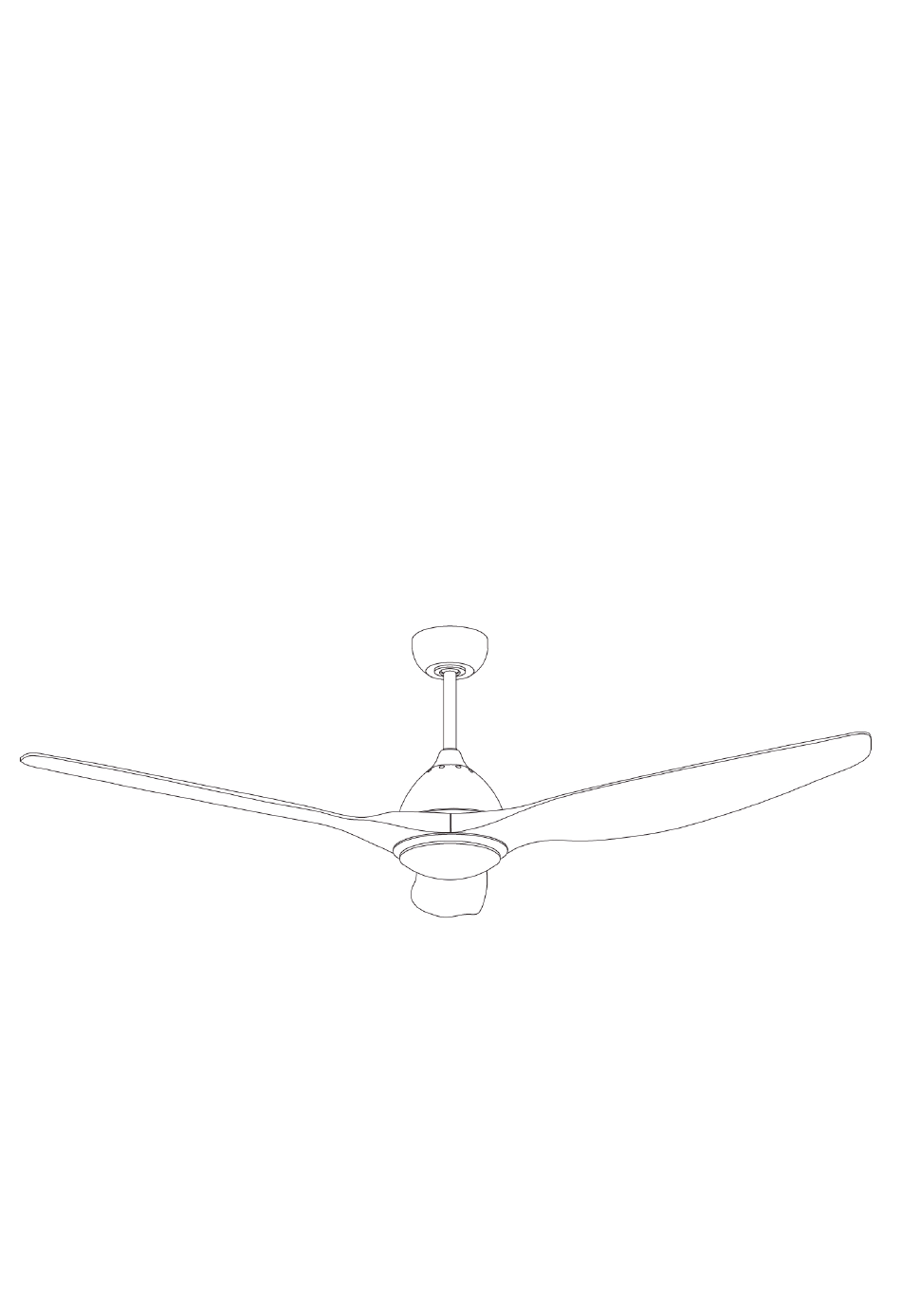

- Page 1 V20220436 CFN-1506 Instruction Manual Read Carefully Before Use Keep for Future Reference...
-
Page 2: Table Of Contents
CONTENTS Introduction ......................1 Package List......................2 Safety Information ....................3 Preparation......................4 Initial Installation ....................5 Fan Housing Installation ................... 5 Downrod Mounting .................... 6 Circuit Connections ..................7 Canopy and Cover Installation ................. 8 Fan Blade Installation ..................8 Light Installation .................... -
Page 3: Package List
Package List Item Name Qty. Fan Blades Mounting Bracket Canopy Canopy Cover Downrod Coupling Cover Fan Housing Fan Motor Assembly Light Plate LED Light Kit Shade Remote Control Receiver Mounting Screws Mounting Bolts Metal Washers Wire Nuts Balance Kit... -
Page 4: Safety Information
Safety Information Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Preparation
Preparation 1. Turn Off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 6: Initial Installation
Initial Installation Junction Box Mounting Bracket Metal Washer Mounting Bolt/ Screw Supply Wires Step 1. Pass the supply wires from the junction box through the central hole of the mounting bracket. Step 2. Secure the bracket to the junction box with the metal washers and mounting bolts or screws. -
Page 7: Downrod Mounting
Downrod Mounting Canopy Downrod Canopy Cover Coupling Cover Locking Bolt Downrod Locking Pin Retaining Clip Step 1. Remove the locking pin and retaining clip from the downrod. Step 2. Loosen the two locking bolts on the top of the motor assembly. Step 3. -
Page 8: Circuit Connections
Circuit Connections Junction Box White (neutral) Black (live) Green or Bare Copper (ground) Black (“AC IN L”) White (“AC IN N”) Receiver Blue (light) Black (“to motor L”) White (neutral) Orange (for N) Green (ground) Red (for L) Blue (light) Red (for L) White (neutral) Orange (for N) -
Page 9: Canopy And Cover Installation
Canopy and Cover Installation Junction Box Mounting Bracket Mounting Bolt/Screw Canopy Canopy Cover Step 1. Tuck all the connections neatly into the outlet box. Step 2. Slide the canopy up to the ceiling mounting bracket and place the key hole slots over the mounting screws or bolts on the bracket. -
Page 10: Light Installation
Light Installation Step 1. Remove the bolts from the bottom of the fan motor assembly. Step 2. Feed the wire plug of the fan motor assembly through the middle of the light plate. Install the light plate onto the motor assembly and secure it by replacing and retightening the bolts. -
Page 11: Remote Control Operation
Remote Control Operation Install the remote control holder onto any wall or suitable flat surface using two mounting screws/ bolts. Upon first use, connect the remote control to its receiver in the fan by pressing LIGHT and HI on the remote control until a beep is heard. (Note that this programming cannot be done for the first 30 seconds after the receiver is turned on.) Function Starts the fan at low speed... -
Page 12: Troubleshooting
Troubleshooting Potential Problems Common Solutions Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. Replace the remote control’s batteries. Fan blades don't rotate Check that the fan cover is correctly placed and no screws interfere with the movement of the blades. -
Page 13: Contact Information
Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at help@cs-supportpro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right. - Page 14 C F N - 1 5 0 6 - B K Rev. 24 Apr. 2022...
