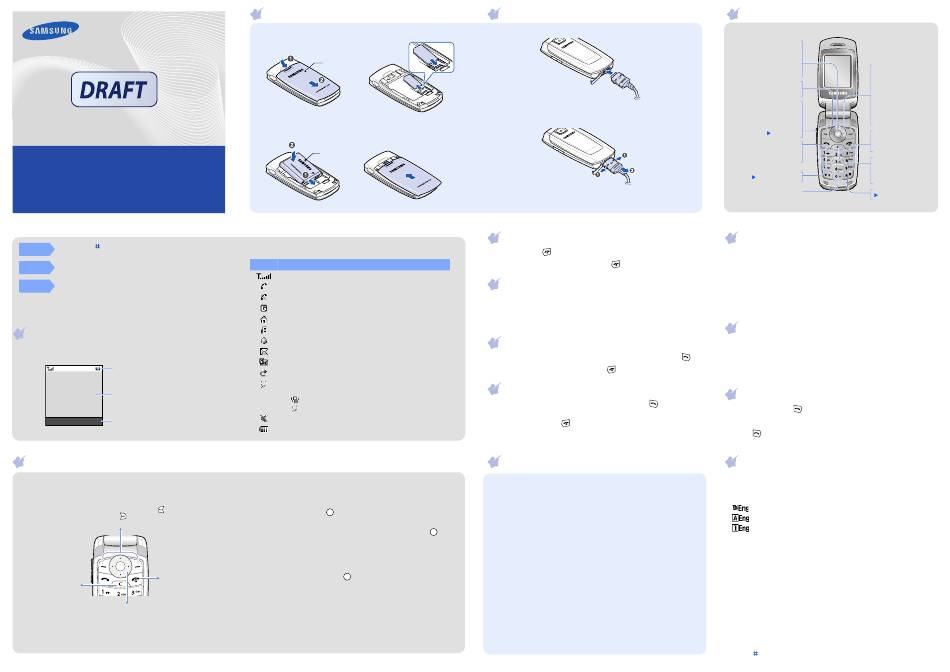

SGH-X560L

User's Guide

• Depending on the software installed or your service provider or country,

some of the descriptions in this guide may not match your phone exactly.

• Depending on your country, your phone and accessories may appear different

from the illustrations in this guide.

Printed in Korea

Code No.: GH68-xxxxxA

World Wide Web

http://www.samsungmobile.com

English (LTN). 03/2007. Draft

Silent

Press and hold

in Idle mode to disable all sounds on the phone.

To exit, press and hold this key again.

mode

Voicemail

Press and hold

in Idle mode to access your voicemail server.

server

With the phone closed, press the Volume keys four times to send an

SOS

SOS message to preset phone numbers. Once the SOS message is

mode

sent, the phone will change to SOS mode and will receive calls only

from the SOS message recipients until the SOS mode is cancelled.

Upon receiving a call from the SOS message recipients, the phone

will automatically answer the call, after one vibration, relaying the

emergency situation to the caller.

Display

Your phone is in Idle mode when you are not on a call or using a menu.

You must be in Idle mode to dial a phone number.

Icons

Text and graphics

Soft key function

Phonebook

indicators

Using the menus

In Idle mode, press the

soft key to enter the main menu.

Labels at the bottom corners of the

display show the current soft key

functions. Press the left soft key (

)

or right soft key (

) to perform the

function indicated.

To exit the

To return to the

menu without

previous menu

changing the

level, press the

menu settings,

Back

soft key or

press this key.

Use the 4-way navigation keys to scroll

up, down, left, or right through the menu

system, highlight menu items, change

feature settings, and play games.

Installing the SIM card and battery

1. Remove the battery cover and insert the SIM card.

Battery cover

2. Install the battery and reattach the cover.

Battery

Your phone displays the following status indicators on the top of the

screen:

Icon

Description

Received signal strength

Call in progress

Out of your service area; you cannot send or receive calls

GPRS network

Home Zone, if you have registered for the appropriate service

Office Zone, if you have registered for the appropriate service

Alarm set

New SMS message

New MMS message

Call diverting feature active

Call ringer type

• None: Melody

•

: Vibration

•

: Vibration then melody

Silent mode

Battery power level

To select or modify a menu or feature:

1. In Idle mode, press the

soft key.

2. Press the Navigation keys to reach a desired menu and then press

the

Select

soft key or

3. If the menu contains any submenus, locate the one you want by

pressing the Navigation keys. Press the

Select

soft key or

enter the submenu.

If the selected menu contains additional submenus, repeat this step.

4. Press the Navigation keys to find the setting of your choice.

5. Press the

Select

soft key or

to confirm your chosen setting.

Shortcut numbers

You can quickly access the menu you want by using shortcut numbers.

The shortcut number displays in front of the menu name in Menu mode.

Charging the battery

1. Plug the supplied travel adapter.

To AC wall outlet

2. When charging is finished, unplug the adapter.

Note: Do not remove the battery from the phone without unplugging the

adapter first. Otherwise, the phone may be damaged.

Switching on or off the phone

1. Press and hold

for more than one second to switch on the phone.

2. To switch off the phone, press and hold

Changing the display language

1. In Idle mode, press the

soft key.

2. Select

Phone settings

Language

Text

→

3. Select a language.

Making a call

1. In Idle mode, enter an area code and phone number, and press

2. When you want to end the call, press

Answering a call

1. When the phone rings, press the

soft key or

call.

2. To end the call, press

Menu map

1. Call log

5. Messages

1.1 Missed calls

5.1 Text messages

1.2 Received calls

5.2 Multimedia messages

1.3 Dialled calls

5.3 Push messages

1.4 Delete all

5.4 Preset messages

1.5 Call time

5.5 Voice mail

1.6 Call costs*

5.6 Broadcast

5.7 Settings

2. Network services

5.8 SOS messages

5.9 Memory status

2.1 Call diverting

2.2 Call barring

6. Fun box

2.3 Call waiting

2.4 Network selection

6.1 WWW services

2.5 Caller ID

6.2 Media box

2.6 Band selection

6.3 JAVA world

2.7 Active line*

7. Planner

3. Applications

7.1 New memo

7.2 Calendar

3.1 Voice recorder

7.3 To do list

3.2 SIM-AT*

7.4 Clock

7.5 Alarm

4. Sound settings

7.6 Calculator

4.1 Incoming calls

7.7 Converter

4.2 Messages

7.8 Timer

4.3 Power on/off

7.9 Stopwatch

4.4 Connection tone

4.5 Keypad tone

8. Camera

4.6 Minute minder

8.1 Take photos

4.7 Silent mode

8.2 My photos

4.8 Alerts on call

Phone layout and key functions

Web access/

Confirm key

In Idle mode, accesses

the web browser. Selects

the highlighted option or

confirms input in Menu

mode.

Soft keys

Perform functions indicated

by the text above the key.

Volume keys

In Idle mode, adjust the

keypad tone volume.

Send an SOS message

when pressed four times

with the phone closed.

SOS mode

Dial key

Makes and answers a call.

In Idle mode, retrieves

the most recent calls.

Voicemail server key

Voicemail server

Alphanumeric keys

Adjusting the volume

1. In Idle mode, press the

2. Select

Sound settings

for more than two seconds.

3. Press the Navigation keys to adjust the volume level.

4. Press the

Save

soft key.

While a call is in progress, press

volume.

language.

Changing a ringtone for calls

1. In Idle mode, press the

2. Select

Sound settings

sounds.

3. Select a ringtone and press the

Redialing recent numbers

to answer a

1. In Idle mode, press

2. Press

Down

to scroll to the number you want.

3. Press

to dial the number.

Entering text

Changing the text input mode

8.3 Delete all

8.4 Settings

8.5 Memory status

In a text input field, press the right soft key until the input mode indicator

you want appears:

9. Phone settings

9.1 Display

•

: T9 mode

9.2 Greeting message

•

: ABC mode

9.3 Language

9.4 Offline mode

•

: Number mode

9.5 Security

9.6 Auto redial

• None: Symbol mode

9.7 Anykey answer

9.8 Active folder

T9 mode

9.9 Volume key

9.0 Reset settings

1. Press

to start entering a word. Press each key once for one

Phonebook

letter.

1 Find name

2 FDN list

Example: To enter Hello in T9 mode, press 4, 3, 5, 5, and 6.

3 Add entry

T9 predicts the word that you are typing, and it may change with each

4 Speed-dial list

5 Own number

key that you press.

6 Group setting

7 Management

2. Enter the whole word before editing or deleting characters.

8 SDN*

3. When the word displays correctly, go to step 4. Otherwise, press

display alternative word choices for the keys that you have pressed.

Shows only if supported

For example, Of and Me use

by your SIM card.

4. Press

to insert a space and enter the next word.

4-way navigation

keys

In Menu mode, scroll

through menu options.

In Idle mode, access

the following menus:

Up: Camera

Down: Find name

Left: Create

Right: Calendar

Power/End key

Turns the phone on or

off when held down.

Also ends a call.

Cancel/Clear key

Deletes characters from

the display. Returns the

display to the previous

menu level.

Silent mode key

Silent mode

soft key.

Incoming calls

Ring

volume.

→

Down

to adjust the earpiece

soft key.

Incoming calls

Default ringtones

→

Yes

soft key.

and 3.

Table of Contents

Need help?

Do you have a question about the SGH-X560L and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung SGH-X560L

Page 1 Installing the SIM card and battery Charging the battery Phone layout and key functions SGH-X560L User’s Guide 1. Remove the battery cover and insert the SIM card. 1. Plug the supplied travel adapter. Web access/ Confirm key In Idle mode, accesses the web browser.
Page 2 Use only Samsung-approved batteries and accessories, such as headsets and Wireless phones can cause interference. Using them in an aircraft is both illegal The exposure standard for wireless phones employs a unit of measurement...
Page 3: Exposure To Radio Frequency (Rf) Signals
Health and safety information Exposure to Radio Frequency (RF) Signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S.
Page 4 Health and safety information The standards include a substantial safety certified power level in all tested frequency margin designed to assure the safety of all bands. persons, regardless of age and health. Although the SAR is determined at the The exposure standard for wireless phones highest certified power level, the actual SAR employs a unit of measurement known as level of the phone while operating can be...
Page 5: For Body Operation
SAR levels of various phones exposure guidelines when used with a and at various positions, they all meet the Samsung-supplied or approved accessory government requirement. designated for this product or when used The FCC has granted an Equipment...
Page 6: Precautions When Using Batteries
Health and safety information Federal Communications Commission (FCC) Precautions when using batteries http://www.fcc.gov • Never use any charger or battery that is Cellular Telecommunications Industry damaged in any way. Association (CTIA): • Use the battery only for its intended http://www.wow-com.com purpose.
Page 7 A phone with a hot or cold discharge itself over time. battery may temporarily not work, even • Use only Samsung-approved batteries when the battery is fully charged. Li-ion and recharge your battery only with batteries are particularly affected by Samsung-approved chargers.
Page 8: Road Safety
Health and safety information • Dispose used batteries in accordance • Get to know your wireless phone and its with local regulations. Always recycle. Do features, such as speed dial and redial. If not dispose batteries in a fire. available, these features help you to place your call without taking your Road safety attention off the road.
Page 9 • Let the person you are speaking with • Do not engage in stressful or emotional know you are driving; if necessary, conversations that may be distracting. suspend the call in heavy traffic or Make the people with whom you are hazardous weather conditions.
Page 10: Operating Environment
Health and safety information • If you see a broken-down vehicle posing As with other mobile radio transmitting no serious hazard, a broken traffic equipment, users are advised that for the signal, a minor traffic accident where no satisfactory operation of the equipment and one appears injured, or a vehicle you for the safety of personnel, it is know to be stolen, call roadside...
Page 11: Hearing Aids
Pacemaker manufacturers recommend that Hearing aids a minimum distance of 15 cm (6 inches) be Some digital wireless phones may interfere maintained between a wireless phone and a with some hearing aids. In the event of such pacemaker to avoid potential interference interference, you may wish to consult your with the pacemaker.
Page 12: Posted Facilities
Health and safety information Vehicles areas could cause an explosion or fire resulting in bodily injury or even death. RF signals may affect improperly installed or inadequately shielded electronic systems in Users are advised to switch off the phone motor vehicles. Check with the while at a refueling point (service station).
Page 13: Emergency Calls
Emergency calls To make an emergency call: If the phone is not on, switch it on. This phone, like any wireless phone, 1. Key in the emergency number for your operates using radio signals, wireless and present location (for example, 911 or landline networks as well as user- other official emergency number).
Page 14: Other Important Safety Information
Health and safety information If certain features are in use (call barring, be dangerous and may invalidate any for example), you may first need to warranty applicable to the device. deactivate those features before you can • Check regularly that all wireless phone make an emergency call.
Page 15: Care And Maintenance
• Switch off your phone before boarding an • Keep the phone dry. Precipitation, aircraft. The use of wireless phones in humidity and liquids contain minerals aircraft is illegal and may be dangerous that will corrode electronic circuits. to the aircraft’s operation. •...
Page 16 Health and safety information damage the phone’s electronic circuit • Use only the supplied or an approved boards. replacement antenna. Unauthorized antennas or modified accessories may • Do not drop, knock or shake the phone. damage the phone and violate Rough handling can break internal circuit regulations governing radio devices.
Page 17: Acknowledging Special Precautions And The Fcc And Industry Canada Notice
Acknowledging Special equipment generates, uses and can radiate radio frequency energy and, if Precautions and the FCC and not installed and used in accordance with Industry Canada Notice the instructions, may cause harmful interference to radio communications. FCC Notice However, there is no guarantee that •...
Page 18 Changes or modifications made in the radio receiver is connected. phone, not expressly approved by Samsung, - Consult the dealer or an experienced will void the user’s authority to operate the equipment.
Page 19: Appendix A: Certification Information (Sar)
Appendix A: CERTIFICATION evaluation of scientific studies. The standards include a substantial safety INFORMATION (SAR) margin designed to assure the safety of all THIS MODEL PHONE MEETS THE persons, regardless of age and health. GOVERNMENT’S REQUIREMENTS FOR The exposure standard for wireless mobile EXPOSURE TO RADIO WAVES.
Page 20 In general, the closer you are to a Samsung-supplied, approved or none wireless base station antenna, the lower the Samsung designated accessories that have power output. no metal and must provide at least 1.5cm separation between the device, including its...
Page 21: Appendix B: Guide To Safe And Responsible Wireless Phone Use
Appendix B: Guide to Safe and AND VALUE DELIVERED BY THE WIRELESS TELEPHONE. QUITE SIMPLY, THE WIRELESS Responsible Wireless Phone PHONE GIVES PEOPLE THE POWERFUL ABILITY TO COMMUNICATE BY VOICE- ALMOST ANYWHERE, ANYTIME-WITH THE Cellular Telecommunications & Internet BOSS, WITH A CLIENT, WITH THE KIDS, Association “Safety is the most important WITH EMERGENCY PERSONNEL OR EVEN call you will ever make.”...
Page 22 Health and safety information while driving a motor vehicle whether on the protecting us in emergencies and providing phone or not. opportunities to help others in need. When it comes to the use of wireless phones, safety The basic lessons are ones we all learned as is your most important call.
Page 23 2. When available, use a hands free device. are driving; if necessary, suspend the A number of hands free wireless phone call in heavy traffic or hazardous weather accessories are readily available today. conditions. Rain, sleet, snow and ice can Whether you choose an installed be hazardous, but so is heavy traffic.
Page 24 Health and safety information moving or before pulling into traffic. Try 8. Use your wireless phone to call for help. to plan your calls before you begin your Your wireless phone is one of the trip or attempt to coincide your calls with greatest tools you can own to protect times you may be stopped at a stop sign, yourself and your family in dangerous...
Page 25 10. Call roadside assistance or a special Cellular Telecommunications Industry wireless non emergency assistance Association and the wireless industry have number when necessary. Certain conducted educational outreach to inform situations you encounter while driving wireless phone users of their responsibilities may require attention, but are not as safe drivers and good citizens.
Page 26: Appendix C: Consumer Update On Wireless Phones
Health and safety information Appendix C: Consumer Update at greater distances from the user, the exposure to RF is drastically lower because a on Wireless Phones person’s RF exposure decreases rapidly with U.S. Food and Drug Administration increasing distance from the source. The so- called “cordless phones,”...
Page 27 also emit very low levels of RF when in the 3. What is FDA’s role concerning the safety stand-by mode. Whereas high levels of RF of wireless phones? can produce health effects (by heating Under the law, FDA does not review the tissue), exposure to low level RF that does safety of radiation emitting consumer not produce heating effects causes no...
Page 28 Health and safety information urged the wireless phone industry to take a federal level. The following agencies belong number of steps, including the following: to this working group: • Support needed research into possible • National Institute for Occupational Safety biological effects of RF of the type and Health emitted by wireless phones;...
Page 29 with FCC safety guidelines that limit RF FDA is working with the U.S. National exposure. FCC relies on FDA and other Toxicology Program and with groups of health agencies for safety questions investigators around the world to ensure about wireless phones. that high priority animal studies are conducted to address important questions FCC also regulates the base stations that the...
Page 30 Health and safety information FDA and the Cellular Telecommunications & 5. What steps can I take to reduce my Internet Association (CTIA) have a formal exposure to radio frequency energy from Cooperative Research and Development my wireless phone? Agreement (CRADA) to do research on If there is a risk from these products—and at wireless phone safety.
Page 31 example, you could use a headset and carry teenagers using wireless phones. Reducing the wireless phone away from your body or the time of wireless phone use and use a wireless phone connected to a remote increasing the distance between the user antenna and the RF source will reduce RF exposure.
Page 32 Health and safety information 7. Do hands-free kits for wireless phones regardless of whether they are used against reduce risks from exposure to RF the head or against the body. Either emissions? configuration should result in compliance with the safety limit. Since there are no known risks from 8.
Page 33 kits, these so-called “shields” may interfere electromagnetic interference (EMI) of with proper operation of the phone. The implanted cardiac pacemakers and phone may be forced to boost its power to defibrillators from wireless telephones. This compensate, leading to an increase in RF test method is now part of a standard absorption.
Page 34 Health and safety information test methods and performance requirements the effects of radio frequency energy (RF) for hearing aids and wireless phones so that exposures characteristic of wireless phones no interference occurs when a person uses a have yielded conflicting results that often compatible phone and a compatible hearing cannot be repeated in other laboratories.
Page 35 what the results of such studies mean for 11. What research is needed to decide human health. whether RF exposure from wireless phones poses a health risk? Three large epidemiology studies have been published since December 2000. Between A combination of laboratory studies and them, the studies investigated any possible epidemiological studies of people actually association between the use of wireless...
Page 36 Health and safety information time tumors develop - if they do - may be Occupational Safety and Health many, many years. The interpretation of Administration’s (OSHA): epidemiological studies is hampered by http://www.osha-slc.gov/SLTC/ difficulties in measuring actual RF exposure radiofrequencyradiation/index.html during day-to-day use of wireless phones. National Institute for Occupational Safety Many factors affect this measurement, such and Health (NIOSH):...

Samsung SGH-X560L User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung SGH-X560L

Summary of Contents for Samsung SGH-X560L
