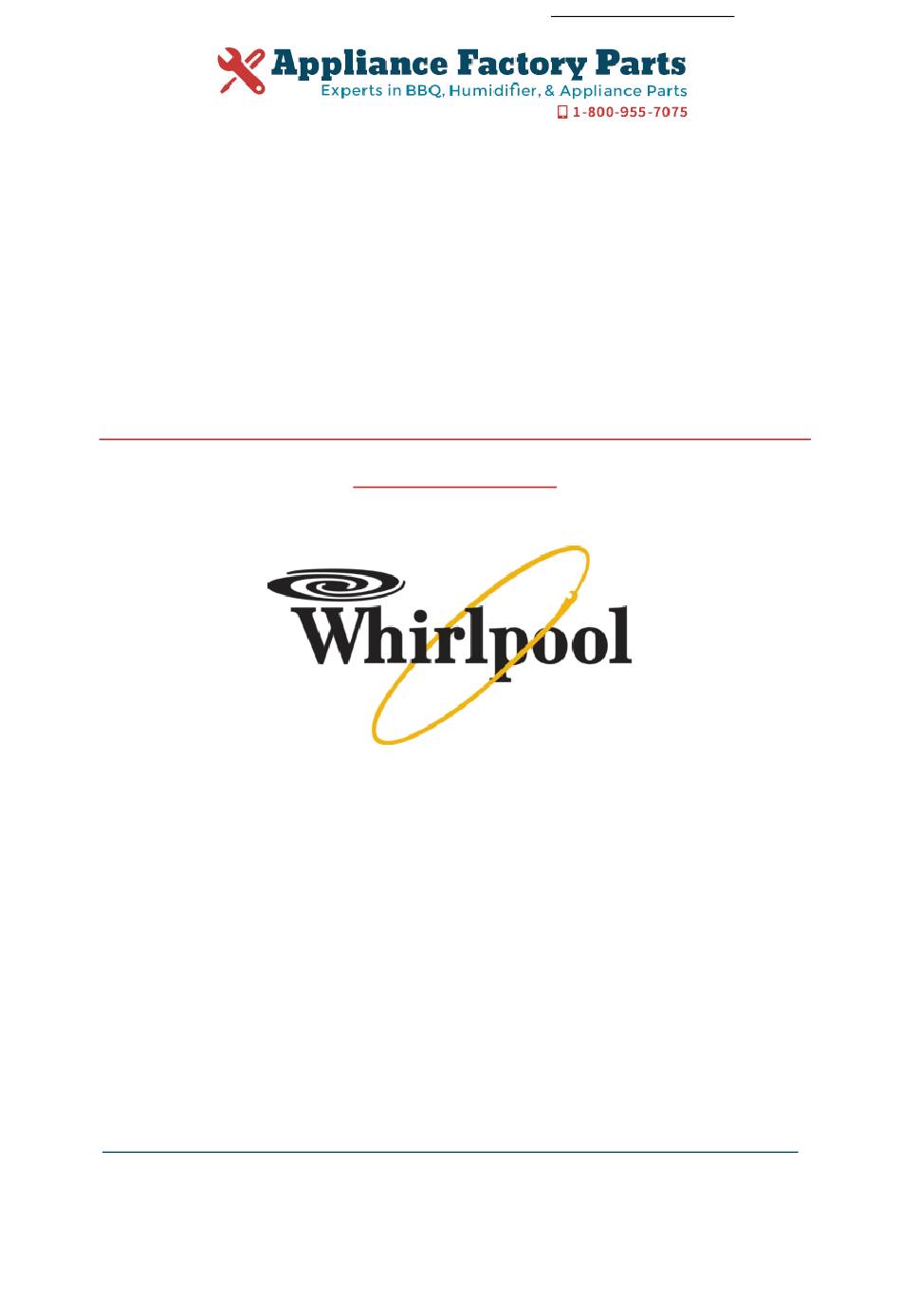

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. WHIRLPOOL WED8800YW0 Owner's Manual Shop genuine replacement parts for WHIRLPOOL WED8800YW0 Find Your WHIRLPOOL Dryer Parts - Select From 3708 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for WHIRLPOOL WED8800YW0 3804FF 4 FT FILL HOSE WP3390719 THERMAL FUSE AFTERMARKET 10C7 LIGHT BULB 10 W 130V SCREW 8577274 THERMISTOR DR AFTERMARKET WP8544742 BELT DR AFTERMARKET 72017 TUCHUP AW 350930 SPRAY AW 280148 CUTOFF-TML AW OEM...
-
Page 3: Table Of Contents
Electric Dryer Installation Instructions Table of Contents DRYER SAFETY ................. 2 INSTALLATION REQUIREMENTS ..........3 Tools and Parts ..............3 LOCATION REQUIREMENTS ............ 4 ELECTRICAL REQUIREMENTS ..........5 INSTALL LEVELING LEGS ............6 ELECTRICAL CONNECTION ............ 7 VENTING ................... 12 Venting Requirements ............ -
Page 4: Dryer Safety
DRYER SAFETY... -
Page 5: Installation Requirements
INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed: Parts supplied (all models): Leveling legs (4) Flat-blade screwdriver #2 Phillips screwdriver Parts supplied (steam models): Adjustable wrench that Level opens to 1"... -
Page 6: Location Requirements
LOCATION REQUIREMENTS INSTALLATION CLEARANCES Location must be large enough to allow dryer door to open fully. DRYER DIMENSIONS Side view with open door dimensions: You will need: A location allowing for proper exhaust installation. See ■ Back view: “Venting Requirements.” A separate 30 amp circuit. -
Page 7: Electrical Requirements
ELECTRICAL REQUIREMENTS Spacing for recessed area or closet installation All dimensions show recommended spacing allowed, with tested It is your responsibility: spacing of 0" (0 mm) clearance on sides and rear. To contact a qualified electrical installer. ■ Additional spacing should be considered for ease of ■... -
Page 8: Install Leveling Legs
INSTALL LEVELING LEGS If your outlet looks like this: Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft. (1.22 m) long, must have 4 10-gauge solid copper wires and match a 4-wire receptacle of NEMA Type 14-30 R. -
Page 9: Electrical Connection
ELECTRICAL CONNECTION Remove terminal block cover Power Supply Cord Before you start, disconnect power. Remove hold-down screw (D) and terminal block cover (A). A. Terminal block cover B. External ground conductor screw C. Center terminal block screw D. Hold-down screw E. - Page 10 If your outlet looks like this: Connect neutral ground wire Power supply cord 4-wire receptacle and neutral wire (NEMA Type 14-30R): Go to “4-Wire Power Supply Cord Connection” on this page. Power supply cord 3-wire receptacle (NEMA Type 10-30R): Go to “3-Wire Power Supply Cord Connection”...
-
Page 11: Direct Wire Connection
3-wire Power Supply Cord Connection Connect remaining wires Use where local codes permit connecting cabinet-ground conductor to neutral wire. 3-wire receptacle (NEMA 3-prong plug type 10-30R) Connect remaining wires to outer terminal block screws. Tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. - Page 12 Prepare to connect neutral Attach direct wire cable ground wire and neutral wire to strain relief Put direct wire cable through the strain relief. The strain relief should have a tight fit with the dryer cabinet and be in a horizontal position. Tighten strain relief screw against the direct wire cable.
- Page 13 Connect remaining wires Connect neutral wire Place hooked end of neutral wire (white Place hooked ends of remaining direct wire cable wires or center) (C) of direct wire cable under under outer terminal block screws (hooks facing right). center terminal block screw (B). Squeeze Squeeze hooked ends together and tighten screws.
-
Page 14: Venting
VENTING Connect neutral ground wire and neutral wire VENTING REQUIREMENTS Connect neutral ground wire (E) and neutral wire (white or center wire) (C) of power supply cord or cable under center terminal block screw (B). Tighten screw. Connect remaining wires WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS. -
Page 15: Plan Vent System
Exhaust hoods: PLAN VENT SYSTEM Must be at least 12" (305 mm) from ground or any object that ■ Recommended exhaust installations may obstruct exhaust (such as flowers, rocks, bushes, or snow). Typical installations vent the dryer from the rear of the dryer. Other installations are possible. - Page 16 Special provisions for mobile homes: If you prefer, dryer may be converted to exhaust through the bottom. You must contact your local dealer to have Exhaust vent must be securely fastened to a noncombustible dryer converted. portion of mobile home and must not terminate beneath the mobile home.
-
Page 17: Install Vent System
CONNECT INLET HOSES Maytag Vent System Chart For non-steam models, skip to “Connect Vent.” The dryer must be connected to the cold water faucet using Type Box/louvered Number of Angled 90° elbows of vent hoods hoods the new inlet hoses. Do not use old hoses. - Page 18 Attach long hose to “Y” Turn on cold water faucet connector and tighten couplings Check that the water faucets are turned on. One end of the long hose has a wire mesh strainer inside the Check for leaks coupling. Attach this end to the “Y” connector. Attach washer cold inlet hose to other side of “Y”...
-
Page 19: Connect Vent
CONNECT VENT LEVEL DRYER Level Dryer Connect vent to exhaust outlet Place level here Place level here Using a 4" (102 mm) clamp, connect vent to exhaust outlet in dryer. If connecting to existing vent, make sure vent is clean. Dryer vent must fit over dryer exhaust outlet and inside exhaust hood. -
Page 20: Complete Installation Checklist
COMPLETE INSTALLATION REVERSE DOOR SWING CHECKLIST You can change your door swing from a right-side opening to a left-side opening, if desired. Check that all parts are now installed. If there is an extra 1. Place a towel or soft cloth on top of dryer or work space to part, go back through steps to see what was skipped. -
Page 21: Troubleshooting
Reverse the strike 4. Install the two hinges to the front panel of the dryer using 4 screws. Use the non-slotted side to attach the hinge 1. Remove the door strike from the dryer door opening. to the front panel. 2. -
Page 22: Dryer Results
Instructions.” W10392124B W10392125B-SP ® Registered Trademark/™ Trademark of Whirlpool, U.S.A., Whirlpool Canada LP licensee in Canada ® Registered trademark/™ Trademark of Maytag Properties, LLC or its related companies. © 2011 11/11 Used under license by Maytag Limited in Canada. All rights reserved...
