ATD Tools ATD-2P9A Owner's Manual

9,000 lbs. two post clear floor lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ATD-2P9A
9,000 lbs. Two Post Clear Floor Lift
Owner's Manual
Features:
Specifications:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-2P9A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATD Tools ATD-2P9A

Summary of Contents for ATD Tools ATD-2P9A

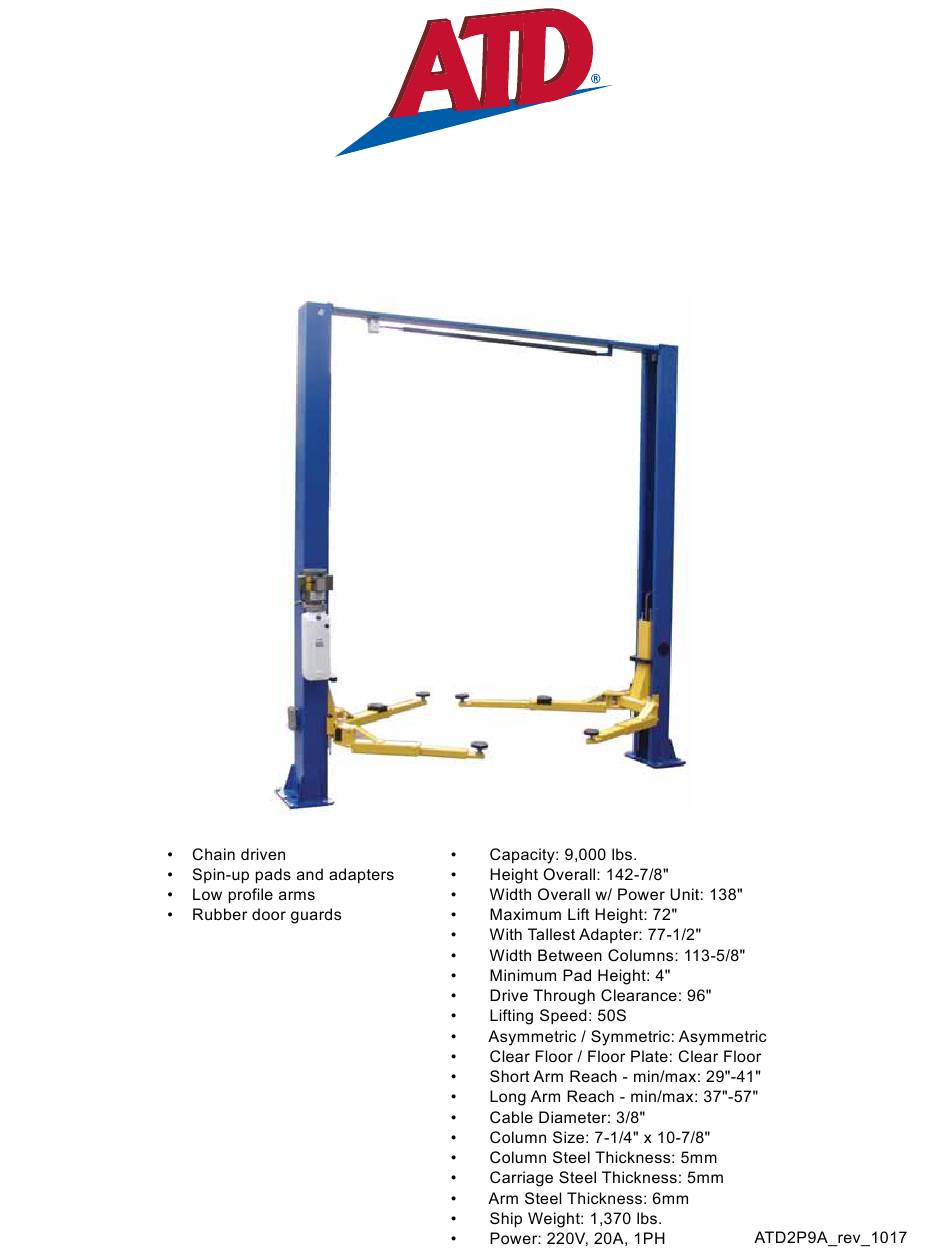

  • Page 1 ATD-2P9A 9,000 lbs. Two Post Clear Floor Lift Owner’s Manual Features: Specifications:...

  • Page 2: Important Notes

    IMPORTANT NOTES READ THE INSTALLATION AND OPERATION MANUAL IN ITS ENTIRETY BEFORE ATTEMPTING TO INSTALL THE LIFT. Do not install this lift on any surface other than concrete, conforming to minimum specifications. Do not install this lift over expansion joints or cracks. Check with building architect. Do not install this lift on a second floor with a basement beneath without written authorization from building architect.

  • Page 3: General Information

    PREPARATION The installation of this lift is relatively simple and can be accomplished by 2 men in a few hours. The following tools and equipment are needed: • 12 quarts of Non-Detergent / Non-Foaming Hydraulic Oil - SAE-10, AW 32 or equivalent •...
  • Page 4 dW < y dW <^y...

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS STEP 1: (Selecting Site) Before installing your new lift, check the following: LIFT LOCATION: Always use architects plans when available. Check layout dimension against floor plan requirements making sure that adequate space is available (Fig. 2, 2a, 2b & Fig. 3). Fig.
  • Page 6 Fig. 2a (TP9KACX - Asymmetric Lift) Fig. 2b (TP9KSCX - Symmetric Lift) dW < y dW <^y...
  • Page 7 Fig. 3 (Column / Floor Layout) OVERHEAD OBSTRUCTIONS: The area where the lift is located should be free of overhead obstructions such as heaters, building supports, electrical lines, etc. (Fig 2.) DEFECTIVE CONCRETE: Visually inspect the site where the lifts will be installed and check for cracked or defective concrete.
  • Page 8 STEP 3: (Site Layout) Determine which side will be the approach side. Now determine which side you prefer the power unit to be located on. The MAIN column has the power-unit mounting bracket attached to the side, as shown in (Fig. 4). Note: the power unit column can be located on either side.
  • Page 9 STEP 5: (Installing OFFSIDE COLUMN & OVERHEAD BEAM ASSEMBLY) NOTE: Install Overhead Beam assembly to top of columns BEFORE drilling anchors for Offside column. This is to ensure that the Offside column can be properly positioned to be plumb and level.
  • Page 10 STEP 6: (Installing POWER UNIT) Attach the power unit to the mount bracket on the side of the Main Column using bolts, nuts and washers supplied (Fig. 7). Remove the vent plug from the power unit and fill the reservoir with hydraulic oil.
  • Page 11 STEP 7: (Installing / Routing EQUALIZER CABLES) Cont. Repeat above for the second cable. Adjust each equalizer cable to approximately 1/2” side-to-side play. Ensure that each cable has equal tension. Also, check the carriage height to ensure both carriages are sitting on the same latch. STEP 8: (Installing / Routing HYDRAULIC HOSES, HYDRAULIC FITTINGS &...
  • Page 12 STEP 9: (Installing Swing Arms & Arm Restraints) Cont. 2. Install arm restraint mechanisms to each swing arm, as shown below in (Fig. 13). 3. Check for proper engagement for the arm restraints as the gear rack should fully engage the gear on the arm.
  • Page 13 STEP 10: (Electrical Connection to POWER UNIT & OVERHEAD LIMIT SWITCH) 1. Have a certified electrician make the electrical connection to the power unit. Use a separate circuit for each power unit, as shown below in (Fig. 14). Fig. 14 IMPORTANT! The wiring must comply with local code.
  • Page 14 STEP 11: (Checking Operation) See next page for detailed Operation Instructions: Safety Latch 1. Do not place any vehicle on the lift at this time. Cycle the lift up ‘Cable Pull’ and down several times to ensure carriage latches click together Release and all air is removed from the hydraulic system.
  • Page 15 OPERATING INSTRUCTIONS RAISE LIFT 1. Read operating and safety manuals before using lift. 2. Always lift a vehicle according to the manufacturers recommended lifting points 3. Position vehicle between columns, as equally as possible. 4. Adjust swing arms so that the vehicle is positioned with the center of gravity midway between pads. 5.

  • Page 16: Safety Procedures

    SAFETY PROCEDURES • Never allow unauthorized persons to operate lift. Thoroughly train new employees in the operation and care of the lift. • Caution: the power unit operates at high pressure. • Remove passengers before raising vehicle. • Prohibit unauthorized persons from being in shop area while lift is in use. •...
  • Page 17 WARNING!! OSHA AND ANSI REQUIRE USERS TO INSPECT LIFTING EQUIPMENT AT THE START OF EVERY SHIFT. THESE AND OTHER PERIODIC INSPECTIONS ARE THE RESPONSIBILITY OF THE USER. DAILY PRE-OPERATION CHECK (8 HOURS) The user should perform Daily check. Daily check of the safety latch system is very important to prevent expensive property damage, lost production time, serious personal injury and even death.
  • Page 18 Only trained maintenance experts should perform lift service for the following items. • Replace hydraulic hoses • Replace chains and rollers. • Replace cables and sheaves. • Replace or rebuild air and hydraulic cylinders as required. • Replace or rebuild pumps / motors as required. •...

  • Page 19: Troubleshooting

    TROUBLESHOOTING Motor does not run: Breaker or fuse blown Faulty wiring connections. Call electrician. Defective up button. Call electrician for checking. Defective Capacitor. Call electrician for checking. Motor runs but will not raise: A. Oil level too low. Oil level should be just under the vent cap port when the lift is down!!! B.

  • Page 20: Power Unit Priming

    POWER UNIT PRIMING WARNING!! Failure to properly relieve pressure in the following steps can cause injury to personnel. dW < y dW <^y...

  • Page 21: Exploded View

    EXPLODED VIEW #1 dW < y dW <^y...
  • Page 22 EXPLODED VIEW #2 dW < y dW <^y...

  • Page 23: Parts List

    PARTS LIST ITEM Tux P/N M-Ref P/N DESCRIPTION NOTES TP9KACX-001 TT-6835-100-00AKY Mainside Column TP9KACX-002 TT-6835-100-00BKY Offside Column TP9KACX-003 TT-6934-400-10-00KY High Adaptor 4” TP9KACX-004 TT-6934-400-09-00KY Low Adaptor 1-3/8” TP9KACX-005 TT-6835-100-03 Cable Nut TP9KACX-006 TT-6934-100-14KY Adaptor Bracket Q235 TP9KACX-007 GB818-85 M8X10 Bolt M8x10 TP9KACX-008 GB95-1985 D8 Flat Washer D8...
  • Page 24 TP9KACX-040 SF-1 2515 Combined Bushing 2515 TP9KACX-041 TPF4-100-10-05 Cable Pulley TP9KACX-042 XG4.5A01-04 Spacer Q235-A TP9KACX-043 GB894.1-86 D25 Circlip D25 TP9KACX-044 TT-6835-100-02NEW Hose Cover Q235-A TP9KACX-045 GB5781-86 M10×35 Bolt M10x35 45.1 TP9KACX-045.1 GB6170-86 M10 Nut M10 TP9KACX-046 GB93-87 D10 Lock Washer D10 TP9KACX-047 GB97.2-85 D10 Washer D10...
  • Page 25 TP9KACX-077 TT-6835-500-01KY MS, Low Hyd. Hose 56.3” L=1430 TP9KACX-078 TT-6934-500-02 Hex Pipe Fitting 3.8B TP9KACX-079 TT-6934-500-07 Valve Insert TP9KACX-080 TT-6934-500-08 Valve Spring TP9KACX-081 TT-6934-500-06 Throttle Valve TP9KACX-082 COMBINED WASHER Combined Washer TP9KACX-083 JB/ZQ4770 Cap Nut M14 M14*1.5,45 TP9KACX-084 TPF4-CYLINDER-NEW Cylinder TP9KACX-085 TPF4-100-14-02 TP9KACX-086...
  • Page 26 dW < y dW <^y...
