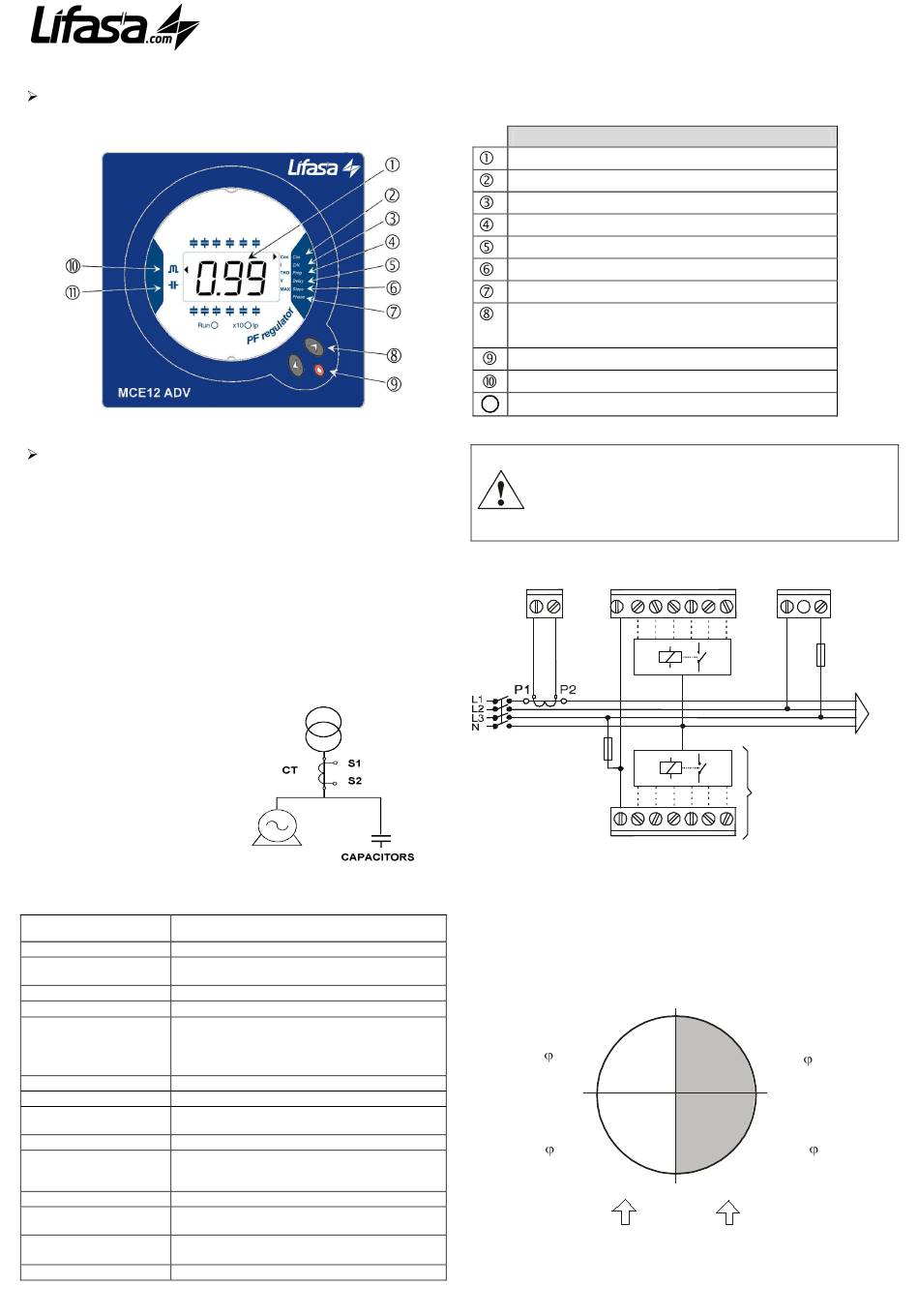

Lifasa MCE12 ADV Quick Start Manual

The MCE-ADV PF regulators measure cosϕ in a supply system and control the connection and disconnection of capacitors to obtain a target
programmed value.
This manual is an easy guide for the use and operation of the
MCE-ADV .
1.- Regulator Connection
For proper operation it's necessary to install a current transformer, CT
(normally In / 5 A), which primary must be sized according to the
maximum expected load current in the installation.
The regulator supply (C-D terminals) must be taken between two
phases and the CT should be located in the third phase. See technical
characteristics for cable sizes and required protections.
Must use an switch or automatic switch for supply the regulator
The current transformer , CT,
must be located so that
measures the whole load current
plus the correction capacitors
2.- TECHNICAL CHARACTERISTICS
Supply and V measurement input 480,400, 230 or 110 VAC +15% -10% ; 45-65 Hz , (see label)
terminals (C-D) Connect preferably to phases L2-L3
Supply cables size and protection Cross section 1,5mm
Current transformer (CT) , In /5 , Place preferably in phase L1
Current measurement circuit
Minimum cabling cross section 2,5mm
Current measurement margin 0,05 to 5 A (maximum overload +20%)
Voltage and current :1%; cosϕ : 2% ± 1 dígit
Accuracy of measurements
110V: 7 VA (no load) ; 8,8 VA(6 relays); 10 VA(12 relays)
230V: 7,4 VA (no load) ; 8,2 VA(6 relays); 9,9 VA(12 relays)
Power consumptions
400V: 5 VA (no load) ; 6,6 VA(6 relays); 8,8 VA(12 relays)
480V: 8,7 VA (no load) ; 9,5 VA(6 relays); 10,7 VA(12 relays)
Display 1 line x 3 digits x 7segments + 20 icons
Output Relay Contacts Max. 250 VAC, 10 A, AC1
Output Relay Cabling and Cabling cross section 1,5mm
Protection circuit breaker (C curve) or by a 6A fuse (gl type)
Alarm Output Relay Last relay automatically set as alarm output , if not in use
EN 61010, EN 61000-3-2, EN 61000-3-3, EN 50081-2, EN 50082-
Compliant to the following
1, EN 50082-2, EN 61000-4-2, EN 61000-4-4, EN 61000-4-8, EN
Standards
61000-4-5, EN 61000-4-11 , UL 94
Safety / Insulation Category III , Class II, According to EN 61010-1,
Temperature limits: -20ºC a +60ºC; Relative Humidity 95%
Environment limit conditions
(without condensation). Max. Altitude: 2000m
IP40 (panel mounted)
Protection degree
IP30 (regulator box) , According to EN-60529
Control system FCP (Minimum number of operations)
POWER FACTOR REGULATOR MCE-ADV
it
2
; 0,5 to 2A Fuses gl type
2
2
, Protection by means of a 6A
Display / Teclado
Standard mode: Displays cosϕ
cosϕ Indication / setting
C/K setting. See paragraph 6
Program setting. See 4.2
Delay time setting for switching on/off operations
Nr of steps setting
Setting CT phase and polarity connection
- Cursor keys (when in setting mode)
- Manual ON / OFF (push during more than 1s when in RUN mode)
- Push both to see the Nr of connected steps
SETUP KEY: Push during more than 1s to enter SETUP mode
Lagging current indication (Inductive load)
11 Leading current indication (Capacitive load)
Any manipulation or use of the equipment out of the conditions
specified by the manufacturer may put in risk the user safety. Before
any maintenance operation the equipment must be disconnected from power
supply. In case of miss operation or protection fault the equipment must be
disconnected from supply and remain out of service ensuring against any
accidental reconnection.
A B COM 1 2
S1 S2
RELAY
RELAY
COM 7
3.- Four Quadrants Operation
The MCE-ADV regulators operate in 4 quadrants (suitable for imported or
exported active power). For exported power, a negative symbol is displayed
in the cosϕ indication. Check phase connection and setup if there is no
exported energy and the indication is not correct (see 4.3, SET-UP - phase)
Lagging / Inductive
KW -
kVAr +
Cos -
180º
KW -
kVAr -
Cos -
Leading/Capacitive
Exported Power
3 4 5 6 C D
L2
C1..C6
C7..C12
Sólo en
MCE-12 ADV
8 9 10 11 12
90º
Lagging / Inductive
KW +
kVAr +
Cos +
0º
KW +
kVAr -
Cos +
Leading/Capacitive
-90º
Imported Power
MCE_ADV_02i
POWER
SUPPLY
L3
