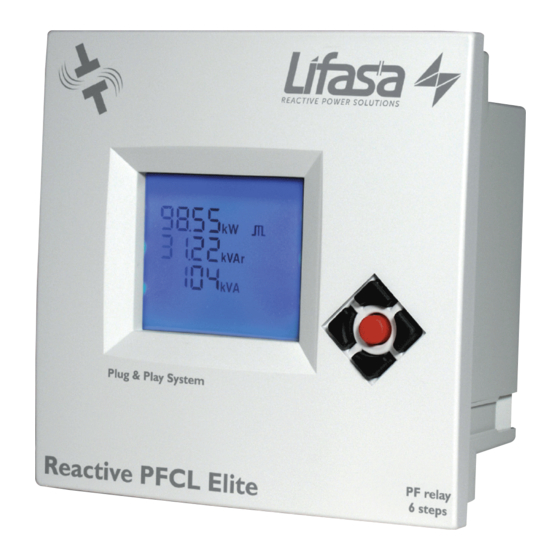

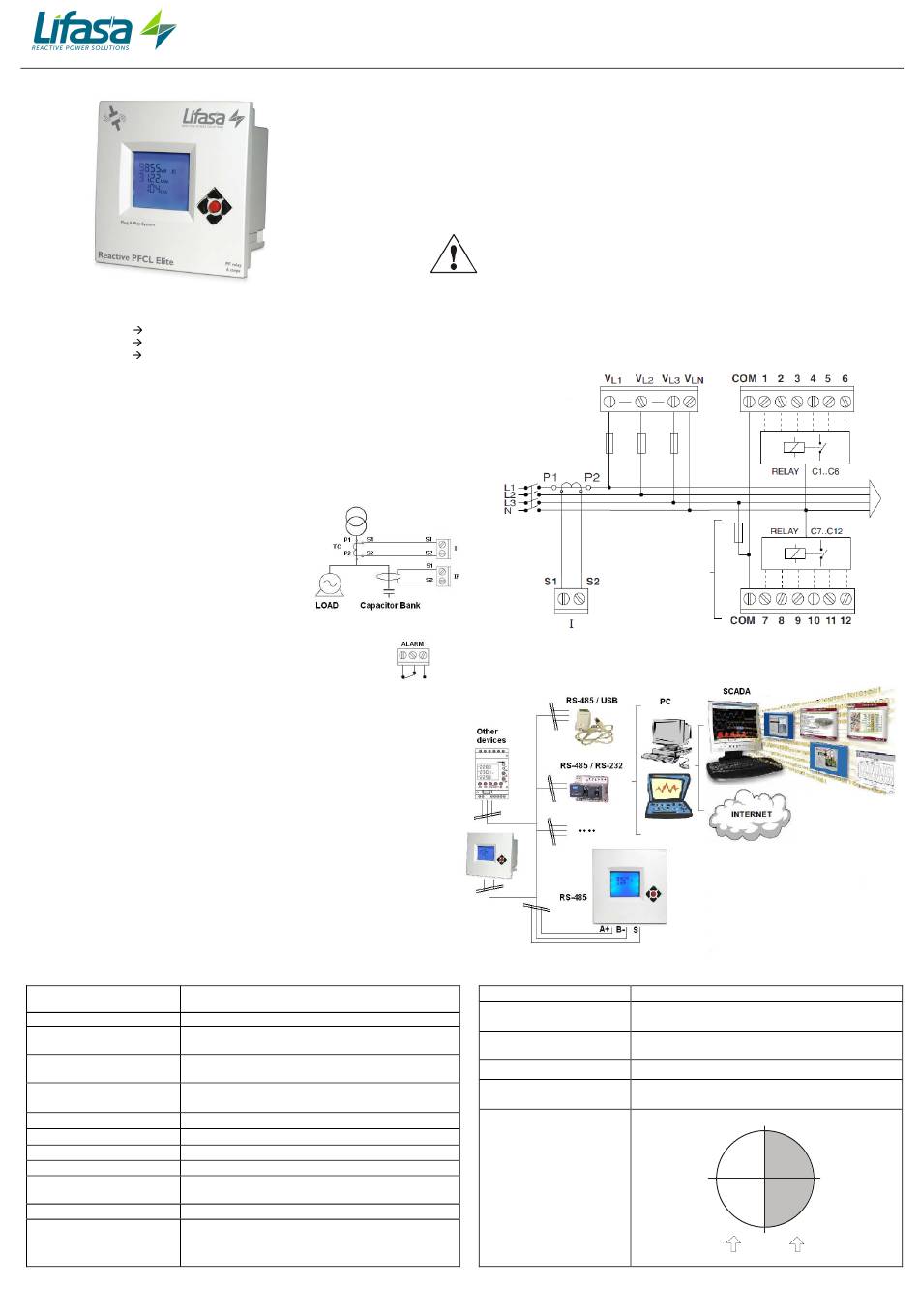

Lifasa PFCL Elite Quick Start Manual

1.- Principal functions

- Cos φ regulator Capacitor connection (6 or 12 steps)
- Network analyzer Measurement of electrical parameters
- Alarm manager Display and automatic solution

2.- Connections

A current transformer must be installed for the start-up (I
total current of the load.
The regulator power supply voltage will be two-phase, preferably L1 for U
L2 for U , and the current will preferably be taken from L1. It must be supplied by
L2
means of an automatic switch. See cable section and protections in the table of
technical features.
The current transformer must be placed in such
a way that it measures the total current of the
loads plus the capacitors.
The transformer for the leakage current must be
placed so that it measures the current in the
capacitor bank and must include lines L1, L2, L3
and N.
The unit has a switched relay exclusively for the alarm outlet.

2.1.- Communications

The PFCL Elite regulators can be connected to a computer or another unit by
means of the standard RS-485 bus included. This system is able to focus data
on a single registry point (Power Studio® System).
In a network of equipment, the PFCL Elite communicates by question-answer
(slave).
The PFCL Elite communicates with the MODBUS RTU© protocol, which
enables it to access the electrical parameter and the main variables and
configurations. Contact the manufacturer for the table of addresses.
See section 4.3. to change the communications configuration.

3.- Technical features

Main power supply and voltage 480, 400, 230, or 110 Vac. +15 % -10 %; 50 / 60 Hz, (see label)
measurement. Power supply: U
Power supply cables Section 1.5 mm
Current transformer, I
Current measurement circuit
cable section. 2.5 mm
Leakage current measurement Nominal secondary transf. current: I
circuit Transformer with ratio of 500: I
Current I: 0.05 to 5 A AC. (maximum overload +20 %)
Current measurement margin
Leakage current I
Measurement accuracy Voltage and current: 1 %; cos
Approx. external temperature. Range: 0...80 ºC. Accuracy: ± 3 ºC
Temperature measurement
Consumption 8.2 VA (empty) ; 9.3 VA (6 relays); 11 VA (12 relays)
Output Relays. Contacts for Umax. 250 Vac., 4 A AC., AC1.
Cabling and output relay Cable section 1.5 mm
protection of 6 A or gl 6 A fuse
Alarm relay Switched relay for use exclusively for the alarms
IEC 62053-23 (2003-01) Ed. 1.0
Standards IEC 61326-1, EN61010-1
UL 508
REACTIVE ENERGY REGULATOR
/ 5 A) depending on the
n
- U . Measurement U , U , U y U
L1 L2 L1 L2 L3 N
2
, gl 0.5 to 2 A protection fuse
/5 A AC., preferably on phase L1. Min.
n
2
sec = 2 mA AC.
∆
= 1 A AC. +20%
∆
: 0.01...1 A AC. (maximum overload +20 %)
∆
ϕ : 2 % ± 1 digit
2 , protection with circuit breaker (C curve)
PFCL Elite
This manual is intended as a rapid guide to the use and operation of the PFCL Elite
regulator.
Any manipulation or use of the equipment different from that specified by the
manufacturer may compromise user safety. The apparatus must be disconnected
from the power supply before carrying out any maintenance operation. In the event of
failure in the operation or the protections, the unit must be left out of service and its
reconnection must be prevented until the problem has been corrected.
and
L1
Safety /Insulation
Protection degree
Admissible environmental
conditions
Control system
Communications
The PFCL Elite regulator
measures and operates in 4
quadrants according to the
attached diagram.
Regulator PFCL Elite
Only for
PFCL Elite 12 steps
PFCL Elite
Category III, Class II , according to EN 61010-1
IP40 (equipment mounted, cabinet front panel)
IP30 (equipment not mounted) according to EN-60529
Temperature: -20...+60 ºC; Relative humidity: max. 95 %
(without condensation). Max. altitude: 2000 m
FCP (a programme that minimises the number of operations)
Interface: RS-485. Protocol MODBUS.
Speed: 9600, 19200, 38400
90º
Inductivo
KW -
kVAr +
ϕ
Cos -
180º
Capacitivo
KW -
kVAr -
ϕ
Cos -
-90º
Potencia Generada
Potencia Consum ida
Inductivo
KW +
kVAr +
ϕ
Cos +
0º
Capacitivo
KW +
kVAr -
ϕ
Cos +
Quick guide PFCL Elite
