SPECIFICATIONS
Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120/277VAC, 50/60Hz
Load Requirements
@ 120VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-800W ballast
@ 277VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-1200W ballast
@ 125VAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/6 hp
Time-Out Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 5 min. to 1 2 hours
Time-Out Override . . . . . . . . . . . . 5 min. to 1 hour in 5 min. increments
. . . . . . . . . . . . . . . . . . . . . 1 hour to 12 hours in 15 min. increments
Operating Temperature. . . . . . . . . . . . . . . . . . . 32° to 104°F (0° to 40°C)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . Rh 5% to 95%, non-condensing

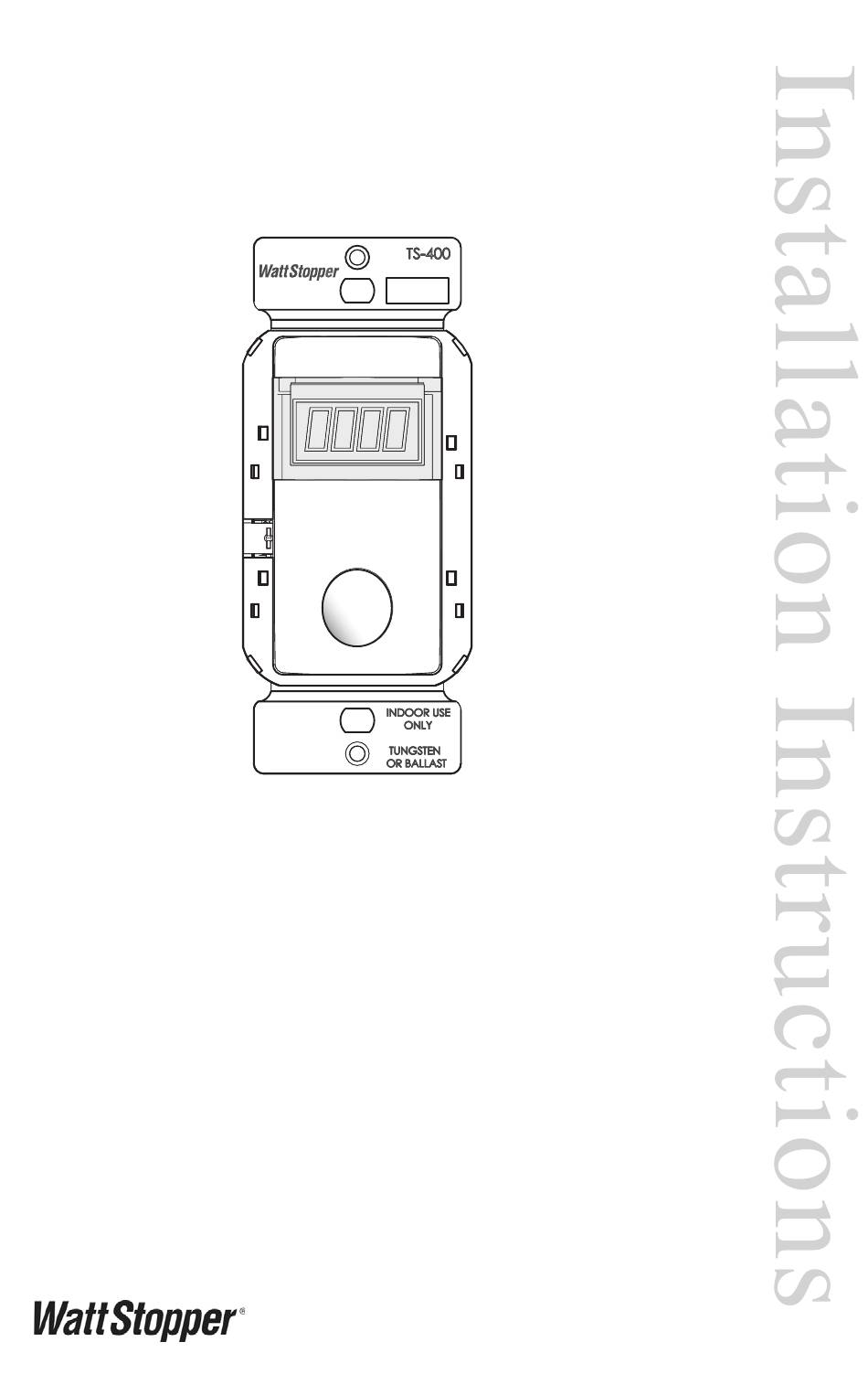

TS-400
InteliSwitch ® Digital Time Switch
120/277VAC
U.S. Patent: 5,540,113
5,804,991
Advertisement
Table of Contents
Related Manuals for wattstopper InteliSwitch TS-400
Summary of Contents for wattstopper InteliSwitch TS-400
- Page 1 TS-400 InteliSwitch ® Digital Time Switch 120/277VAC SPECIFICATIONS Voltages ....... . . 120/277VAC, 50/60Hz Load Requirements @ 120VAC.
-
Page 2: Unit Description And Operation
UNIT DESCRIPTION AND OPERATION The InteliSwitch ® TS-400 is a digital time switch that automatically turns lights off after a preset amount of time. The lights can also be turned off anytime during the timer’s countdown by pushing the ON/OFF button. The TS-400 has four adjustable features: time-out period, time scroll direction, time-out visual and audible warnings. Time-Out Period The timer can be adjusted to hold lights on for five minutes to 12 hours. The default setting is 3 hours. See the DELAY switch adjustment to set the length of the time-out period. Time Scrolling The user can manually and temporarily override the time-out period without changing the DELAY adjustment. The SCROLL adjustment determines whether the user’s override options decrease from a longer time to a shorter time (scroll down) or increase from a shorter time to a longer time (scroll up). To choose the scrolling direction, consider the time-out DELAY setting, and then whether the usual temporary need will be for more or less time. Override Operation: Holding the ON/OFF button for longer than 4 seconds causes the timer to scroll through time increments, starting from the time-out DELAY setting. Releasing the ON/OFF switch resumes the countdown from that point. The minimum override setting is 5 minutes, maximum 12 hours. The timer resets automatically to the time-out DELAY setting when the countdown runs out or the ON/OFF button is pushed. Visual (Flash) Option Timer Countdown If this option is on there are two occasions when the controlled lights flash. -
Page 3: Installation
INSTALLATION CAUTION: TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE WIRING. 1. Connect the existing wires to the switch terminals. • Hot to Line; • Load to Load; • Ground to Ground. 2. A ttach the time switch to the wall by mounting it in the wall box with 2 mounting screws provided. 3. T urn on power to the time switch 4. 7 -15 seconds after power is supplied to the time switch, it will be ready to function. The time switch beeps and the word OFF appears in the display. Push the ON/OFF switch to activate the lights. The timer begins its countdown. Push the ON/ OFF switch during countdown to turn the lights off. -
Page 4: Switch Adjustment
WIRING Wire insert #12 – #14 AWG Strip Gage Optional wire wrap Cu Wire Only 1/2" Insert or wrap wire as shown and tighten screw 12.7mm in the clockwise direction. SWITCH ADJUSTMENT Enter Settings Mode by pressing the Calibration Button (located on the left, behind the faceplate). LCD Display • I f no input occurs within four seconds the display flashes then moves to the next setting. • Press the Calibration Button to view the settings Calibration without making changes. Button • Press the ON/OFF button within four seconds to change the setting. -
Page 5: Troubleshooting
TROUBLESHOOTING CAUTION TURN OFF THE POWER AT THE CIRCUIT BREAKER BEFORE WORKING WITH HIGH VOLTAGE Lights will not turn on: 1. Verify that the ground wire is tightly secured. 2. If lights still do not go on, call 800.879.8585 for technical support. Lights will not turn off: 1. -
Page 6: Ordering Information
ORDERING INFORMATION TS-400 Digital Time Switch 120/277VAC, 50/60Hz ASP-211 Cover plate for single-gang box ASP-422 Cover plate for double-gang box ASP-432 Cover plate for double-gang box with switch option TS-400 and cover plates are available in White (-W), Light Almond (-A), Grey (-G), Black (-B), and Ivory (-I). WARRANTY INFORMATION The WattStopper ® , Inc. warranties its products to be free of defects in materials and workmanship for a period of five years. There are no obligations or liabilities on the part of The WattStopper ® , Inc. for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation. 2800 De La Cruz Boulevard, Santa Clara, CA 95050 800.879.8585 • www.wattstopper.com 02554 r5 06/11...
