wattstopper RT-50-W Installation Instructions Manual

Please read all instructions before installing
SPECIFICATIONS
Voltage ....................................................................... 120VAC, 60HZ
Load (Single Pole Circuit)
Incandescent or fluorescent lamp ........................... 0 – 600 Watt
Fan Motor ............................................................................1/6HP
Time Delay...............................................1, 5, 10, 20, 30, 60 minutes
Environment ..............................................................Indoor use only
Operating Temperature ..............................32° to 131°F (0° to 55°C)
Humidity ....................................................95% RH, non-condensing
Tools Needed
Insulated Screwdriver
Wire Strippers

DESCRIPTION AND OPERATION

The RT-50 is a time switch that turns OFF the connected light or fan when the
selected time expires. The light behind the ON/OFF button illuminates while the
switch is OFF. One of the time button indicators is always lit to indicate the last
used timer.
Manual ON
Turn ON the connected light or fan by pressing the desired time button, or the
ON/OFF button. If you press the ON/OFF button, it activates the timer that was
last used.
Manual OFF
While a timer is active, you can press the ON/OFF button to turn OFF the
connected light or fan without delay.
Changing the selected time
If you decide that you need more or less time than you originally selected, restart
the time switch by pressing the button that matches the amount of time you think
you'll need.
Call 800.879.8585 for Technical Support

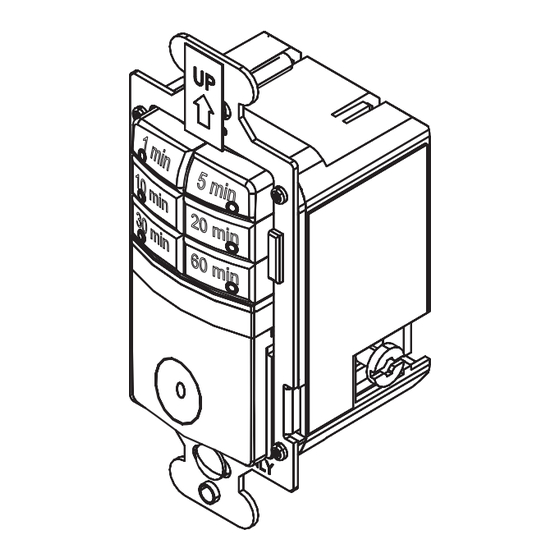

Time Switch
7- Button Preset
Santa Clara, CA 95050
RT- 50
