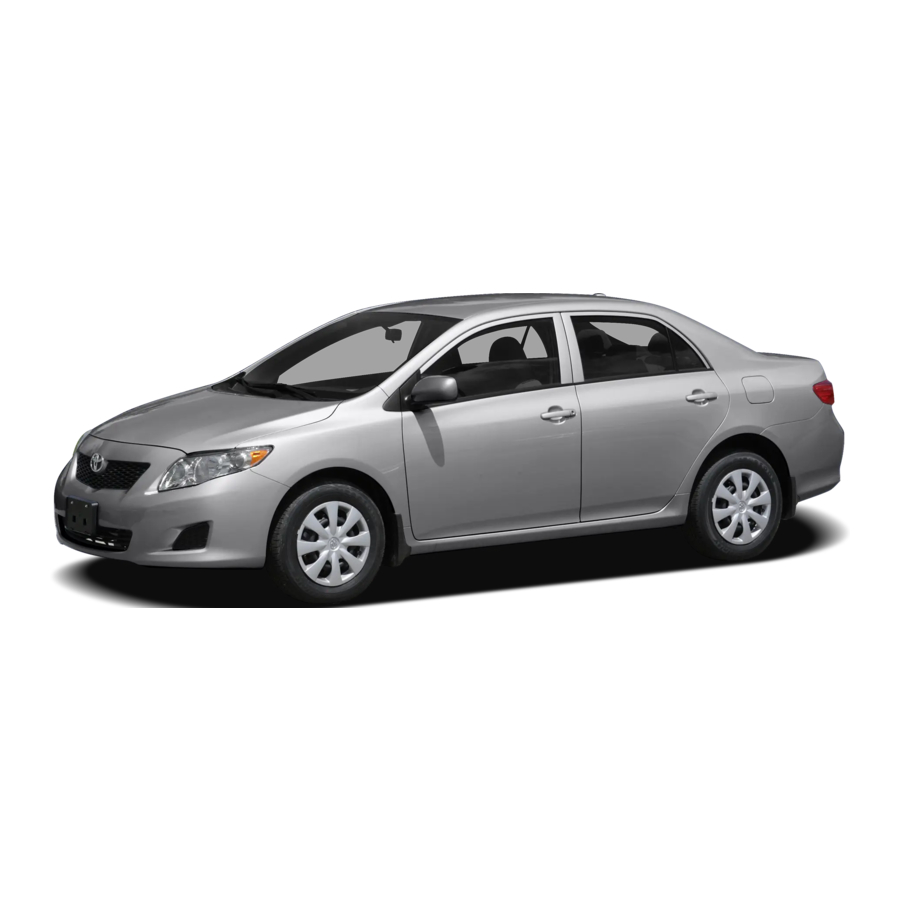

Toyota COROLLA 2010 Manual

INTRODUCTION

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle's main equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for the Owner's Manual located in your vehicle's glove box. We strongly encourage you to review the Owner's Manual and supplementary manuals so you will have a better understanding of your vehicle's capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Corolla.

A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla operations. Every Corolla owner should review the Owner's Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in color throughout the Owner's Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.

All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

OVERVIEW

Instrument panel

1. Steering wheel audio controls ^1,2
2. Voice command button ¹
3. Telephone controls ¹
4. Ignition switch (mechanical key) ¹
5. Cruise control ¹
6. SC/TRAC OFF switch
7. Power rearview mirror control
8. Auxiliary storage
9. Headlight, turn signal and front fog light¹ controls
10. Wiper and washer controls
11. Emergency flasher button
12. Audio system ²
13. Air Conditioning controls
14. Outside rearview mirror ¹ /Rear window defogger button
15. Front passenger seatbelt reminder light
16. "AIR BAG ON" and "AIR BAG OFF" indicator
17. Engine immobilizer indicator
18. AUX adapter
19. Tire Pressure Monitoring (warning) System reset
20. Tilt and telescopic steering control
21. Hood lock release lever

¹ If equipped

² Vehicles with navigation system: for details, refer to the "Navigation System Owner's Manual."

Instrument cluster

1. Service indicator and reminder
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Trip meter reset/Instrument panel light control
6. Odometer and two trip meters
7. Automatic Transmission shift range display (if equipped)
8. Multi- information display
9. Display button
10. Engine coolant temperature

Indicator symbols

For details, refer to "Indicators and warning lights," Section 2- 2, 2010 Owner's Manual.

Brake system warning¹

Driver seatbelt reminder (alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder (alarm will sound if speed is over 12 mph)

Charging system warning¹

AIR BAG ON and AIR BAG OFF indicator¹

Electric power steering warning¹

Malfunction/Check Engine indicator¹

Low fuel level warning

Open door warning

SRS Airbag warning¹

Low Tire Pressure Warning¹

Headlight low/high beam indicator

Turn signal indicator

Fog light indicator

Slip indicator¹

Cruise control indicator

Anti- lock Brake System warning¹

Vehicle Stability Control OFF indicator¹

Low engine oil pressure warning¹

Engine oil replacement reminder¹

¹ If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

Keyless entry (if equipped)

Locking operation

Unlocking operation

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

Trunk lid operation

Panic button

Fuel tank door release and cap

Hood release

Engine maintenance

4 cylinder (2AZ- FE) engine

4 cylinder (2ZR- FE) engine

1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil level dipstick
4. Windshield washer fluid tank

Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the "Owner's Warranty Information Booklet," "Scheduled Maintenance Guide" or "Owner's Manual Supplement."

FEATURES/OPERATIONS

Automatic Transmission (if equipped)

Standard type

Multi- mode type

* The ignition switch must be "ON" and the brake pedal depressed to shift from Park.

"S" (Sequential) mode
Shift the shift lever to "S" position from "D" position.

Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the "D" position.

Parking brake

Auto lock functions (if equipped)

Automatic door locks can be programmed to operate in two different modes, or turned OFF.

• Doors lock when shifting from Park.
• Doors lock when the vehicle speed is approximately 12 mph or higher.
• Doors unlock when shifting into Park.
• Doors unlock when the driver's door is opened within 10 seconds after setting the engine switch or "ENGINE START STOP" switch OFF.

Refer to the Owner's Manual for more details.

Seat adjustments- Front

Manual seat

1. Position (forward/backward)
2. Height crank (driver side only)
3. Seatback angle

Seat adjustments- Rear

Seats- Head restraints

Windshield wipers & washers

Windows- Power (if equipped)

Automatic operation (driver side only)
Push the switch completely down and release to fully open. To stop window midway, lightly push the switch in the opposite direction.

Window lock switch
Deactivates all passenger windows. Driver's window remains operable.

Lights & turn signals

Headlights

Daytime Running Light system (DRL)
Headlights turn on automatically upon starting engine. The brightness of the headlights will automatically change depending on the darkness of the surroundings.

Front fog lights (if equipped)

Turn signals

Audio

CD PLAYER

To scan tracks on a disc Push and hold "SCAN." Push again to hold selection.

CD changer (Type 2)

• To load one disc Push "LOAD" and insert one disc.
• To load multiple discs Push and hold "LOAD" until you hear a beep. Insert one disc. Shutter will close and then re- open for next disc.

To select a file (MP3/WMA only) Turn "TUNE. FILE."

RADIO

To preset stations Tune in the desired station and hold down a preset button (1-6) until you hear a beep. Push desired preset button (1-6) to select.

To scan stations Push and hold "SCAN" to scan preset stations. Push again to hold selection.

AUX audio jack

By inserting a mini plug into the AUX audio jack, you can listen to music from a portable audio device through the vehicle's speaker system while in AUX mode.

Steering wheel switches (if equipped)

1. ""
   • In radio mode Push to select a preset station; push and hold to seek the next strong station.
   • In CD mode Push to skip up or down to next/previous track.
2. "MODE"
   Push to turn audio ON and to select an audio mode. Push and hold to turn the audio system OFF.

Air Conditioning/Heating

1. Airflow vent
   In "" or "" mode, use fresh air ("" indicator OFF) to reduce window fogging.
2. Fan speed
3. Temperature selector
4. Air Conditioning ON/OFF
5. Use for quick cooling. MAX A/C changes air intake to recirculate.
   It is not possible to change intake to fresh, or to turn A/C OFF in this mode.
6. Outside rearview mirror/Rear window defogger
7. Fresh or recirculated cabin air

Power outlets

Front console (if equipped)

Center console

Designed for 12V car accessories.
The engine switch must be in the "ACC" or "ON" position.

Cruise control (if equipped)

Turning system ON/OFF

Functions

¹ The set speed may also be cancelled by depressing the brake pedal.

² The set speed may be resumed once vehicle speed exceeds 25 mph.

Multi-information display

Push the display button to change information in the following:

1. Clock
2. Outside temperature
3. Current gas mileage
4. Average gas mileage*
5. Miles left on remaining fuel
6. Average vehicle speed from engine start*
7. Running time from engine start*

* Push and hold display button to reset.

Telephone controls (Bluetooth^®) (if equipped)

Bluetooth ® technology allows dialing or receive calls without taking hands from the steering wheel or using a cable to connect the compatible telephone and the system.

Refer to the Owner's Manual for more details.

Clock

1. Push and hold the display button to set the clock.
2. While flashing, press button repeatedly to adjust minutes.
3. Wait five seconds to adjust the hour.
4. Wait another five seconds for process to complete.

Moonroof (if equipped)

Sliding operation

Push once to open partway; again to open completely.

Tilting operation

Tilt and telescopic steering wheel

Note: Do not attempt to adjust while the vehicle is in motion.

Door locks-Power (if equipped)

Light control-Instrument panel

Cup holders

Auxiliary storage

Instrument panel

Overhead console

SAFETY AND EMERGENCY FEATURES

Seatbelts

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely.

To find more information about seatbelts, and how to install a child restraint system, refer to the Owner's Manual.

Seatbelts-Shoulder belt adjustment

Child comfort guide

Rear seat outside position guides provide added comfort for children who have outgrown child restraints.

Tire Pressure Monitoring (warning) System

System reset initialization

1. Push and hold " SET" button until the indicator blinks three times.
2. Wait a few minutes to allow initialization to complete.

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to "ON" and press and hold the " SET" button until indicator blinks three times. Let the vehicle sit for a few minutes to allow initialization to complete.

Refer to the load label on the door jamb or the Owner's Manual for tire inflation specifications.

If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.

Note: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

Trunk-Internal release

Doors-Child safety locks

Moving the lever to "LOCK" will allow the door to be opened only from the outside.

Rear door

Spare tire & tools

Tool location

Removing the spare tire

1. Remove the luggage floor cover.

2. Remove the tool tray.

3. Loosen the center fastener that secures the spare tire.


Refer to the Owner's Manual for tire changing and jack positioning procedures.
