Toyota TUNDRA 2011 Manual

Introduction

This Quick Reference Guide is a summary of basic vehicle operations. It contains brief descriptions of fundamental operations so you can locate and use the vehicle's main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the Owner's Manual located in your vehicle's glove box. We strongly encourage you to review the Owner's Manual and supplementary manuals so you will have a better understanding of your vehicle's capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new Tundra.

warningA word about safe vehicle operations
This Quick Reference Guide is not a full description of Tundra operations. Every Tundra owner should review the Owner's Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout the Owner's Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

OVERVIEW

Instrument panel

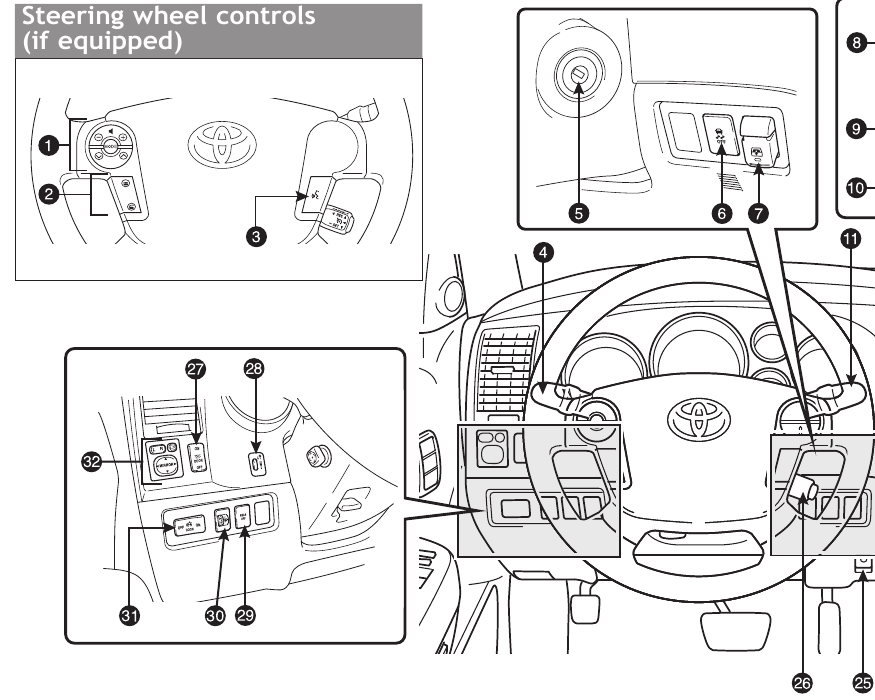

OVERVIEW - Instrument panel - Part 1

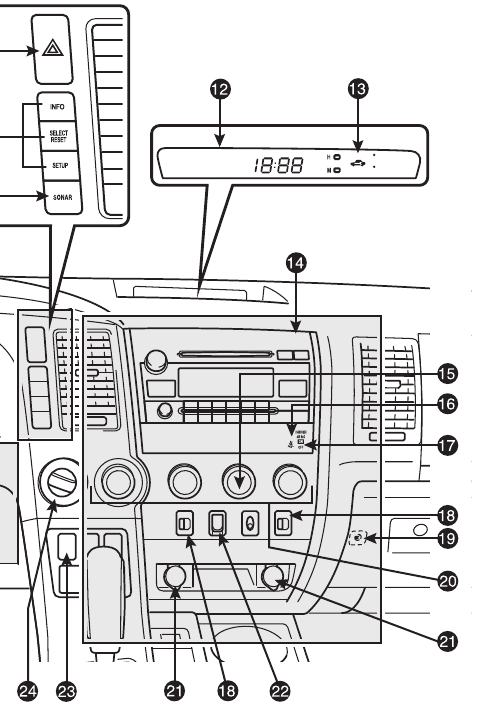

OVERVIEW - Instrument panel - Part 2

Bench seat with manual Air Conditioning System

Separate seat with manual Air Conditioning system

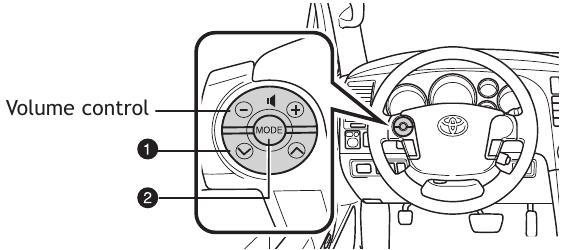

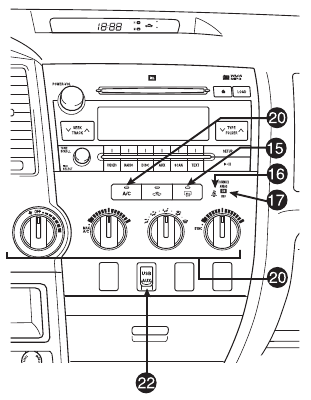

  1. Steering wheel audio controls 1

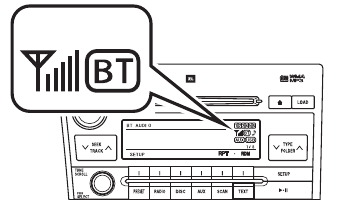

  2. Telephone controls 1
  3. Voice command button 1,2
  4. Headlight, turn signal and front fog light 1 controls
  5. Ignition switch

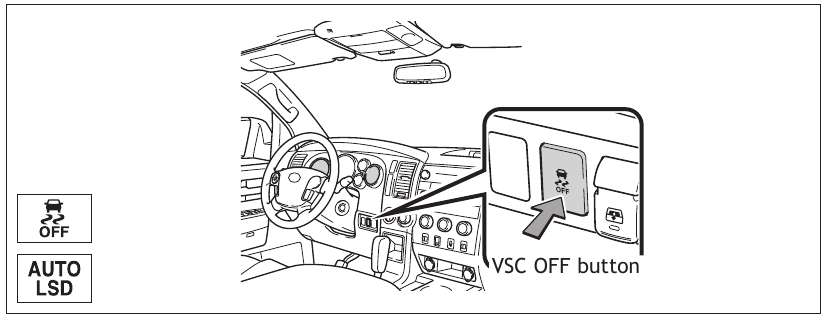

  6. VSC OFF button
  7. Power back window switch 1
  8. Emergency flasher button
  9. Multi-information display/Accessory meter control buttons 1
  10. Intuitive parking assist button 1
  11. Wiper and washer controls

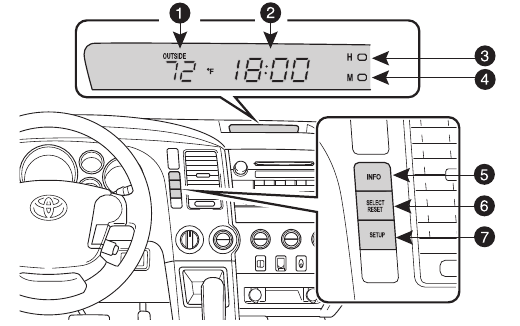

  12. Accessory meter
  13. Theft deterrent/Engine immobilizer system indicator 1

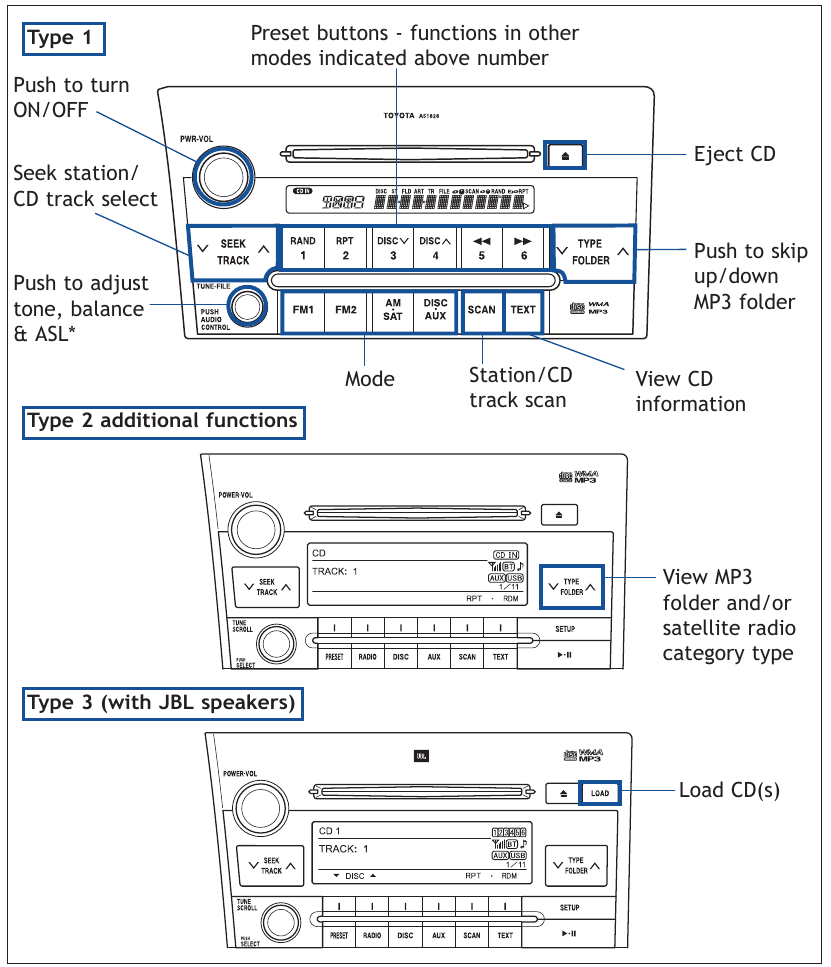

  14. Audio system or navigation system-integrated audio system 2
  15. Outside rearview mirror/Back window defogger/Windshield wiper deicer button 1
  16. Front passenger seat belt reminder
  17. Front passenger occupant classification indicator or front passenger airbag ON/OFF indicator 1
  18. Seat heater controls 1
  19. Front passenger airbag manual ON/OFF switch 1 (in glove box)

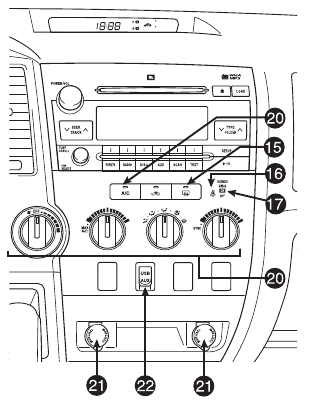

  20. Air Conditioning controls
  21. 12V DC Power outlet

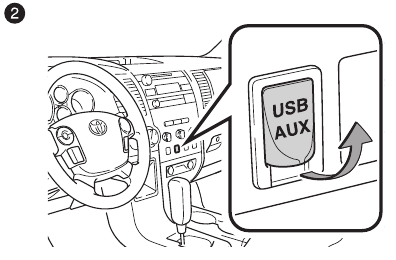

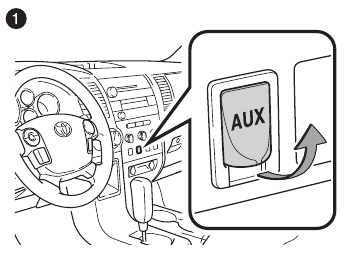

  22. AUX port/USB port 1
  23. "TOW/HAUL" button 1
  24. Two-wheel/Four-wheel drive selector

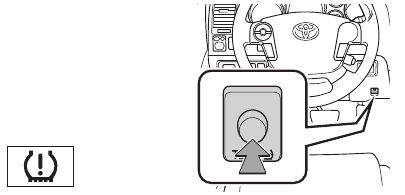

  25. Tire Pressure Monitoring (warning) System reset

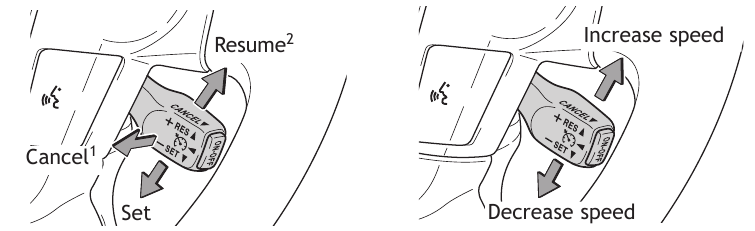

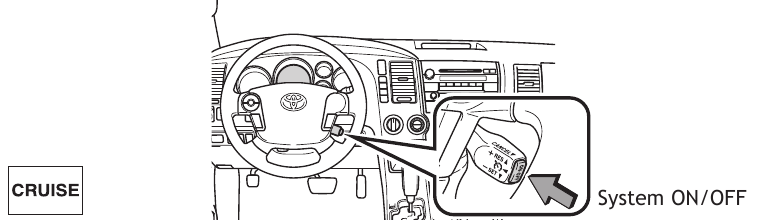

  26. Cruise control 1
  27. Interior light/Personal light main switch
  28. Instrument panel light control
  29. "RSCA OFF" switch 1
  30. Headlight leveling dial 1
  31. Cargo lamp switch P
  32. ower rearview mirror controls 1

1 If equipped
2 For vehicles with a navigation system, refer to the "Navigation System Owner's Manual."

Instrument cluster

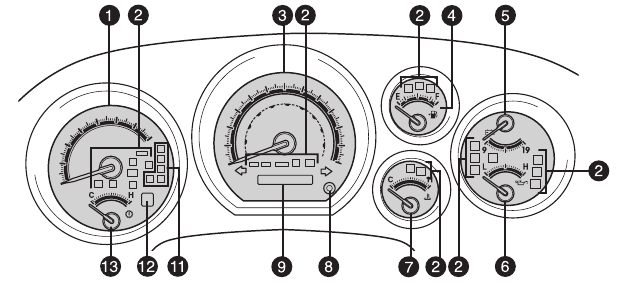

Without multi-information display
Instrument cluster - Without multi-information display

With multi-information display
Instrument cluster - With multi-information display

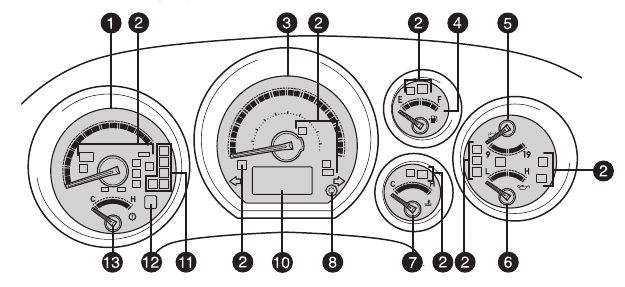

  1. Tachometer (if equipped)
  2. Service indicator and reminder
  3. Speedometer
  4. Fuel gauge
  5. Voltmeter (if equipped)
  6. Oil pressure gauge (if equipped)
  7. Engine coolant temperature
  8. Trip meter reset knob
  9. Odometer and two trip meters
  10. Multi-information display
  11. Automatic Transmission shift position indicator
  12. Automatic Transmission shift range display
  13. Automatic Transmission fluid temperature gauge (if equipped)

Indicator symbols

For details, refer to "Indicators and warning lights".

Brake system warning 1
Driver/Front passenger seat belt reminder (alarm will sound if speed is over 12 mph)
Charging system warning 1
Front passenger occupant classification or front passenger airbag ON/OFF indicator
Low engine oil pressure warning1
Malfunction/Check Engine indicator 1
Engine oil replacement reminder 1
Low fuel level warning
Open door warning
Airbag SRS warning 1
Master warning
Automatic Transmission fluid temperature warning 1
Low Tire Pressure Warning 1
Low windshield washer fluid level warning 1
Theft deterrent/Engine immobilizer system indicator
Roll Sensing Curtain Airbags OFF indicator 1
Headlight low/high beam indicator
Turn signal indicator
High/Low speed four-wheel drive indicator
Slip indicator 1
Vehicle Stability Control OFF indicator1
TOW/HAUL mode indicator 1
AUTO Limited Slip Differential indicator1
Cruise control indicator
Anti-lock Brake System warning 1
Power steering warning light1
Traction Control OFF indicator

1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer.

Keyless entry

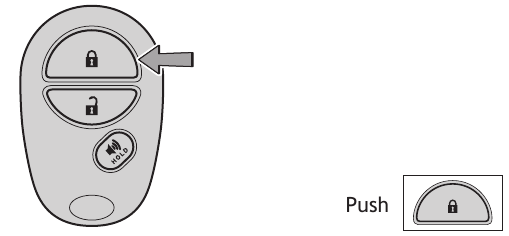

Locking operation
Locking operation

Unlocking operation
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

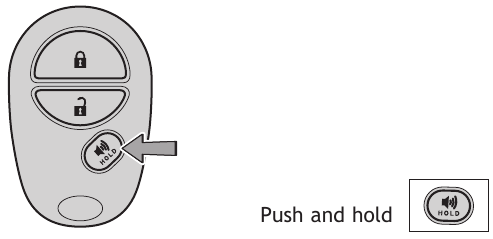

Panic button
Panic button

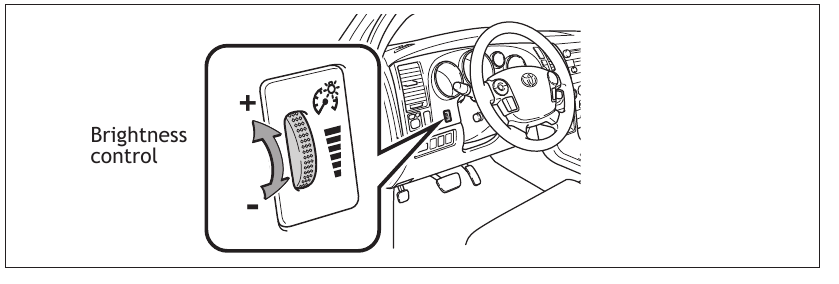

Light control-Instrument panel

Light control-Instrument panel

Fuel tank door release and cap

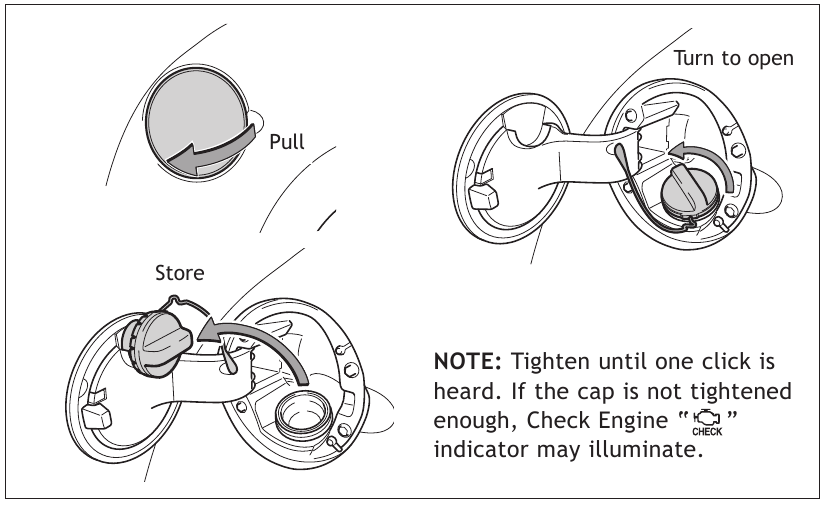

Fuel tank door release and cap

Hood release

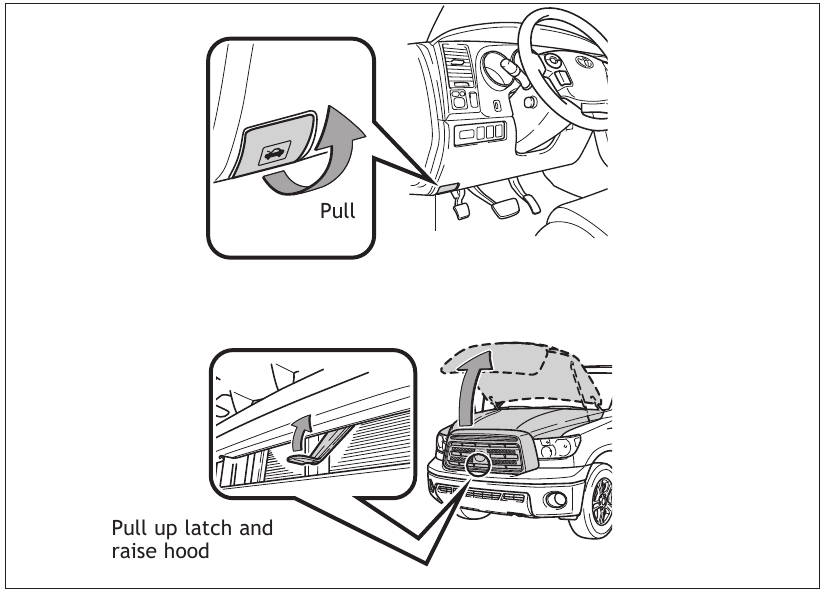

Hood release

Engine maintenance

4.0L 6 cylinder (1GR-FE) engine
Engine maintenance - Part 1

4.6L 8 cylinder (1UR-FE) and 5.7L 8 cylinder (3UR-FE/3UR-FBE) engines

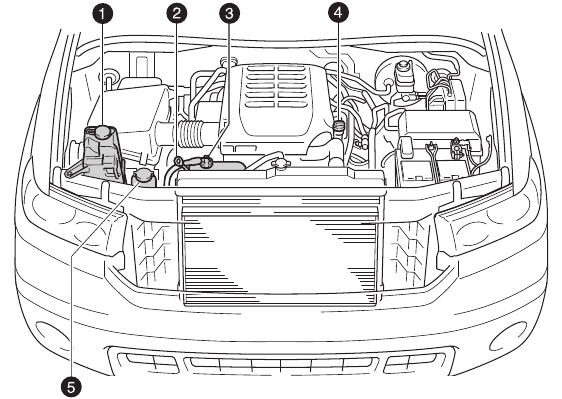

Engine maintenance - Part 2

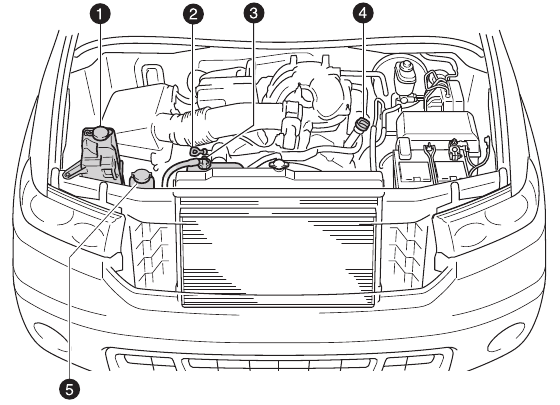

  1. Windshield washer fluid tank
  2. Engine oil level dipstick
  3. Engine coolant reservoir
  4. Engine oil filler cap
  5. Power steering fluid reservoir

NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer to the "Warranty Maintenance Guide."

FEATURES/OPERATIONS

Automatic Transmission

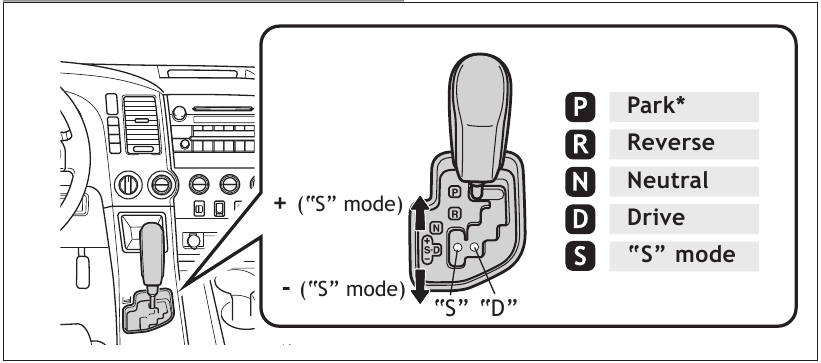

Floor shift type
Automatic Transmission - Floor shift type

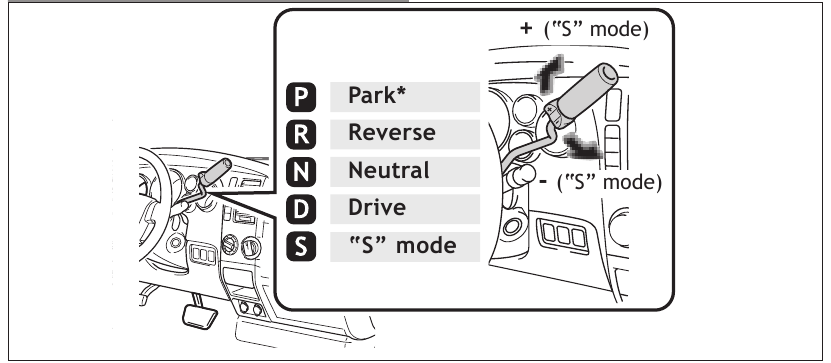

Column shift type
Automatic Transmission - Column shift type
* The engine switch must be set at "ON" and the brake pedal depressed to shift from Park.

"S" (Sequential) mode
Shift the shift lever to "S" position from "D" position.

Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)

Column shift type:
+: Upshift (push and release)
-: Downshift (push and release)

Downshifting increases power going uphill, or provides engine braking downhill. For best fuel economy during normal driving conditions, always drive with the shift lever in the "D" position.

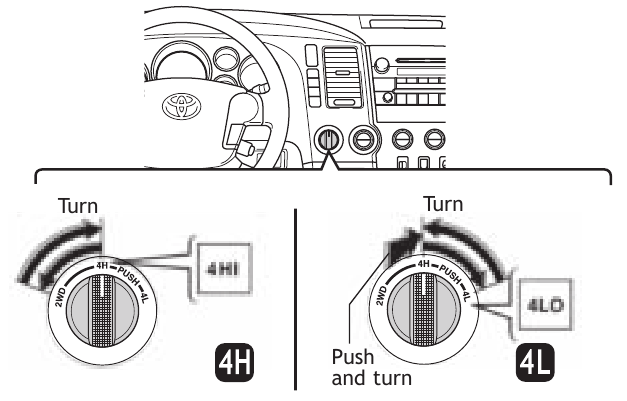

Four-wheel drive (if equipped)

Four-wheel drive (if equipped)

High speed (2WD)
High speed (4WD)
Turn to "4H" with speed below 62 mph.
Low speed (4WD)
Shift to "N" position when stopped, then push and turn to "4L."

For best fuel economy and performance under normal driving conditions, keep in "2WD" position.

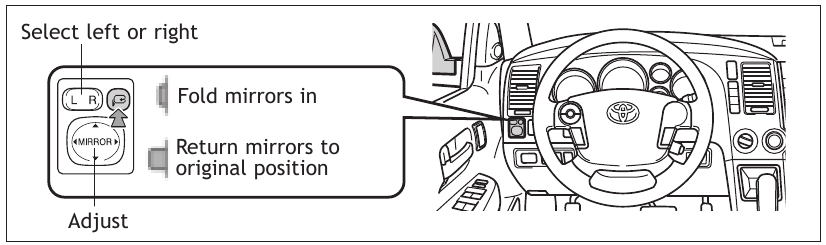

Mirrors-Power side view (if equipped)

Mirrors-Power side view (if equipped)
Key must be in the "ACC" or "ON" position.

Door locks (if equipped)

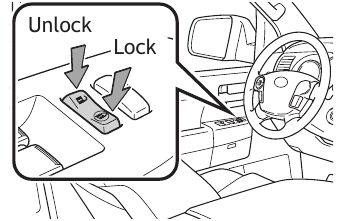

Door locks (if equipped)

Tilt and telescopic (if equipped) steering wheel

Manual
Tilt and telescopic steering wheel - Manual
Hold wheel, push lever down, set angle and length, and return lever.

Power

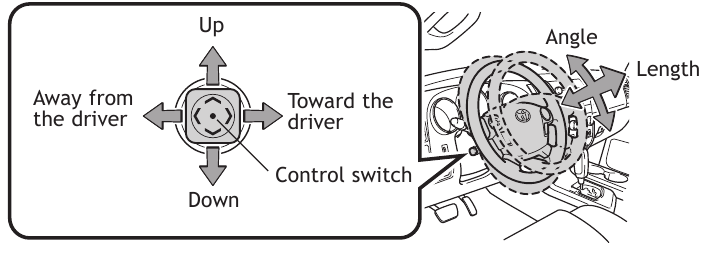

Tilt and telescopic steering wheel - Power
Push the control switch, set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.

"TOW/HAUL" switch (if equipped)

TOW/HAUL switch (if equipped)
"TOW/HAUL" mode can be used when carrying heavy loads. As fuel economy is reduced while in "TOW/HAUL" mode, deactivating when driving without a load is recommended.
Refer to the Owner's Manual for more details on this system before attempting to use it.

Moonroof (if equipped)

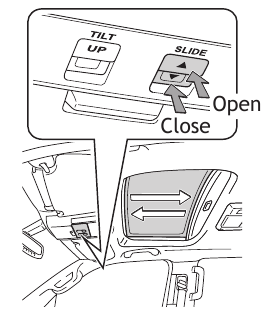

Sliding operation

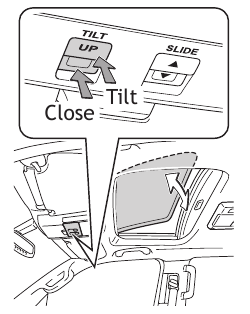

Tilting operation

Push once to open/close completely. To stop partway, press the switch lightly.

Seat adjustments-Front

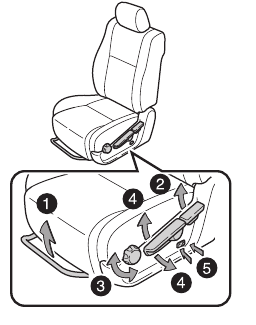

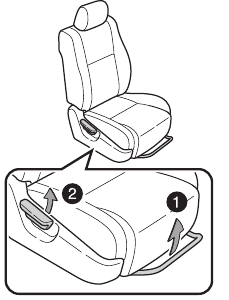

Manual seat
Separate seat

  • Regular cab model

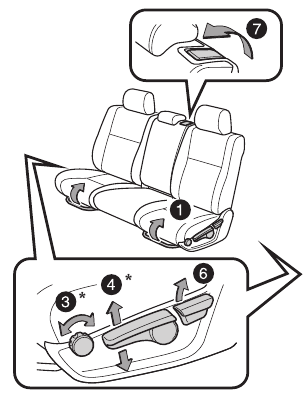

Separate seat

  • Double cab and CrewMax models

Bench seat

* Double cab and CrewMax models only

Power seat

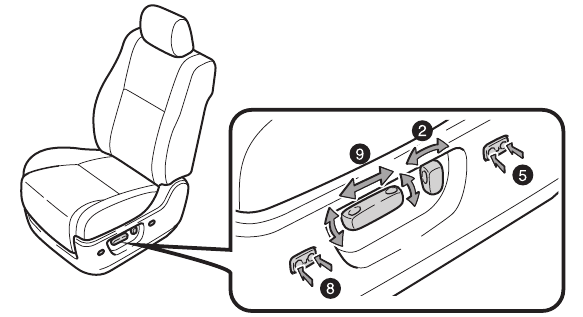

Power seat

  1. Seat position (forward/backward)
  2. Seatback angle
  3. Seat cushion angle
  4. Seat height
  5. Lumbar support (if equipped)
  6. Seatback angle (side)
  7. Seatback angle (center)
  8. Leg support (if equipped)
  9. Seat position, cushion angle and height

Seat adjustments-Rear (CrewMax models)

Seat adjustments-Rear (CrewMax models)

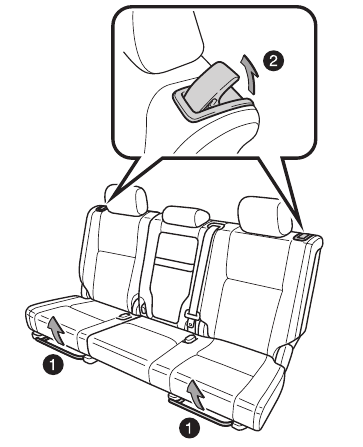

  1. Seat position (forward/backward)
  2. Seatback angle and fold

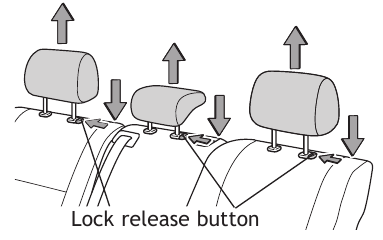

Seats-Head restraints

Front-Separate seat

Front-Bench seat
Seats-Head restraints - Front-Bench seat

Rear (CrewMax model)
Seats-Head restraints - Rear (CrewMax model)

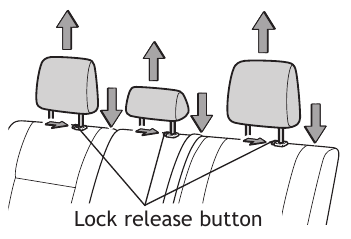

Rear (double cab model)
Seats-Head restraints - Rear (double cab model)

Seats-Folding

Front (regular cab model)

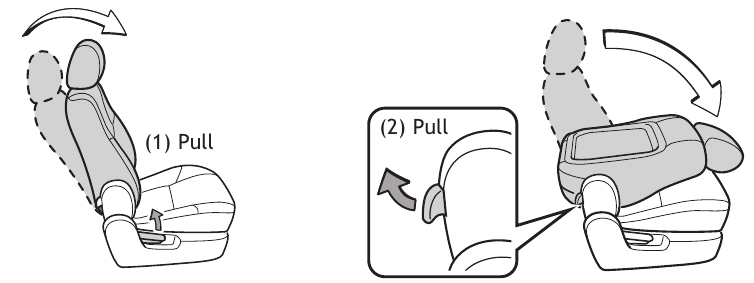

Seats-Folding - Front (regular cab model)

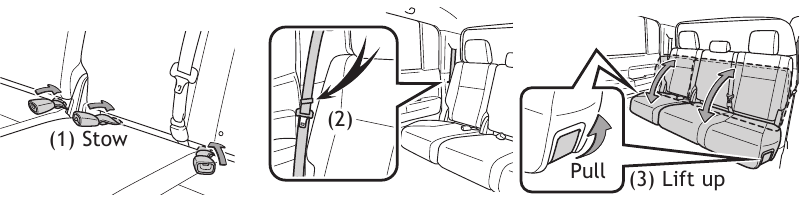

Rear (double cab model)
Seats-Folding - Rear (double cab model)

Rear (CrewMax model)
Seats-Folding - Rear (CrewMax model)

Windshield wipers & washers

With intermittent wiper
Windshield wipers & washers - With intermittent wiper
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.

Without intermittent wiper

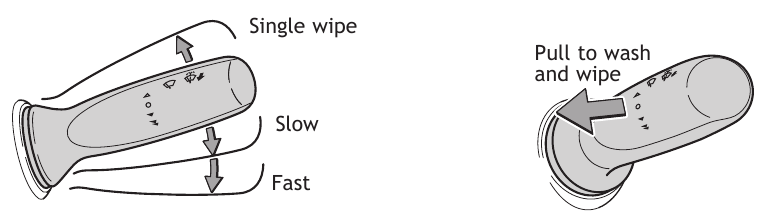

Windshield wipers & washers - Without intermittent wiper

Lights & turn signals

Headlights

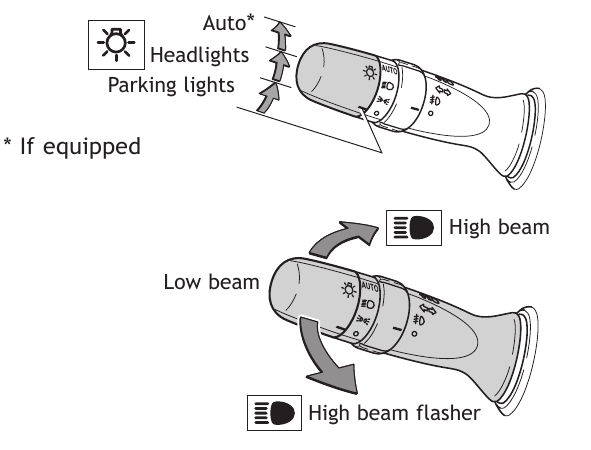

Lights & turn signals - Headlights

  • Daytime Running Light system (DRL)
    Automatically turns on the front turn signal lights upon starting engine and releasing parking brake.
  • Automatic light cut off system
    Automatically turns lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.

Front fog lights (if equipped)

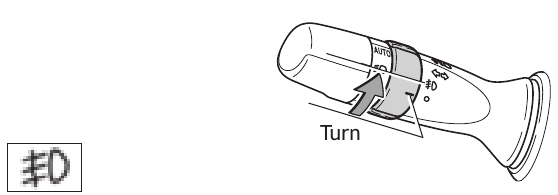

Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.

Turn signals

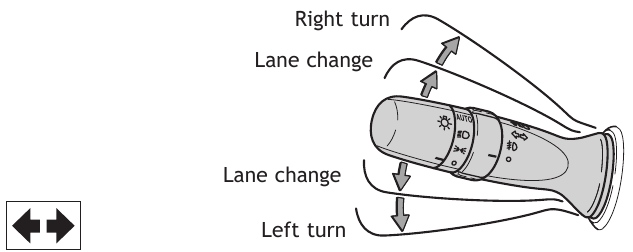

Turn signals

Power outlets-12V DC (if equipped)

Separate seats
Instrument panel

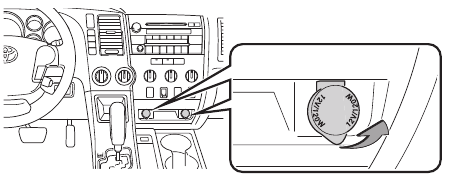

Separate seats - Instrument panel

Back of the center console box

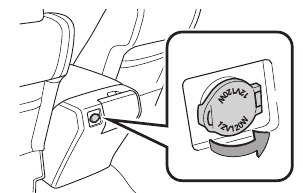

Separate seats - Back of the center console box

Inside of the center console box

Back of the center console box (CrewMax model)

Bench seat

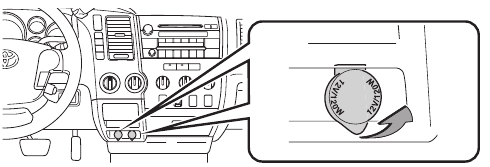

Instrument panel

Bench seat - Instrument panel

Back of the front center seat

Back of the front center seat (CrewMax model)

Key must be in the "ACC" or "ON" position to be used.

Power outlets-115V AC (if equipped)

Back of the center console box

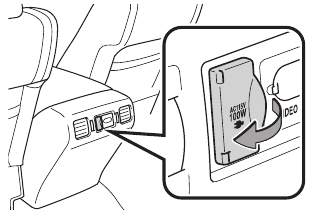

Power outlets-115V AC - Back of the center console box

Back of the front center seat
Power outlets-115V AC - Back of the front center seat

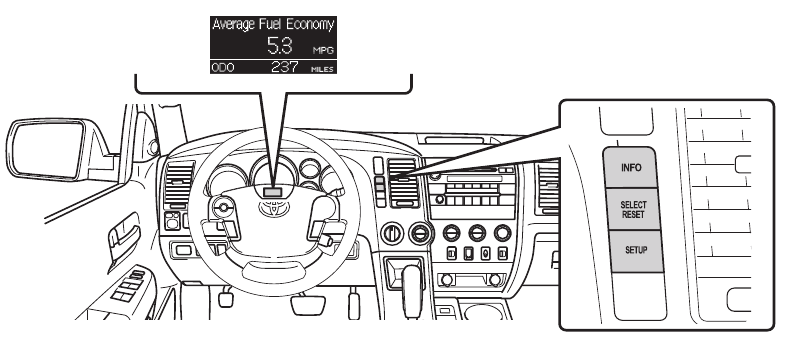

Multi-information display (if equipped)

Multi-information display (if equipped)
Push "INFO" to change information in the following:

  1. Zoom display of odometer and trip meter
  2. Average gas mileage
  3. Current gas mileage
  4. Miles left on remaining fuel
  5. Running time from engine start
  6. Average vehicle speed

Push "SETUP" to customize to the following settings:

  1. UNIT
  2. KEYLESS ENTRY FEEDBACK
  3. KEYLESS ENTRY RELOCK TIMER
  4. KEYLESS ENTRY ALL DOORS UNLOCK
  5. DOOR AUTO LOCKING
  6. DOOR AUTO UNLOCKING
  7. HEADLAMPS AUTO OFF TIMER
  8. COURTESY LAMPS OFF TIMER
  9. LANGUAGE
  10. DEFAULT SETTING

Parking brake

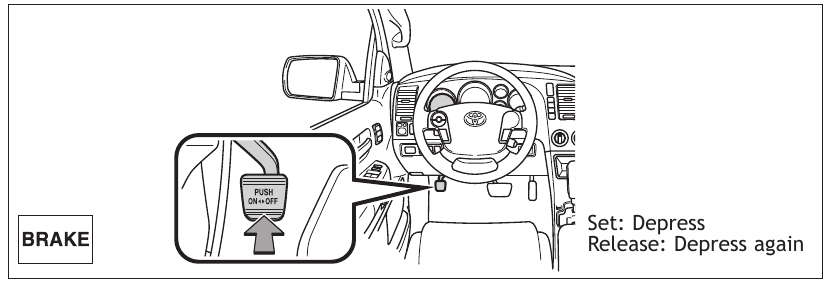

Parking brake

Windows-Power (if equipped)

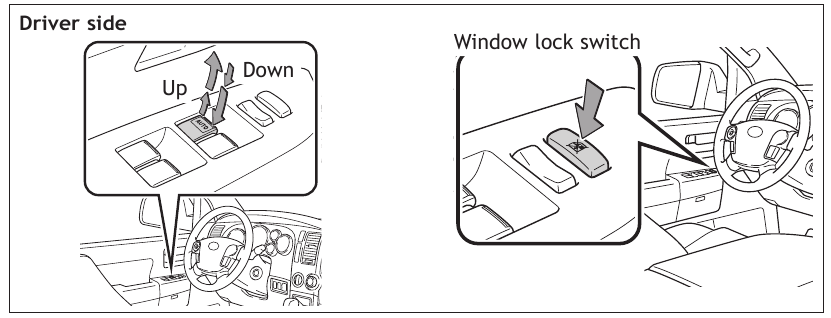

Windows-Power (if equipped)

Automatic operation (driver side only)
Push the switch completely down or pull it completely up and release to fully open or close.
* To stop window midway, lightly push the switch in the opposite direction.

Window lock switch
Deactivates all passenger windows. Driver's window remains operable.
* Not all models equipped with one-touch close function.

Window-Rear (if equipped)

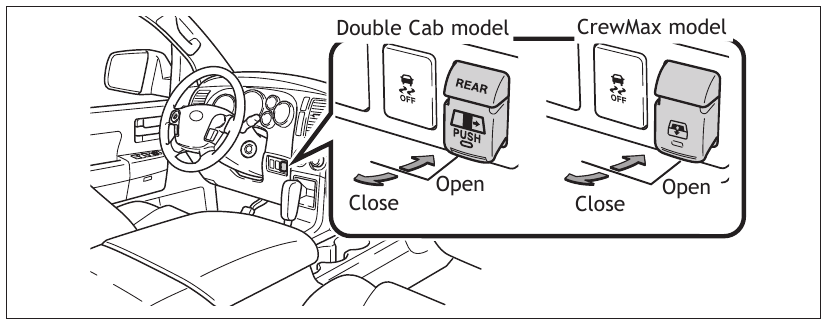

Window-Rear (if equipped)

Seat heaters and ventilators (if equipped)

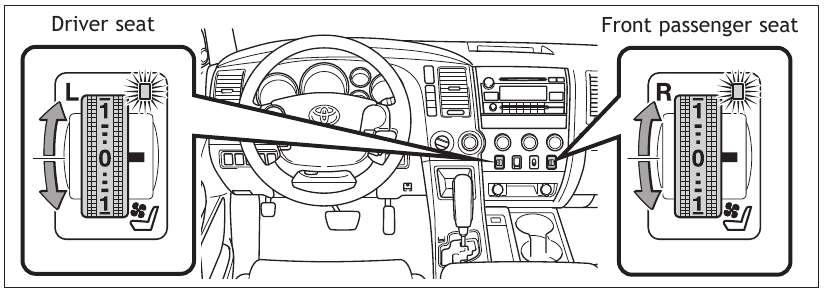

Seat heaters and ventilators (if equipped)

Air Conditioning/Heating

Automatic Air Conditioning

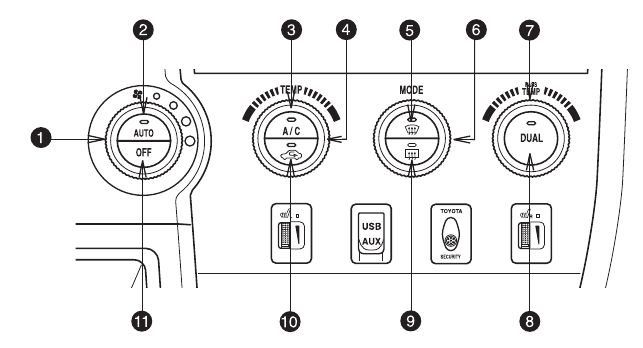

 Automatic Air Conditioning

  1. Fan speed
  2. Automatic climate control ON
    Adjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically.
  3. Air Conditioning ON/OFF
  4. Temperature selector (driver side)
  5. Windshield defogger (fresh air only)
  6. Airflow vent
    In " " mode, use fresh air (" " indicator "OFF") to reduce window fogging.
  7. Temperature selector (front passenger side)
  8. "DUAL" button
    Indicator ON: Separate temperature settings for driver and passenger.
    Indicator OFF: Synchronize temperature settings for driver and passenger.
  9. Outside rearview mirror/Back window defogger
  10. Recirculate cabin air (fresh air when OFF)
  11. Climate control OFF

Manual Air Conditioning

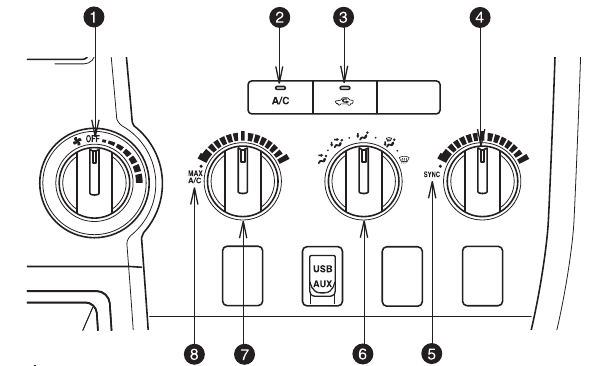

Manual Air Conditioning

  1. Fan speed
  2. Air Conditioning ON/OFF
  3. Recirculate cabin air (fresh air when OFF)
  4. Temperature selector (front passenger side)
  5. Synchronize with driver side temperature setting
  6. Airflow vent selector
    In " " or " " mode, use fresh air (" " indicator "OFF") to reduce window fogging.
  7. Temperature selector (driver side)
  8. Select for maximum cooling. Air intake will automatically be set to recirculate.


Garage door openers manufactured under license from HomeLink ® * can be programmed to operate garage doors, estate gates, security lighting, etc. Refer to "Garage door opener," in the Owner's Manual for more details. For programming assistance, contact HomeLink ® at 1-800-355-3515, or visit http://www.homelink.com.

Audio

Audio
* Automatic Sound Leveling

CD PLAYER
To scan tracks on a disc Push and hold "SCAN." Push again to hold selection.
CD changer (Type 3 only)

  • To load one disc Push "LOAD" and insert one disc.
  • To load multiple discs Push and hold "LOAD" until you hear a beep. Insert one disc. Shutter will close and then re-open for next disc.

To select a file (MP3/WMA only) Turn "TUNE. FILE" or "TUNE SCROLL."
To select a folder (MP3/WMA only) Push either side of "TYPE FOLDER."

RADIO
To preset stations Tune in the desired station and hold down a preset button (1-6 or one of ) until you hear a beep. Push desired preset button (1-6 or one of ) to select. To scan stations Push and hold "SCAN" to scan preset stations. Push again to hold selection.

Steering wheel switches (if equipped)
Steering wheel switches (if equipped)

  1. " " Use to search within the selected audio medium (radio, CD, iPod ®, etc.).
  2. "MODE"
    Push to turn audio ON and select an audio mode. Push and hold to turn audio system OFF.

AUX port/USB port

  1. AUX port
    By inserting a mini plug into the AUX port, you can listen to music from a portable audio device through the vehicle's speaker system while in AUX mode.
    AUX port/USB port - Step 1
  2. USB port (if equipped)
    By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle's speaker system while in USB mode.
    AUX port/USB port - Step 2

Rear seat entertainment system (if equipped)

Rear seat entertainment system (if equipped)

  1. Front audio system
  2. DVD player
  3. DVD screen
  4. Remote control
  5. Power outlet
  6. A/V input port

VSC OFF button

VSC OFF button
The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD functions.

Accessory meter

Accessory meter

  1. Outside temperature/Cruise information display (if equipped)
  2. Clock
  3. Hour set
  4. Minute set
  5. Change information (if equipped)
  6. "SELECT RESET" button (if equipped)
  7. "SETUP" button (if equipped) to customize unit

Refer to your Owner's Manual for complete details on this system before attempting to use it.

Cruise control (if equipped)

Turning system ON/OFF
Cruise control (if equipped) - Turning system ON/OFF

Functions
Cruise control (if equipped) - Functions

1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.

Telephone controls (Bluetooth®) (if equipped)

Audio unit
Telephone controls (Bluetooth®) - Audio unit

Microphone
Telephone controls (Bluetooth®) - Microphone

Steering wheel telephone switches
Telephone controls (Bluetooth®) - Steering wheel telephone switches
Bluetooth ® technology allows dialing or receipt of calls without taking hands from the steering wheel or using a cable to connect the telephone and the system. Refer to "Using the hands-free telephone system" in the Owner's Manual for more details, or go to Toyota.com and enter "Bluetooth" in the keyword search.Seat belts-Shoulder belt anchor

Bottle holders

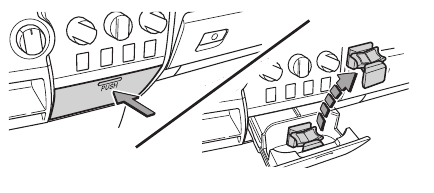

Instrument panel

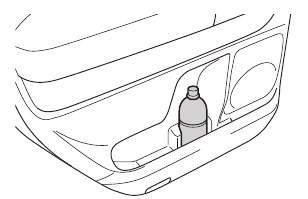

Rear door

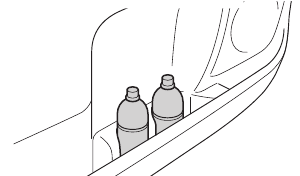

Front door

Rear door (CrewMax model)

Cup holders

Separate seat
Center console

Cup holders - Separate seat - Part 1

Back of the center console box (double cab model)

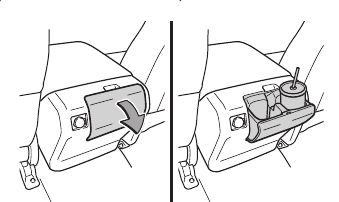

Cup holders - Separate seat - Part 2

Bench seat
Front center seat

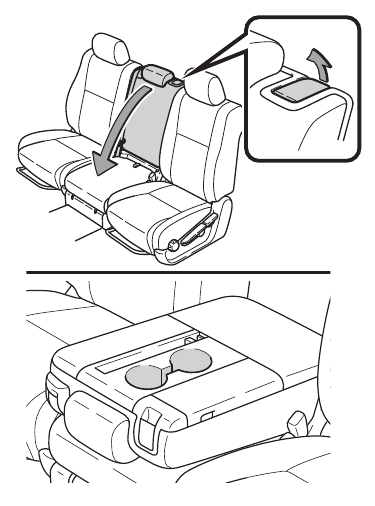

Cup holders - Bench seat - Part 1

Back of the front center seatback (double cab model)

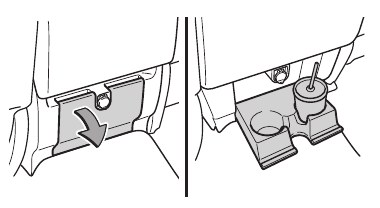

Cup holders - Bench seat - Part 2

Rear seat
CrewMax model

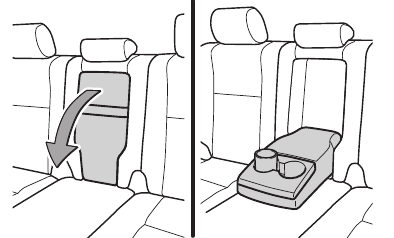

Cup holders - Rear seat

SAFETY AND EMERGENCY FEATURES

Seat belts

SAFETY AND EMERGENCY FEATURES - Seat belts

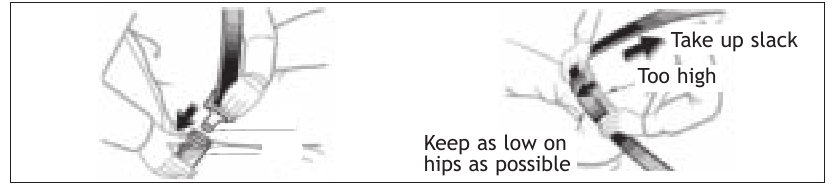

If belt is fully extended, then retracted even slightly, it cannot be re-extended beyond that point, unless fully retracted again. This feature is used to help hold child restraint systems securely. To find more information about seat belts, and how to install a child restraint system, refer to the Owner's Manual.

Seat belts-Shoulder belt anchor (CrewMax and double cab models)

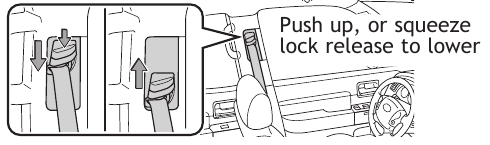

Seat belts-Shoulder belt anchor

Tire Pressure Monitoring (warning) System

System reset initialization
Tire Pressure Monitoring (warning) System

  1. Push and hold " SET" button until the indicator blinks three times.
  2. Wait several minutes to allow initialization to complete.

After adjusting tire pressures, or after tires have been rotated or replaced, turn the ignition switch to "ON" and press and hold the " SET" button until indicator blinks three times. Let the vehicle sit for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner's Manual for tire inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes in tire pressure from natural air leakage. If the system has not been initialized recently, setting the tire pressures to factory specifications should turn off the light.

Doors-Child safety locks (CrewMax and double cab models)

Rear door

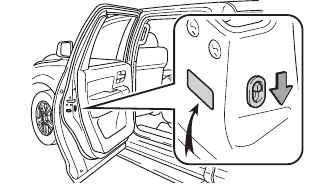

Doors-Child safety locks (CrewMax and double cab models)
Moving the lever to "LOCK" will allow the door to be opened only from the outside.

Spare tire & tools

Tool location
Regular cab models

  • behind the right seatback

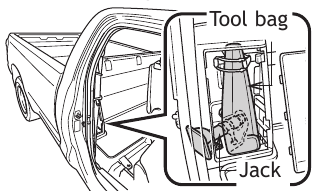

    Spare tire & tools - Regular cab models

Double cab models

  • under the right rear seats without storage box

CrewMax models

  • behind the right rear seatback

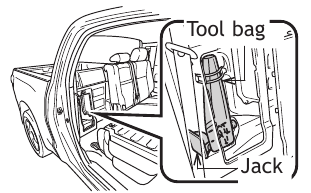

    Spare tire & tools - CrewMax models

Double cab models

  • under the right rear seats with storage box

Removing the spare tire

  1. Assemble the jack handle.

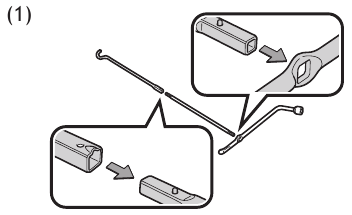

    Removing the spare tire - Step 1
  2. Insert the jack handle end into the lowering screw.
    Removing the spare tire - Step 2
  3. Turn the jack handle counterclockwise.

Refer to the Owner's Manual for tire changing and jack positioning procedures.

CUSTOMER EXPERIENCE CENTER
1-800-331-4331

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Toyota TUNDRA 2011 Manual

Advertisement

Need help?

Need help?

Do you have a question about the TUNDRA 2011 and is the answer not in the manual?

Questions and answers

Table of Contents
